P10 Series Pneumatic Caliper Brake

Maximum dynamic torque of 520 in-lbs (58.7 Nm) at 100 PSI (6.9 bar)

P20 Series Pneumatic Caliper Brake

Maximum dynamic torque of 1000 in-lbs (113 Nm) at 100 PSI (6.9 bar)

P220 Series Pneumatic Caliper Brake

Maximum dynamic torque of 2000 in-lbs (226 Nm) at 100 PSI (6.9 bar)

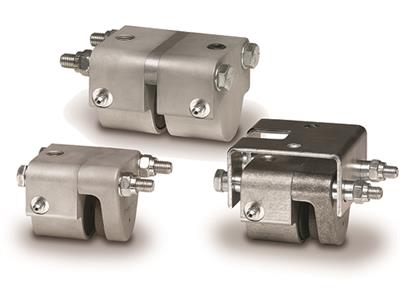

H10 Series Hydraulic Disc Brake

Maximum dynamic torque of 5000 in-lbs (565 Nm) at 1000 PSI (68.95 bar)

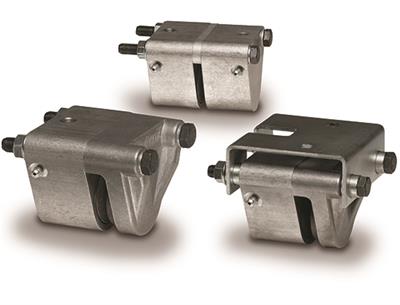

H20 Series Hydraulic Disc Brake

Maximum dynamic torque of 10,000 in-lbs (1130 Nm) at 1000 PSI (68.95 bar)

H220 Series Hydraulic Disc Brake

Maximum dynamic torque of 31,000 in-lbs (3503 Nm) at 1000 PSI (68.95 bar).

H220I Series Cast Iron Hydraulic Disc Brake

Maximum dynamic torque of 31,000 in-lbs (3503 Nm) at 1000 PSI (68.95 bar).

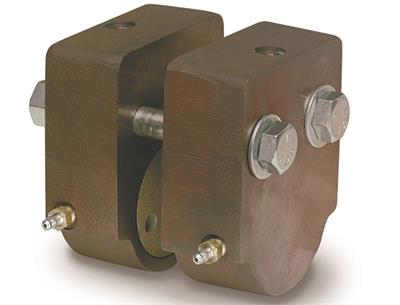

H441 Series Ductile Iron Hydraulic Disc Brake

Maximum dynamic torque of 35,000 in-lbs (3955 Nm) at 1000 PSI (68.95 bar)

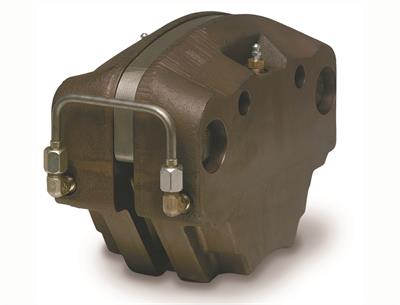

H960 Series Ductile Iron Hydraulic Disc Brake

Maximum dynamic torque of 66,000 in-lbs (7458 Nm) at 1000 PSI (68.95 bar)

H/ME20 Series Hydraulic/Mechanical Brake

Maximum dynamic torque of 10,000 in-lbs (1130 Nm) at 1000 PSI (68.95 bar)

H/ME220 Series Hydraulic/Mechanical Brake

Maximum dynamic torque of 31,000 in-lbs (3503 Nm) at 1000 PSI (68.95 bar)

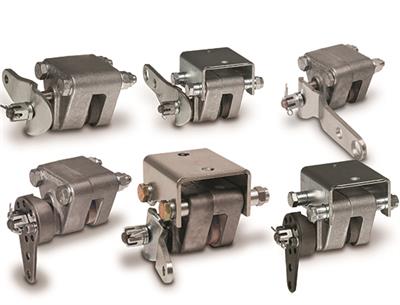

ME10 Series Mechanical Disc Brake

Maximum dynamic torque of 8930 in-lbs (1009 Nm)

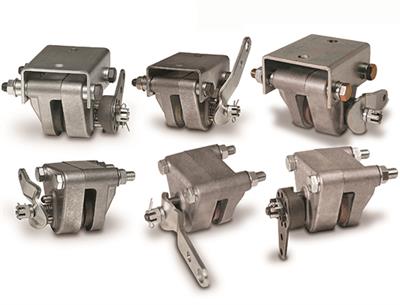

ME20 Series Mechanical Disc Brake

Maximum dynamic torque of 8500 in-lbs (960 Nm)

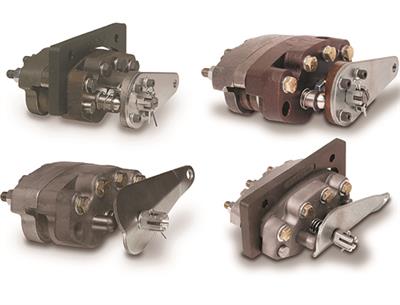

ME220 Series Mechanical Disc Brake

Maximum dynamic torque of 31,100 in-lbs (3503 Nm)

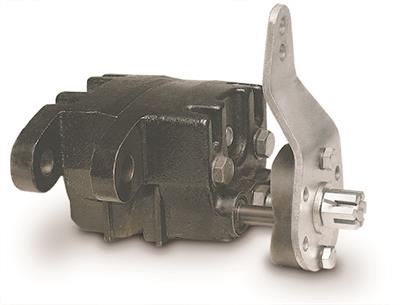

MB3 Series Mechanical Disc Brake

Maximum dynamic torque of 33,700 in-lbs (3808 Nm)

FS20 Series Spring Applied Disc Brake

Maximum static torque of 3250 in-lbs (367 Nm) (based on linings with no wear).

FS220B Series Spring Applied Disc Brake

Maximum static torque of 6750 in-lbs (763 Nm) (based on linings with no wear).

FS220C Aluminum Spring Applied Brake

Maximum static torque of 13,750 in-lbs (1554 Nm) (based on linings with no wear).

FS220BI Series Ductile Iron Spring Applied Disc Brake

Maximum static torque of 6750 in-lbs (763 Nm) (based on linings with no wear).

FS220CI Series Ductile Iron Spring Applied Disc Brake

Maximum static torque of 13,750 in-lbs (1554 Nm) (based on linings with no wear).

FS595 Series Ductile Iron Spring Applied Disc Brake

Maximum static torque of 31,000 in-lbs (3502 Nm) (based on linings with no wear).

FS595 Dual Series Ductile Iron Spring Applied Disc Brake

Maximum static torque of 62,000 in-lbs (7005 Nm) (based on linings with no wear).

Fixed Hub & Disc Assemblies

Tolomatic fixed hub and disc assemblies are available with 6-5/16-, 8-, 10-, 12-, and 16-inch discs.

Fixed Hub & Disc Assemblies with QD Bushings

Tolomatic fixed hub and disc assemblies can be used with pneumatic, hydraulic, mechanical, or spring applied disc brakes. View the product details.

Quick Disconnect Bushings & Hubs

Tolomatic fixed hub and disc assemblies with quick disconnect bushings can be used with pneumatic, hydraulic, mechanical, or spring applied disc brakes.

One-Piece Hub & Disc

Available in 6-inch disc size.

Blank Brake Discs and Discs with Bolt Circles and Pilot Holes

Available in 6-5/16-, 8- and 10-, 12- and 16-inch disc sizes.

Intensifier Kit for Caliper Disc Brakes

Increases output pressure levels to obtain brake's high torque handling capabilities.

Ventilated Disc and Brake Combinations for Tension Control

Tension control brake combinations dissipate the heat created in high tension applications, insuring efficient operation.
