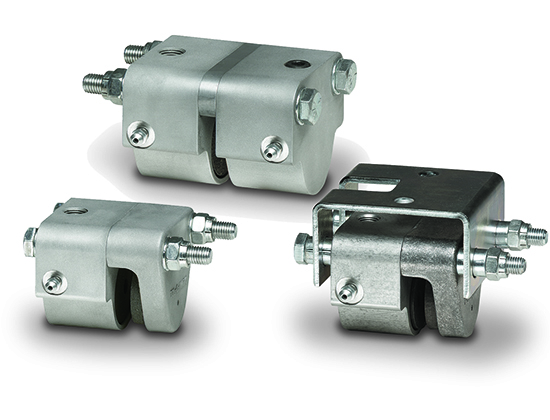

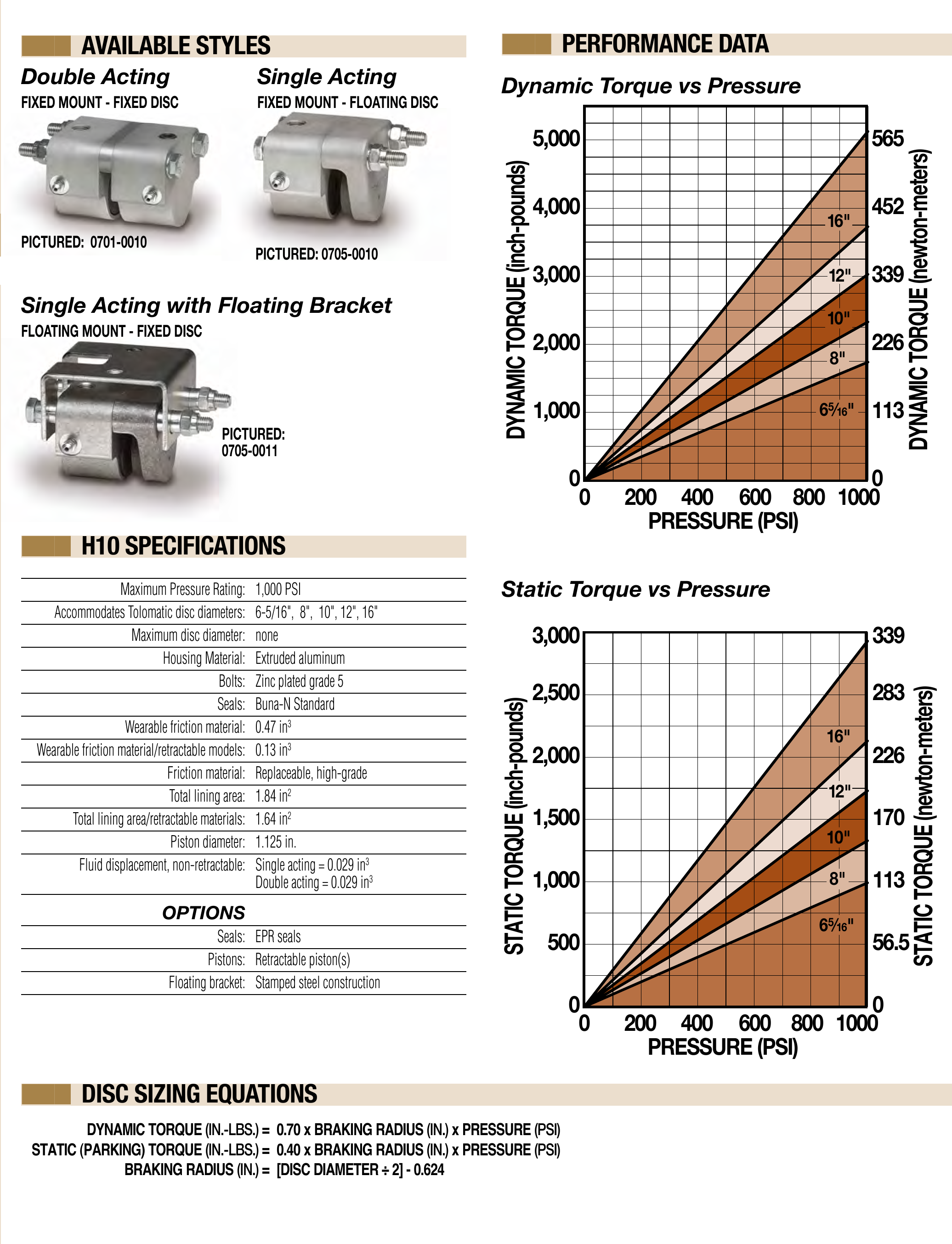

The H10 hydraulic disc brake series provides up to 5000 in-lbs (565 Nm) of torque at a maximum pressure of 1000 PSI (68.95 bar). The H10 hydraulic disc brake series offers single acting and double acting models.

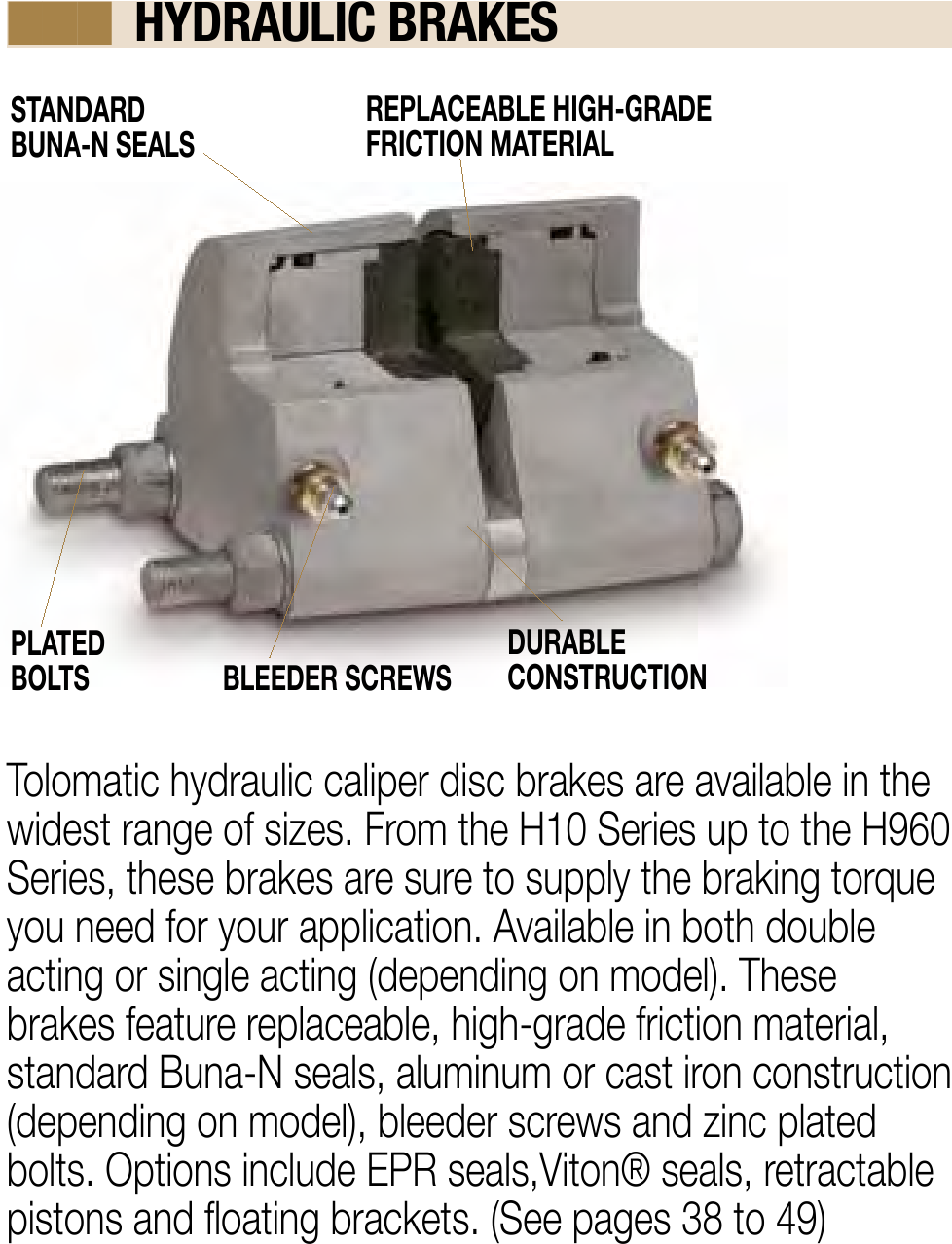

  • Durable aluminum construction
  • Replaceable high-grade friction material
  • Buna-N seals are standard with EPR and Viton® seals as optional
  • Accommodates disc diameters up to 16 inches (406 mm)
  • Other options include retractable pistons and floating bracket

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

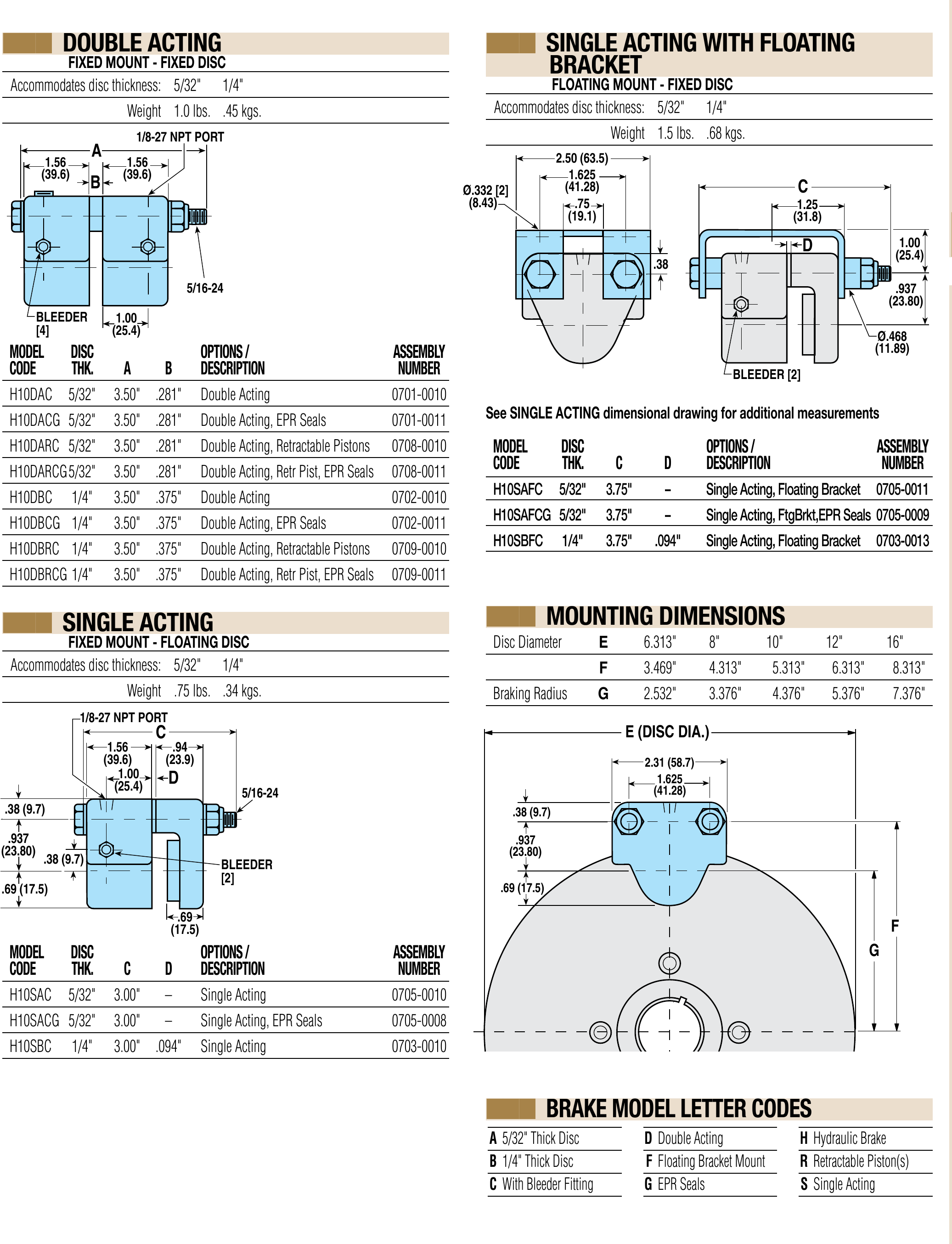

Part # Description Model CodeDisc Thickness (in)"A" (in)"B" (in)"C" (in)"D" (in) Cart
0701-0010 Double Acting H10DAC5/323.50.281----
0701-0011 Double Acting, EPR Seals H10DACG5/323.50.281----
0702-0010 Double Acting H10DBC1/43.50.375----
0702-0011 Double Acting, EPR Seals H10DBCG1/43.50.375----
0703-0010 Single Acting H10SBC1/4----30.094
0703-0013 Single Acting, Floating Bracket H10SBFC1/4----3.750.094
0705-0008 Single Acting, EPR Seals H10SACG5/32----3--
0705-0009 Single Acting, Floating Bracket, EPR Seals H10SAFCG5/32----3.75--
0705-0010 Single Acting H10SAC5/32----3--
0705-0011 Single Acting, Floating Bracket H10SAFC5/32----3.75--
0708-0010 Double Acting, Retractable Pistons H10DARC5/323.50.281----
0708-0011 Double Acting, Retr Pist, EPR Seals H10DARCG5/323.50.281----
0709-0010 Double Acting, Retractable Pistons H10DBRC1/43.50.375----
0709-0011 Double Acting, Retr Pist, EPR Seals H10DBRCG1/43.50.375----
