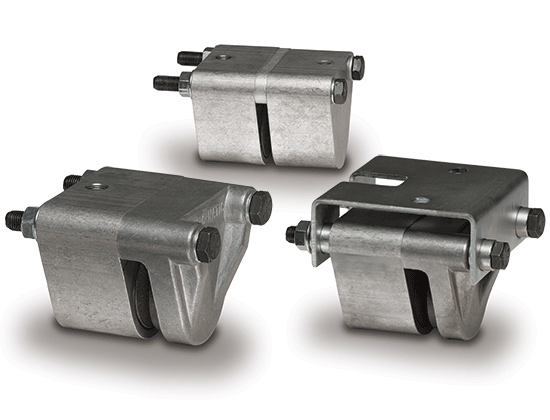

P20 Series Pneumatic Caliper Brake

The P20 pneumatic brake series provides up to 1000 in-lbs (113 Nm) of torque at a maximum pressure of 100 PSI (6.9 bar). The P20 pneumatic brake series offers single acting and double acting models.

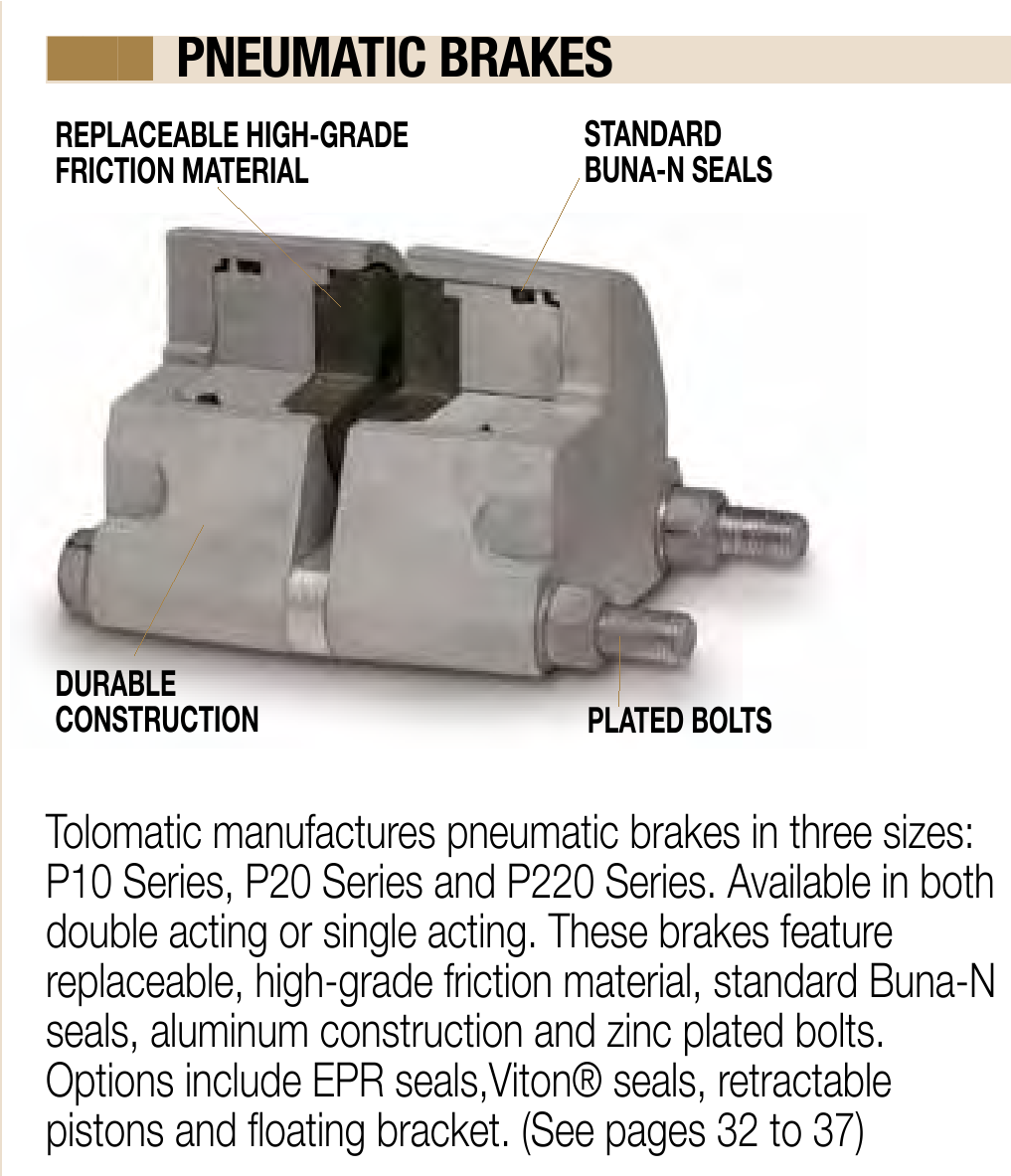

  • Durable aluminum construction
  • Replaceable high-grade friction material
  • Buna-N seals are standard with EPR and Viton® seals as optional
  • Accommodates disc diameters up to 16 inches (406 mm)
  • Other options include retractable pistons and floating bracket

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

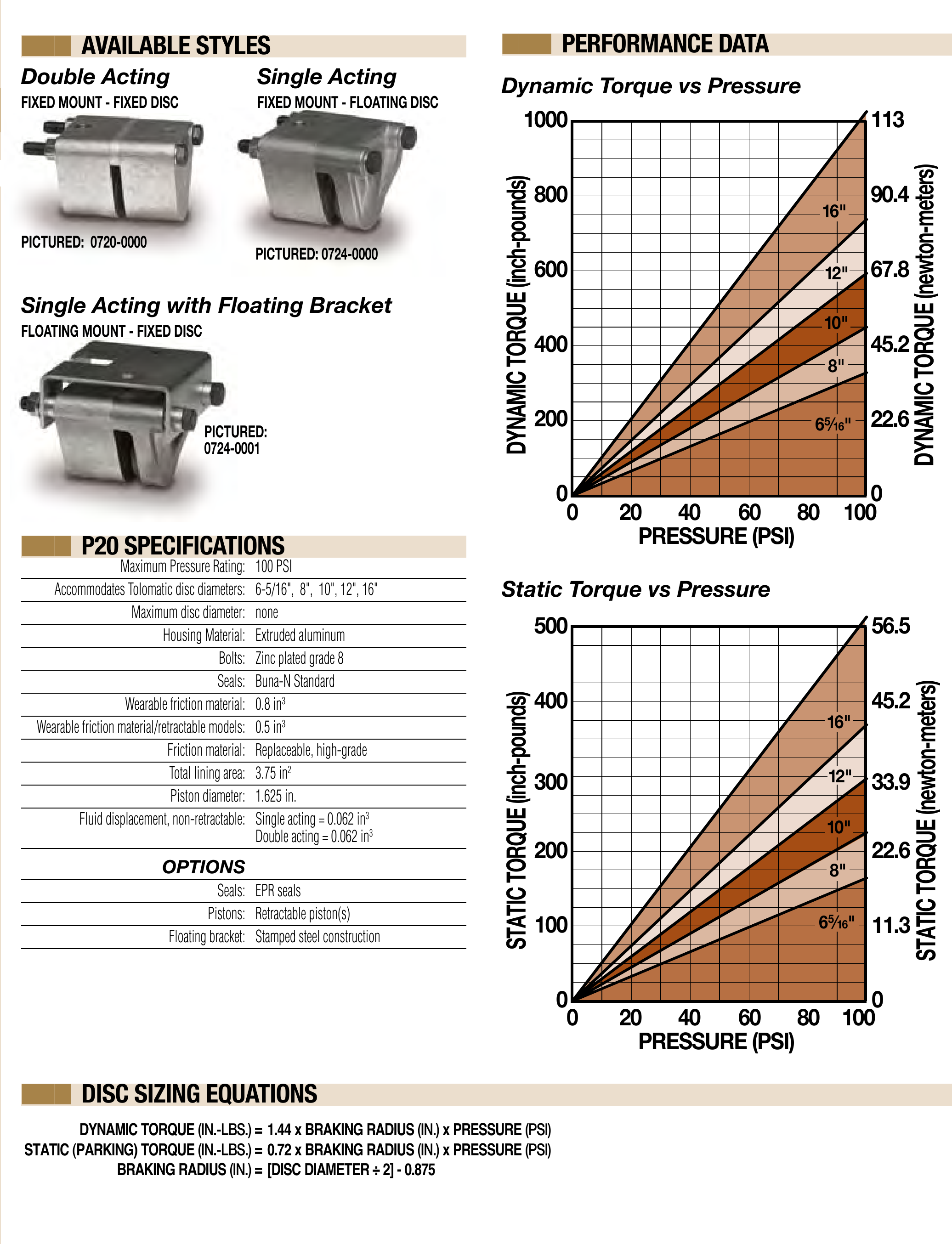

P20 Specs and Torque

View and Print

P20 Specs and Torque

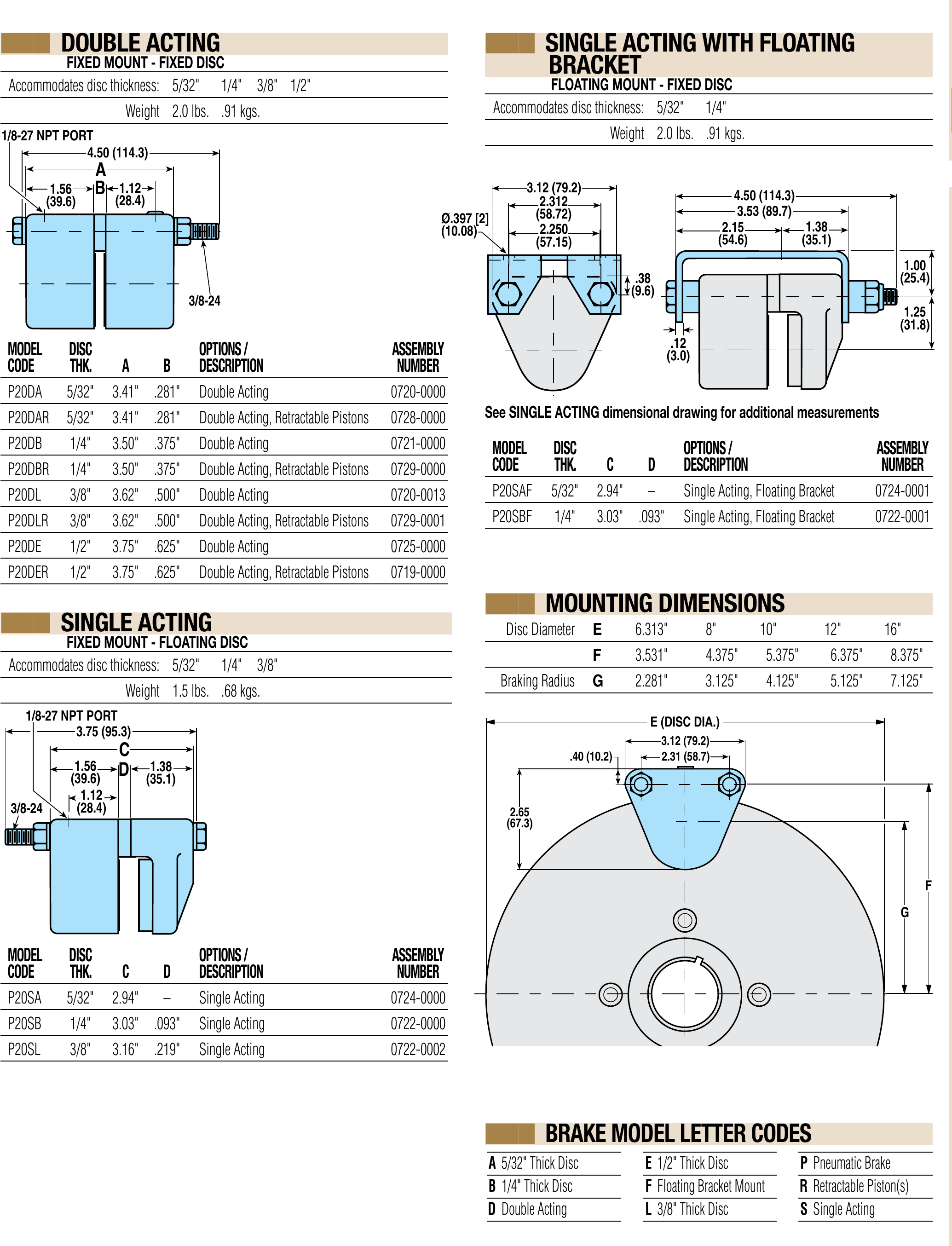

P20 Dimensions

View and Print

P20 Dimensions

Ordering

Part # Description Model CodeDisc Thickness (in)"A" (in)"B" (in)"C" (in)"D" (in) Cart
0719-0000 Double Acting, Retractable Pistons P20DER1/23.750.625----
0720-0000 Double Acting P20DA5/323.410.281----
0720-0013 Double Acting P20DL3/83.620.5----
0721-0000 Double Acting P20DB1/43.50.375----
0722-0000 Single Acting P20SB1/4----3.030.093
0722-0001 Single Acting, Floating Bracket P20SBF1/4----0.0933.03
0722-0002 Single Acting P20SL3/8----3.160.219
0724-0000 Single Acting P20SA5/32----2.94--
0724-0001 Single Acting, Floating Bracket P20SAF5/32----2.94--
0725-0000 Double Acting P20DE1/23.750.625----
0728-0000 Double Acting, Retractable Pistons P20DAR5/323.410.281----
0729-0000 Double Acting, Retractable Pistons P20DBR1/43.50.375----
0729-0001 Double Acting, Retractable Pistons P20DLR3/83.620.5----
