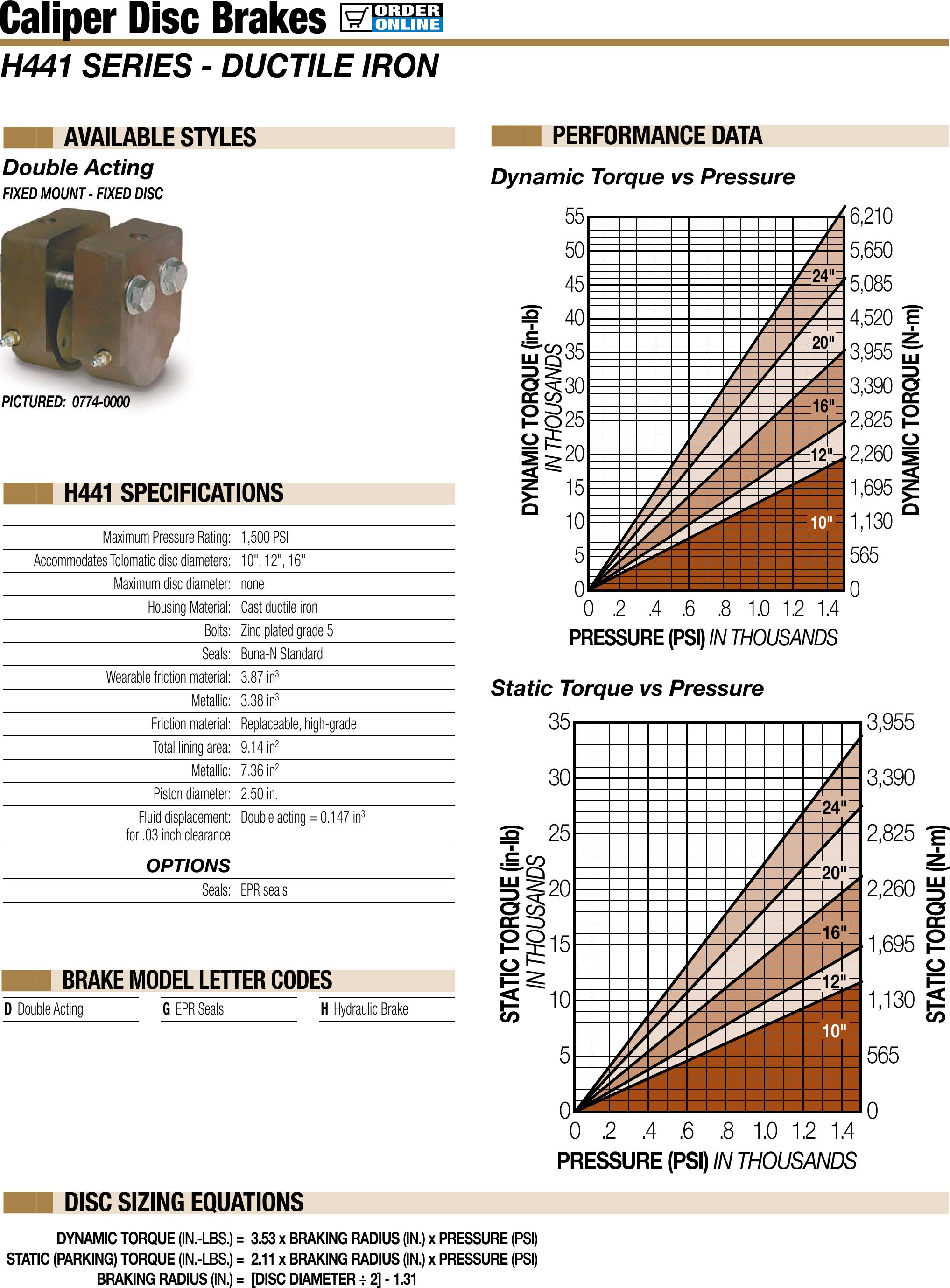

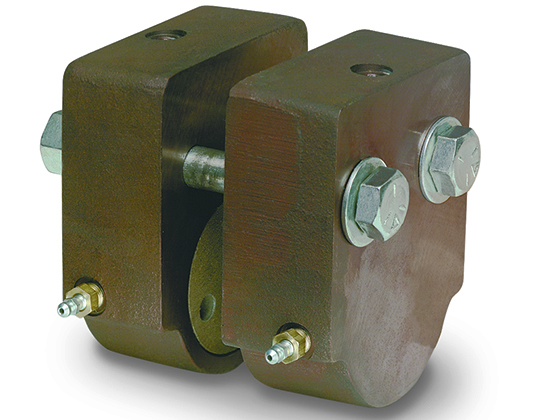

The H441 ductile iron hydraulic disc brake series provides up to 35,000 in-lbs (3955 Nm) of torque at a maximum pressure of 1000 PSI (68.95 bar). The H441 ductile iron hydraulic disc brake series offers single acting and double acting models.
Double Acting
Double Acting, EPR Seals
View and Print
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.
