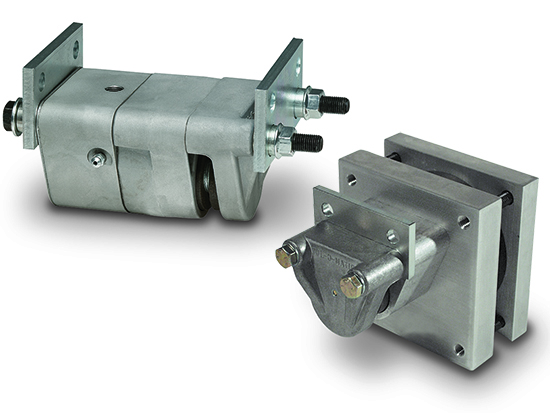

The FS20 spring applied disc brake series provides up to 3250 in-lbs (367 Nm) of static torque (based on linings with no wear). FS20 spring applied disc brakes are single acting and can be specified with either hydraulic or pneumatic disc release. Available in floating mount/fixed disc models.
Spring Applied
Spring Applied, EPR Seals
View and Print
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.
