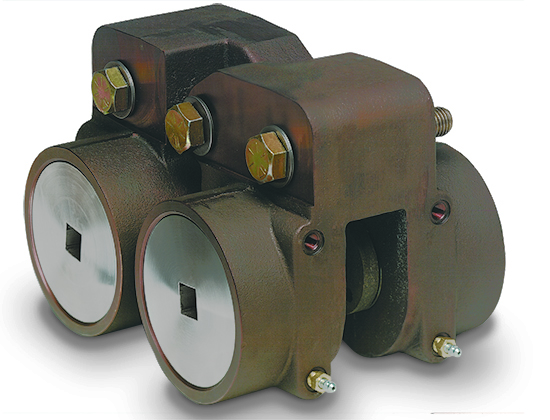

FS595 Dual Series Ductile Iron Spring Applied Disc Brake

FS595 Dual Series Ductile Iron Spring Applied Disc Brake

FS595 Dual Series Ductile Iron Spring Applied Disc Brake

The FS595 dual spring applied disc brake series doubles the torque of the FS595 series to 62,000 in-lbs (7005 Nm) of static torque (based on linings with no wear). FS595 spring applied disc brakes are double acting with floating mount and fixed disc.

  • Durable ductile iron construction
  • Replaceable high-grade friction material
  • Safety brake with high force storage capabilities
  • Minimum disc diamater of 14 inches (355 mm) and maximum disc diameter of 16 inches (406 mm)

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

Part # Description Model CodeDisc Thickness (in) Cart
0782-0003 DUAL, Double Acting, Iron, Manual Wear Compensator FS595DCIKQ-Dual1-1/2
0782-0006 DUAL, Double Acting, Iron, Manual Wear Compensator FS595DCIKL-Dual3/8
0782-0007 DUAL, Double Acting, Iron, Manual Wear Compensator FS595DCIKE-Dual1/2
0782-0008 DUAL, Double Acting, Iron, Manual Wear Compensator FS595DCIKN-Dual1
