ME220 Series Mechanical Disc Brake

ME220 Series Mechanical Disc Brake
Contact an Engineer
Order Online

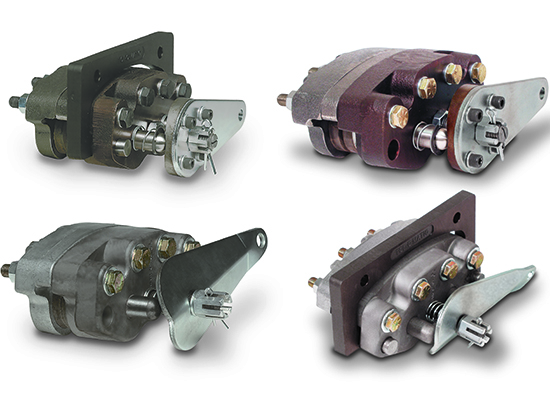

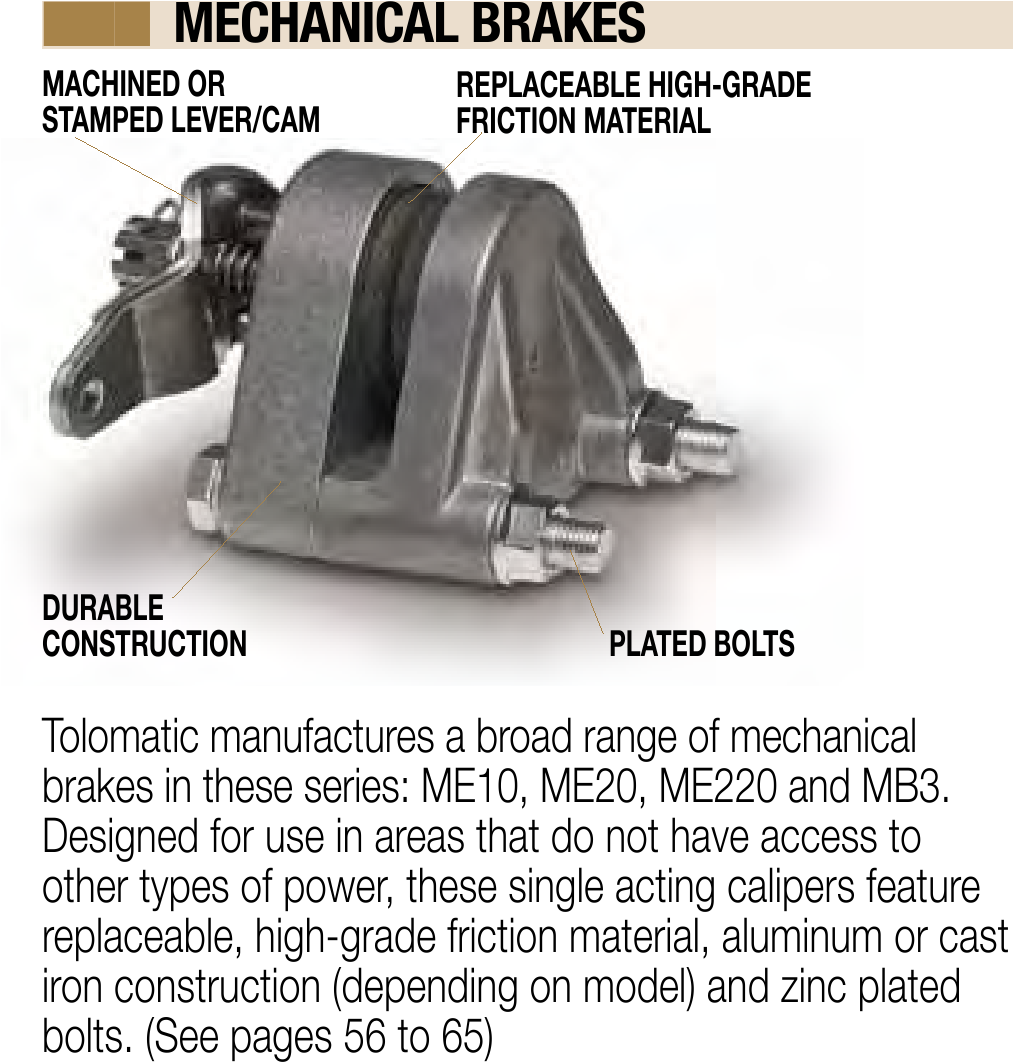

ME220 Series Mechanical Disc Brake

The ME220 mechanical disc brake series provides up to 31,100 in-lbs (3503 Nm) of torque. ME220 mechanical disc brakes are single acting and available in fixed mount and floating disc or floating mount with fixed disc models.

  • Durable aluminum or cast iron construction
  • Replaceable high-grade friction material
  • Accommodates disc diameters up to 16 inches (406 mm)
  • Optional floating bracket

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

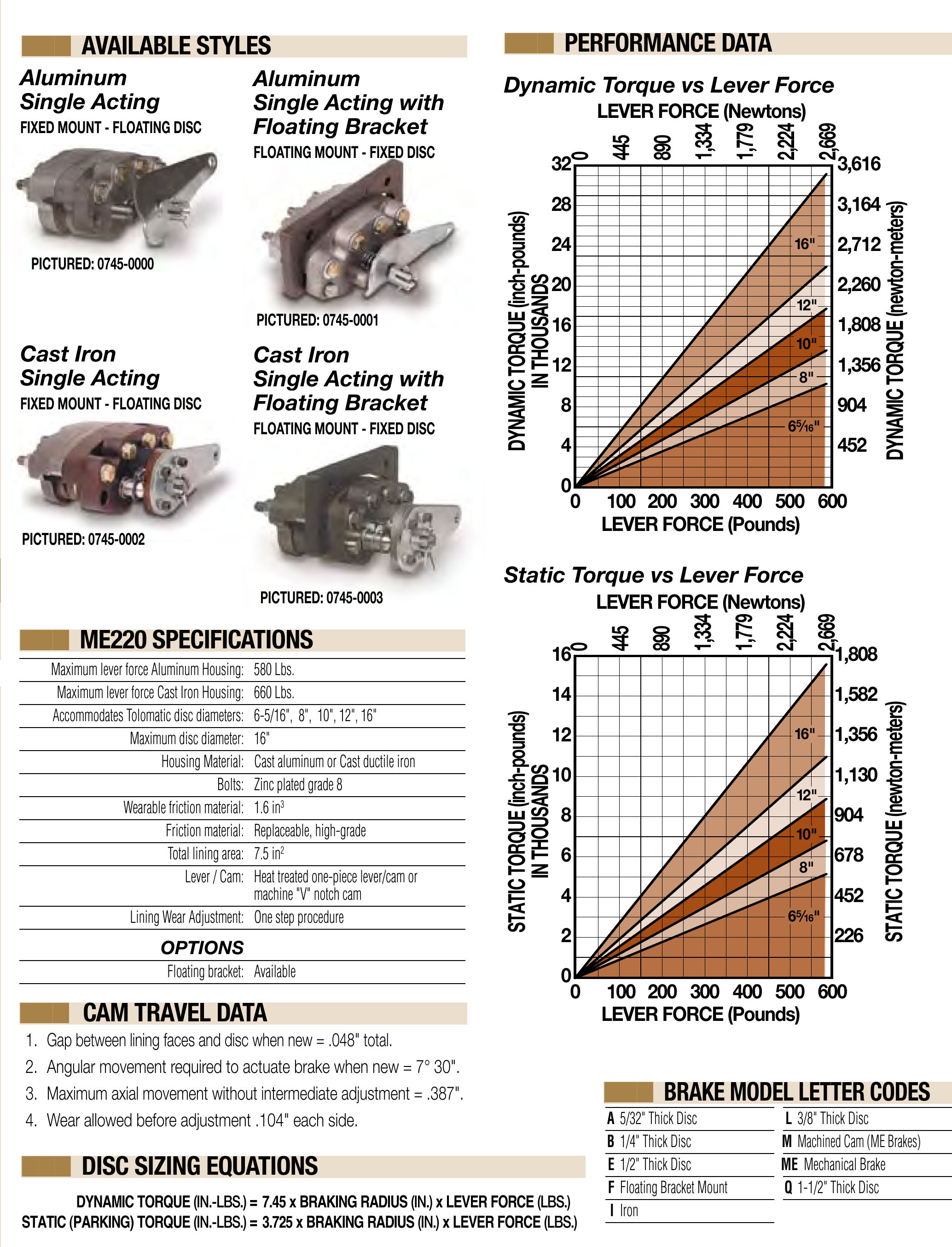

ME220 Specs & Torque

View and Print

ME220 Specs & Torque

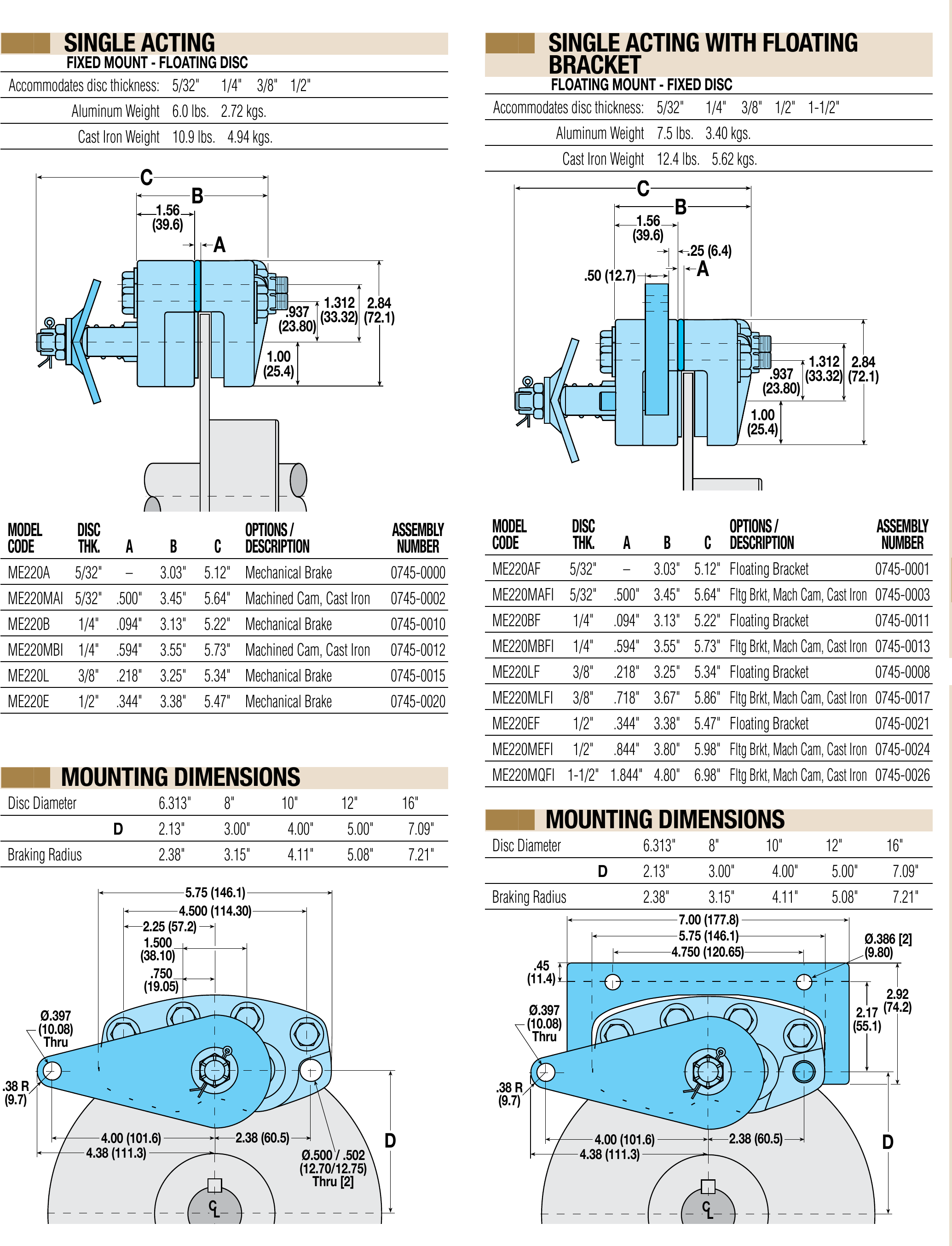

ME220 Dimensions

View and Print

ME220 Dimensions

Ordering

Part # Description Model CodeDisc Thickness (in)"A" (in)"B" (in)"C" (in) Cart
0745-0000 Mechanical Brake ME220A5/32--3.035.12
0745-0001 Floating Bracket ME220AF5/32--3.035.12
0745-0002 Machined Cam, Cast Iron ME220MAI5/320.53.455.64
0745-0003 Floating Bracket, Machined Cam, Cast Iron ME220MAFI5/320.53.455.64
0745-0008 Floating Bracket ME220LF3/80.2183.255.34
0745-0010 Mechanical Brake ME220B1/40.0943.135.22
0745-0011 Floating Bracket ME220BF1/40.0943.135.22
0745-0012 Machined Cam, Cast Iron ME220MBI1/40.5943.555.73
0745-0013 Floating Bracket, Machined Cam, Cast Iron ME220MBFI1/40.5943.555.73
0745-0015 Mechanical Brake ME220L3/80.2183.255.34
0745-0017 Floating Bracket, Machined Cam, Cast Iron ME220MLFI3/80.7183.675.86
0745-0020 Mechanical Brake ME220E1/20.3443.385.47
0745-0021 Floating Bracket ME220EF1/20.3443.385.47
0745-0024 Floating Bracket, Machined Cam, Cast Iron ME220MEFI1/20.8443.85.98
0745-0026 Floating Bracket, Machined Cam, Cast Iron ME220MQFI1-1/21.8444.86.98
