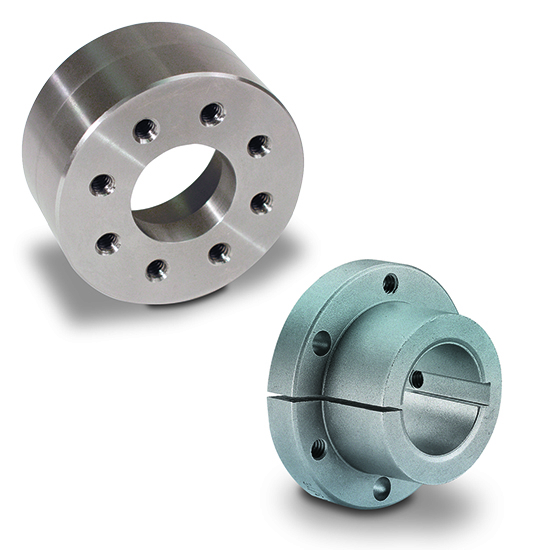

Quick Disconnect Bushings & Hubs

QD Bushings & Hubs
Contact an Engineer
Order Online

Quick Disconnect Bushings & Hubs

Tolomatic quick disconnect bushings and hubs are designed to be used together. Bushings and hubs are available for use with 6-5/16-, 8- and 10-, 12- and 16-inch Tolomatic disc sizes.

  • Fast, easy installation
  • Easily disconnect disc sizes
  • Accommodates a larger range of shaft sizes

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

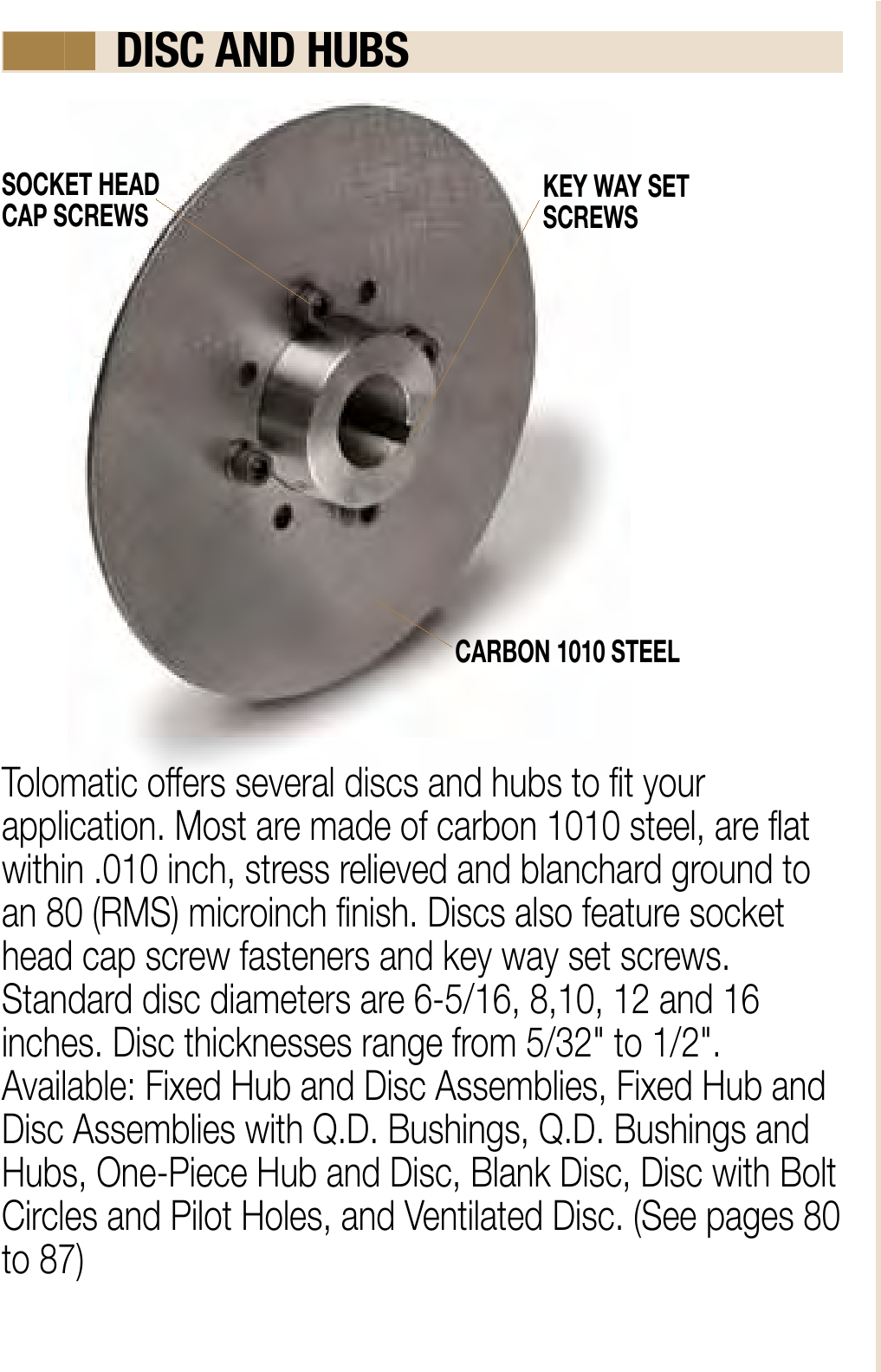

QD Bushings & Hubs Features

View and Print

QD Bushings & Hubs Features

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

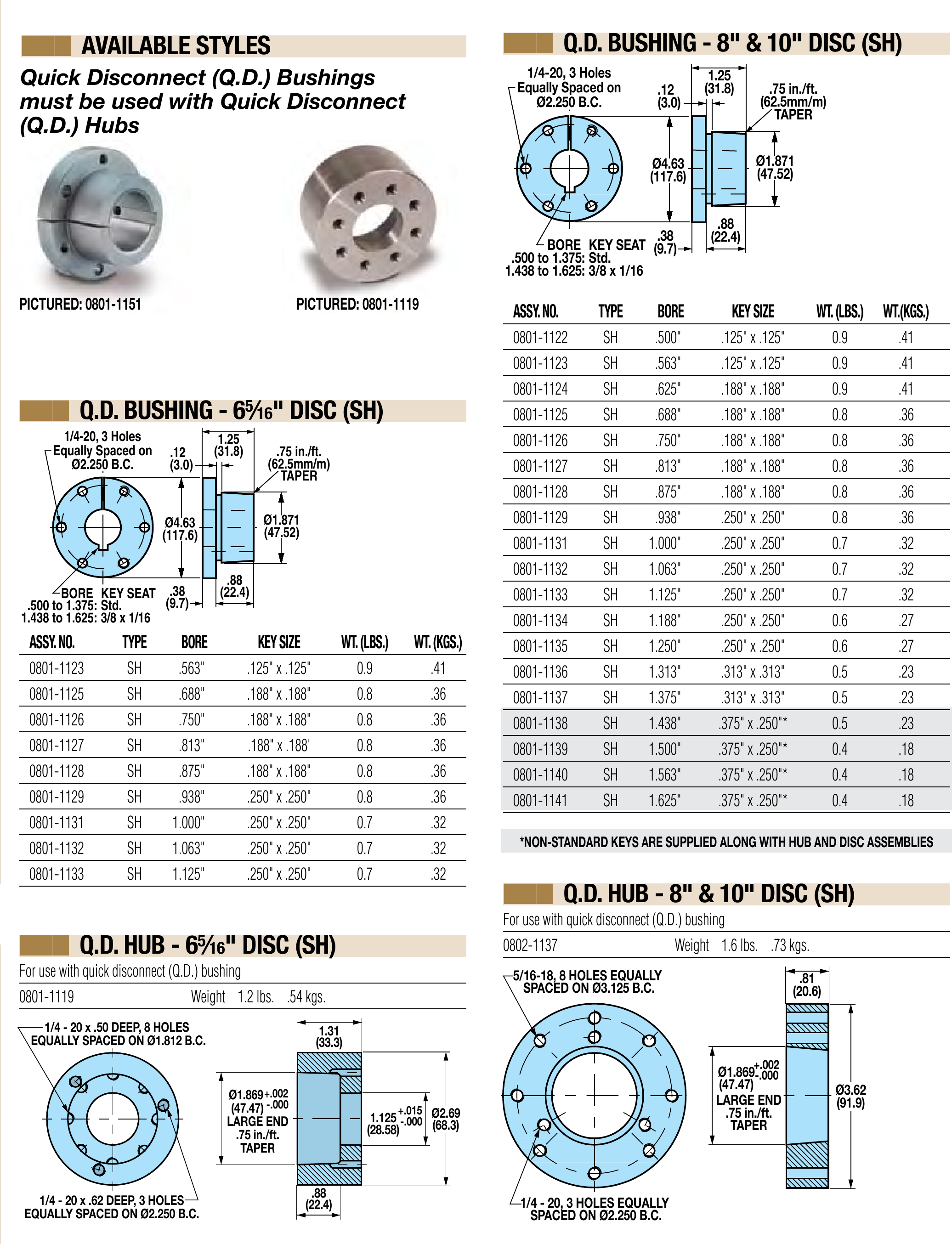

QD Bushings & Hubs: Specs and Dimensions for 6-, 8- and 10-inch Discs

View and Print

QD Bushings & Hubs: Specs and Dimensions for 6-, 8- and 10-inch Discs

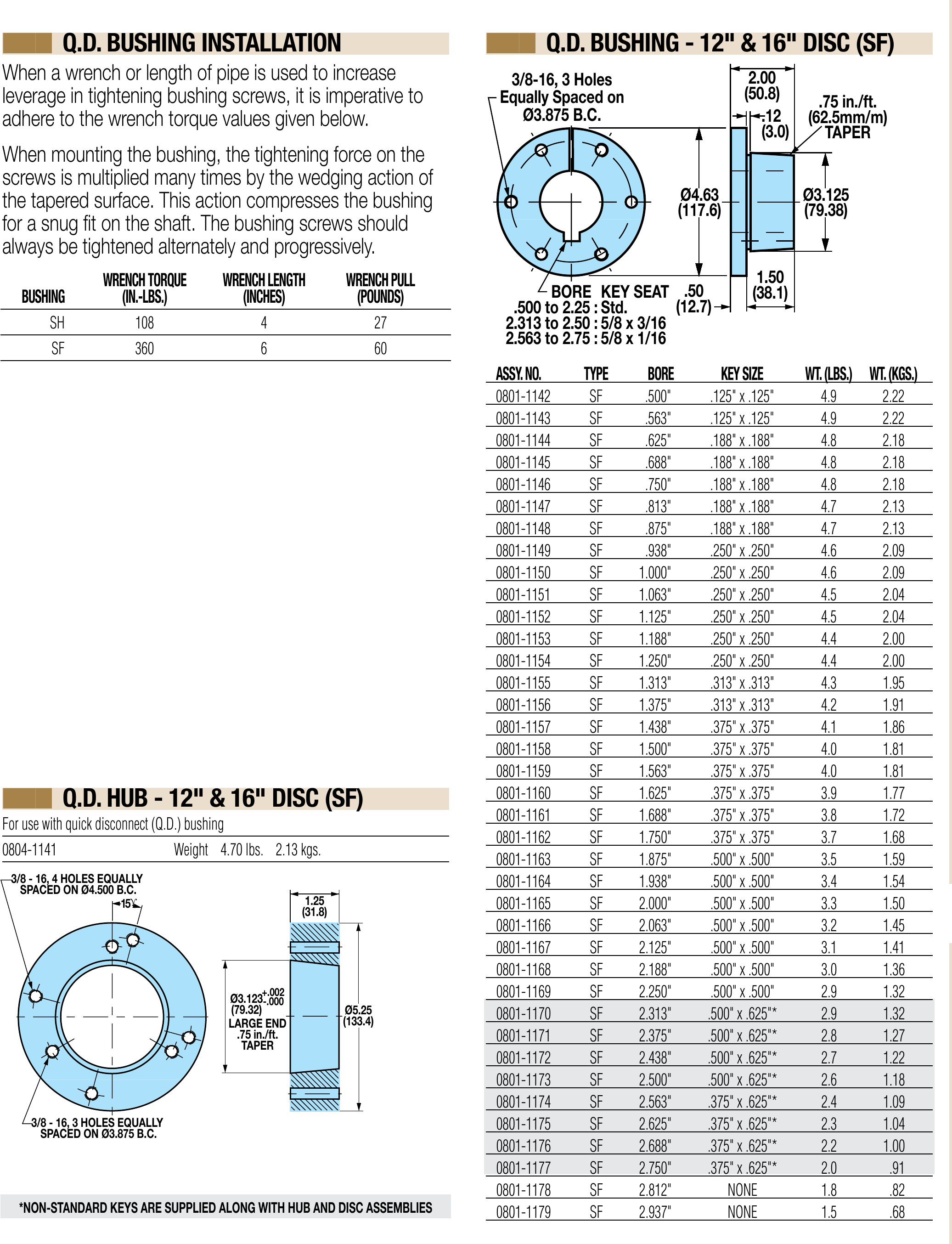

QD Bushings & Hubs: Dimensions for 12- and 16-inch Discs

View and Print

QD Bushings & Hubs: Dimensions for 12- and 16-inch Discs

Ordering

Part # Description Bushing TypeBore (in)Key Size (in)Disc Size (in)Weight Cart
0801-1119 Quick Disconnect Hub 6 5/16 Discs ------6-5/161.2
0801-1122 Quick Disconnect Bushings 8 & 10 Discs SH0.5.125 x .125--0.9
0801-1123 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH0.563.125 x .125--0.9
0801-1124 Quick Disconnect Bushing 8 & 10 Discs SH0.625.188 x .188--0.9
0801-1125 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH0.688.188 x .188--0.8
0801-1126 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH0.75.188 x .188--0.8
0801-1127 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH0.813.188 x .188--0.8
0801-1128 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH0.875.188 x .188--0.8
0801-1129 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH0.938.250 x .250--0.8
0801-1131 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH1.250 x .250--0.7
0801-1132 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH1.063.250 x .250--0.7
0801-1133 Quick Disconnect Bushings 6 5/16, 8 & 10 Discs SH1.125.250 x .250--0.7
0801-1134 Quick Disconnect Bushing 8 & 10 Discs SH1.188.250 x .250--0.6
0801-1135 Quick Disconnect Bushing 8 & 10 Discs SH1.25.250 x .250--0.6
0801-1137 Quick Disconnect Bushing 8 & 10 Discs SH1.375.313 x .313--0.5
0801-1138 Quick Disconnect Bushing 8 & 10 Discs SH1.438.375 x .250--0.5
0801-1139 Quick Disconnect Bushing 8 & 10 Discs SH1.5.375 x .250--0.4
0801-1140 Quick Disconnect Bushing 8 & 10 Discs SH1.563.375 x .250--0.4
0801-1141 Quick Disconnect Bushing 8 & 10 Discs SH1.625.375 x .250--0.4
0801-1142 Quick Disconnect Bushing 12 & 16 Discs SF0.5.125 x .125--4.9
0801-1144 Quick Disconnect Bushing 12 & 16 Discs SF0.625.188 x .188--4.8
0801-1146 Quick Disconnect Bushing 12 & 16 Discs SF0.75.188 x .188--4.8
0801-1148 Quick Disconnect Bushing 12 & 16 Discs SF0.875.188 x .188--4.7
0801-1150 Quick Disconnect Bushing 12 & 16 Discs SF1.250 x .250--4.6
0801-1151 Quick Disconnect Bushing 12 & 16 Discs SF1.063.250 x .250--4.5
0801-1152 Quick Disconnect Bushing 12 & 16 Discs SF1.125.250 x .250--4.5
0801-1153 Quick Disconnect Bushing 12 & 16 Discs SF1.188.250 x .250--4.4
0801-1154 Quick Disconnect Bushing 12 & 16 Discs SF1.25.250 x .250--4.4
0801-1155 Quick Disconnect Bushing 12 & 16 Discs SF1.313.313 x .313--4.3
0801-1156 Quick Disconnect Bushing 12 & 16 Discs SF1.375.313 x .313--4.2
0801-1157 Quick Disconnect Bushing 12 & 16 Discs SF1.438.375 x .375--4.1
0801-1158 Quick Disconnect Bushing 12 & 16 Discs SF1.5.375 x .375--4
0801-1159 Quick Disconnect Bushing 12 & 16 Discs SF1.563.375 x .375--4
0801-1160 Quick Disconnect Bushing 12 & 16 Discs SF1.625.375 x .375--3.9
0801-1161 Quick Disconnect Bushing 12 & 16 Discs SF1.688.375 x .375--3.8
0801-1162 Quick Disconnect Bushing 12 & 16 Discs SF1.75.375 x .375--3.7
0801-1163 Quick Disconnect Bushing 12 & 16 Discs SF1.875.500 x .500--3.5
0801-1164 Quick Disconnect Bushing 12 & 16 Discs SF1.938.500 x .500--3.4
0801-1165 Quick Disconnect Bushing 12 & 16 Discs SF2.500 x .500--3.3
0801-1166 Quick Disconnect Bushing 12 & 16 Discs SF2.063.500 x .500--3.2
0801-1167 Quick Disconnect Bushing 12 & 16 Discs SF2.125.500 x .500--3.1
0801-1168 Quick Disconnect Bushing 12 & 16 Discs SF2.188.500 x .500--3
0801-1169 Quick Disconnect Bushing 12 & 16 Discs SF2.25.500 x .500--2.9
0801-1170 Quick Disconnect Bushing 12 & 16 Discs SF2.313.500 x .625--2.9
0801-1171 Quick Disconnect Bushing 12 & 16 Discs SF2.375.500 x .625--2.8
0801-1172 Quick Disconnect Bushing 12 & 16 Discs SF2.438.500 x .625--2.7
0801-1173 Quick Disconnect Bushing 12 & 16 Discs SF2.5.500 x .625--2.6
0801-1174 Quick Disconnect Bushing 12 & 16 Discs SF2.563.375 x .625--2.4
0801-1175 Quick Disconnect Bushing 12 & 16 Discs SF2.625.375 x .625--2.3
0801-1176 Quick Disconnect Bushing 12 & 16 Discs SF2.688.375 x .625--2.2
0801-1177 Quick Disconnect Bushing 12 & 16 Discs SF2.75.375 x .625--2
0801-1179 Quick Disconnect Bushing 12 & 16 Discs SF2.937NONE--1.5
0802-1137 Quick Disconnect Hub 8 & 10 Discs ------81.6
0804-1141 Quick Disconnect Hub 12 & 16 Discs ------124.7
