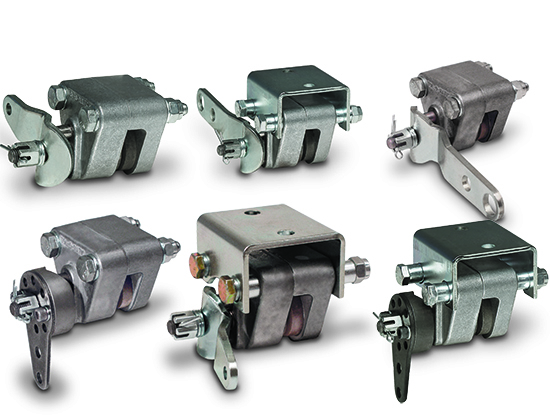

The ME10 mechanical disc brake series provides up to 8930 in-lbs (1009 Nm) of torque. ME10 mechanical disc brakes are single acting and available with long, short or machined cam levers.

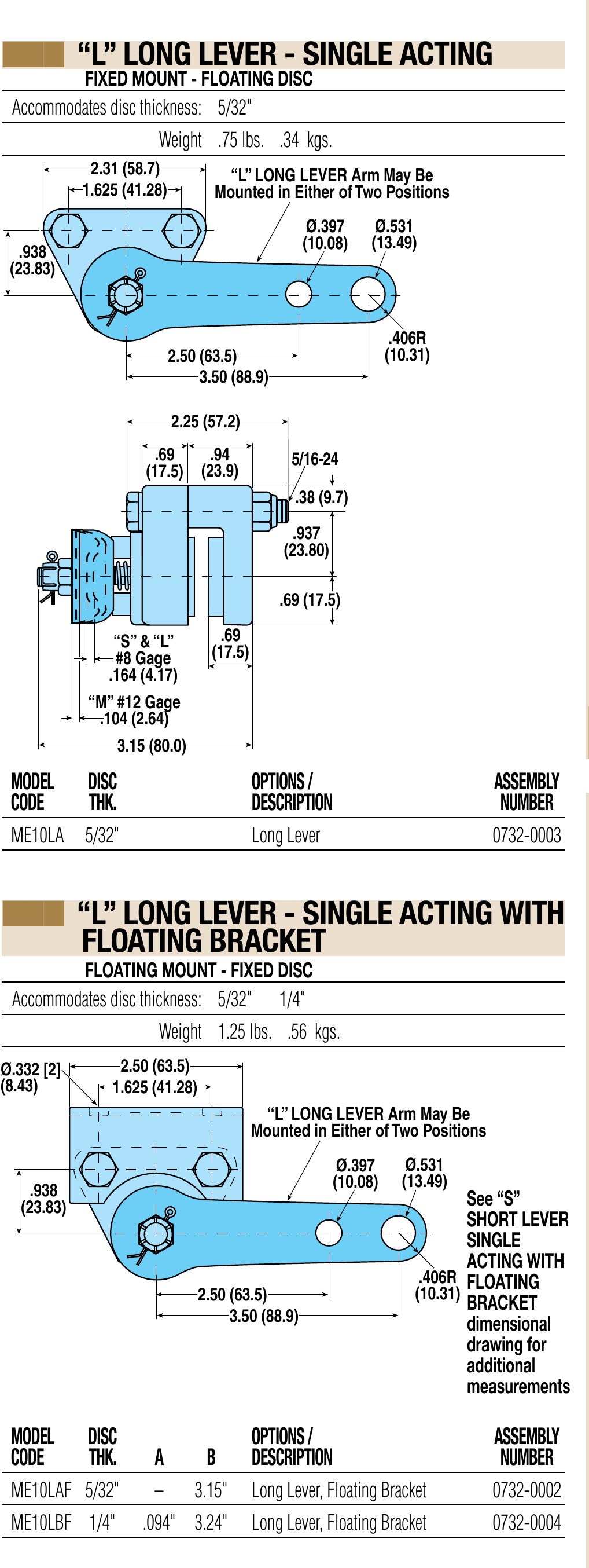

Long Lever
Long Lever, Floating Bracket

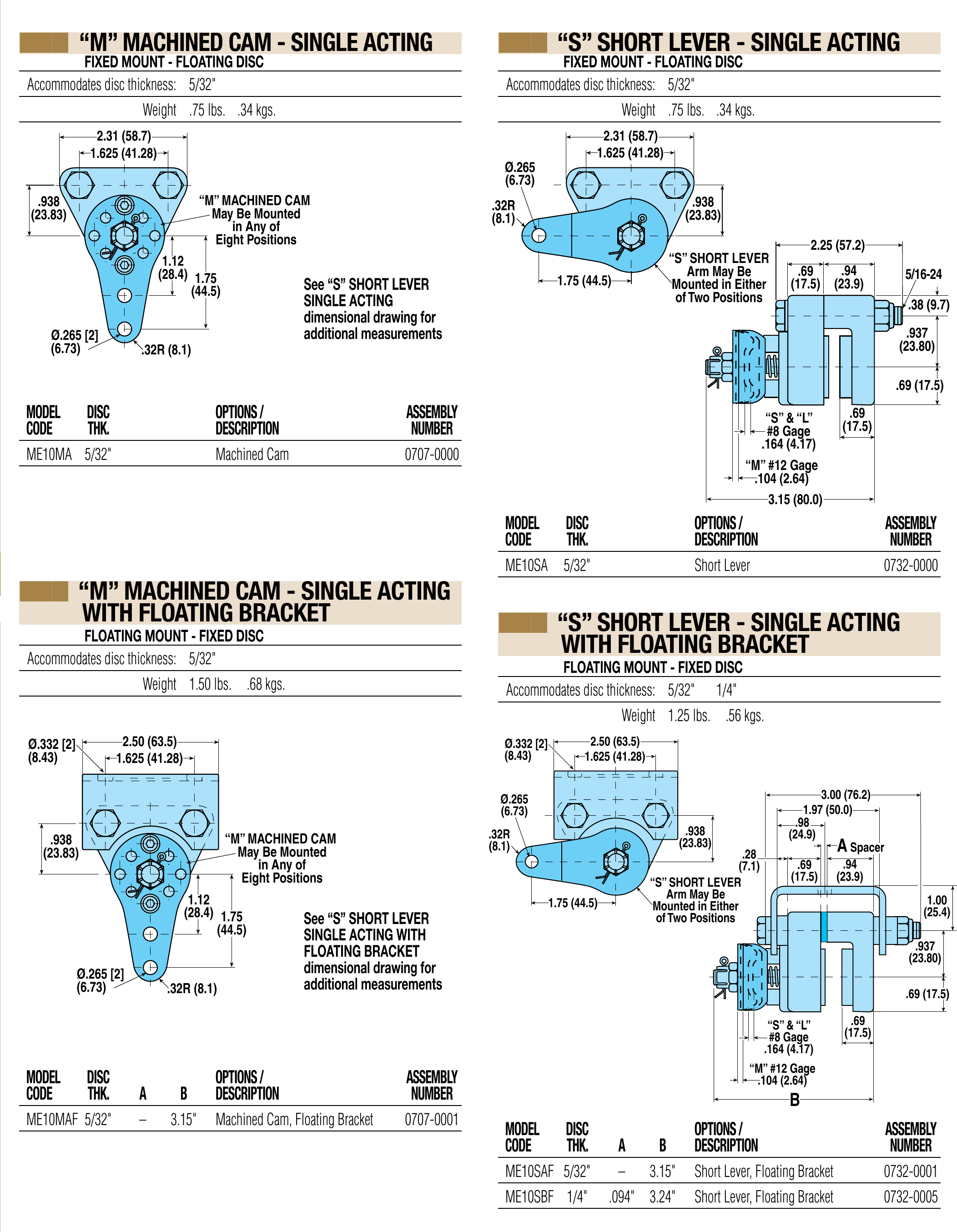

Machined Cam
Machined Cam, Floating Bracket
Short Lever
Short Lever, Floating Bracket
View and Print
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.
