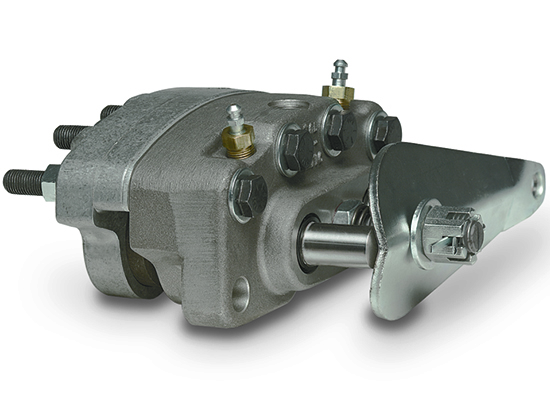

H/ME220 Series Hydraulic/Mechanical Brake

H/ME220 Series Hydraulic/Mechanical Brake

H/ME220 Series Hydraulic/Mechanical Brake

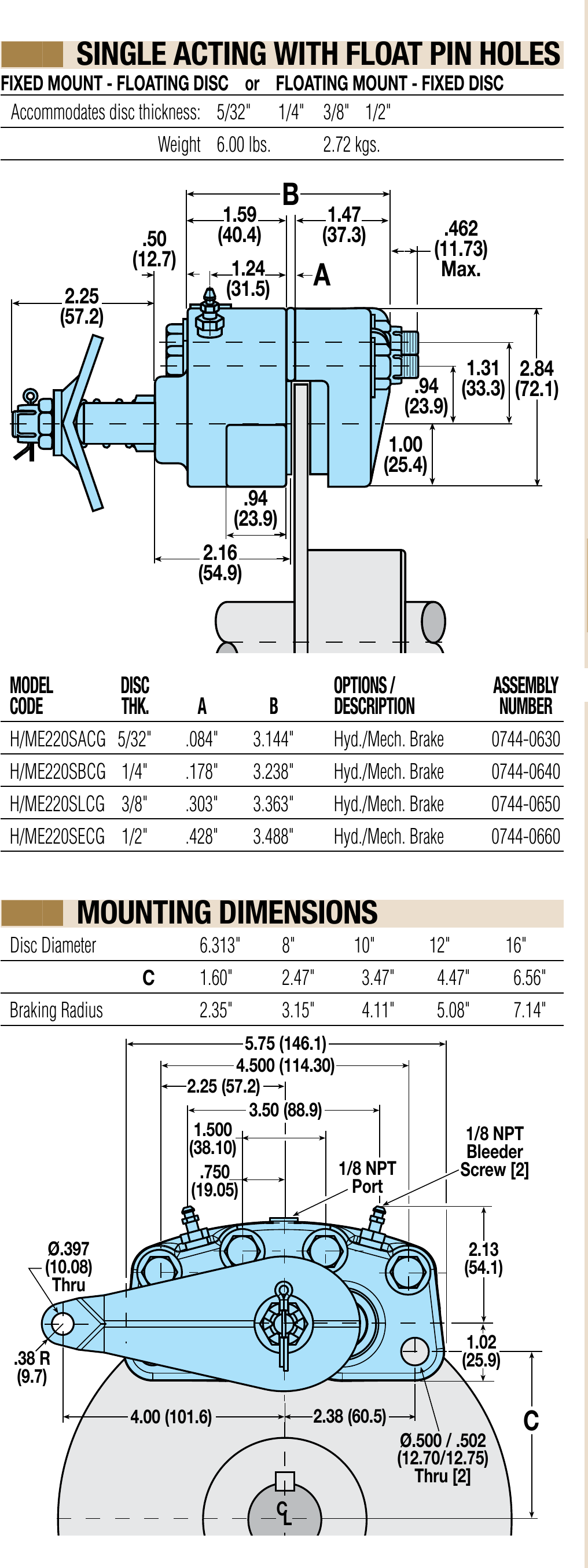

The H/ME220 hydraulic and mechanical brakes are available in single acting models with float pin holes that can accommodate up to 1/2 inch (12.7 mm) thick discs.

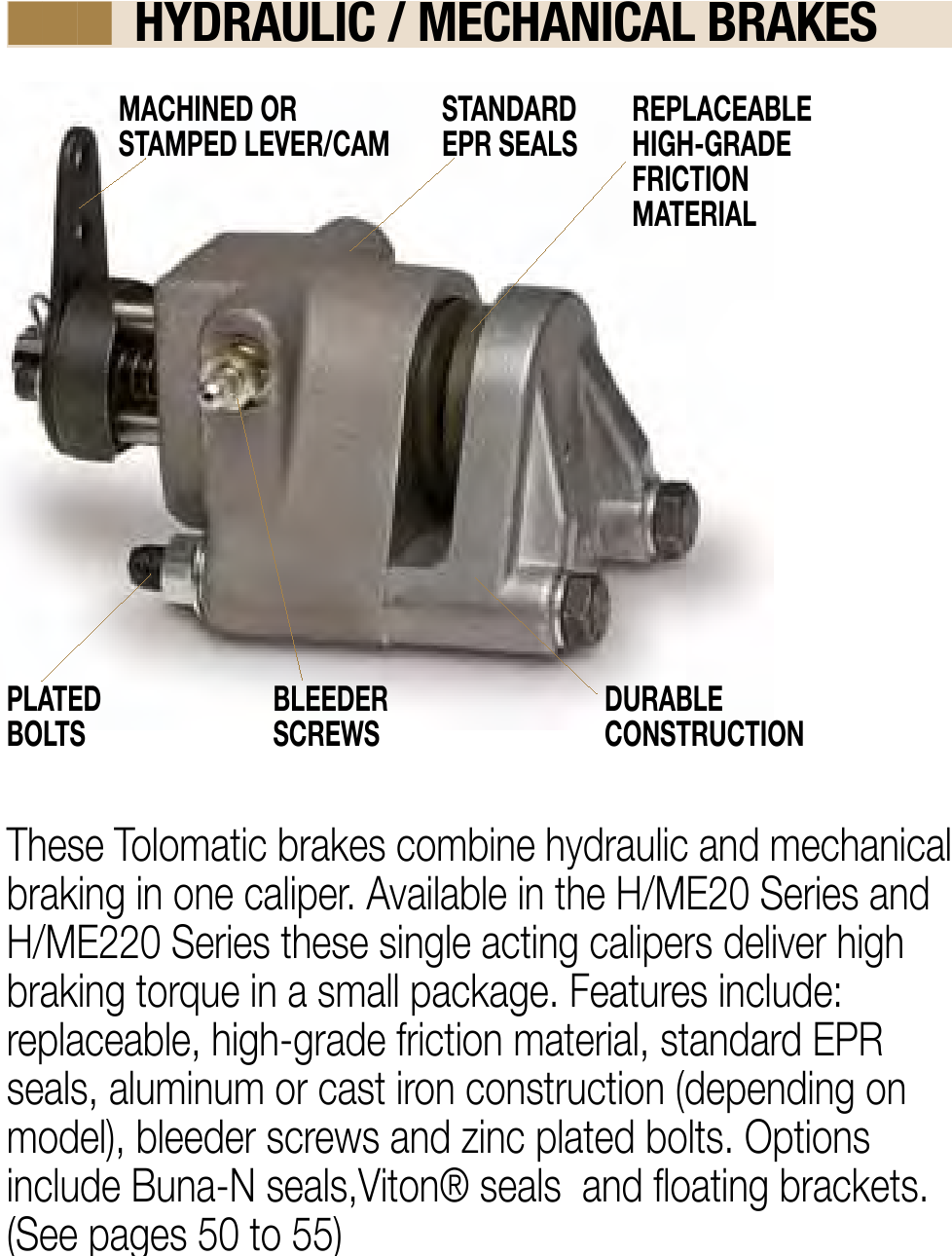

  • Durable aluminum construction
  • Replaceable high-grade friction material
  • Optional Buna-N seals
  • Maximum disc diameter of 16 inches (406 mm)
