ERD 22, 25, and 30 are being transitioned to the improved design of the RSH hygienic actuator family. Contact Tolomatic for support.

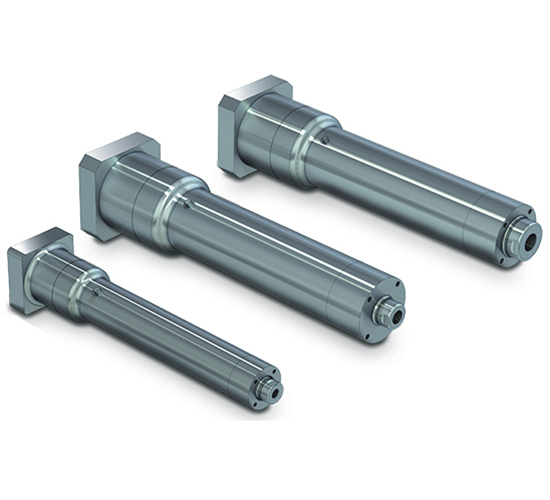

ERD hygienic electric actuators are approved by 3A and USDA for food and beverage applications.

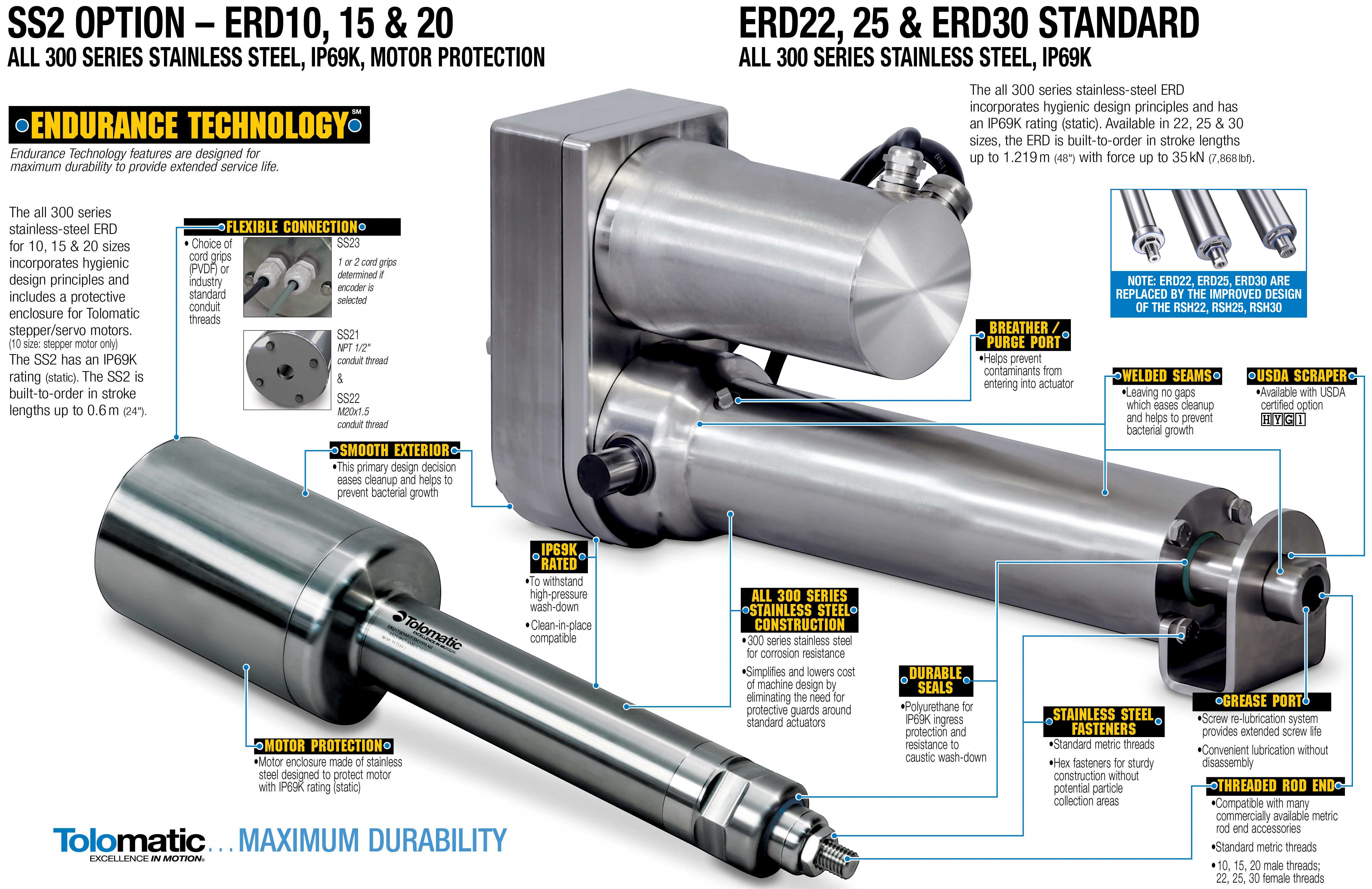

Tolomatic's line of hygienically designed all stainless steel electric actuators offer up to 7868 lbf (35 kN) and they are the perfect solution for food and beverage applications where higher forces are required for pressing, pumping, cutting or slicing. Use the Tolomatic Your Motor Here® database to select from a wide variety of stainless steel motor manufacturers for a complete all stainless package.

• 3 body sizes with 300 series stainless steel construction
• Ball, acme and roller screw choices
• Force/thrust capabilities up to 7,868 lbf (35 kN)
• Stroke lengths up to 39.4 inches (1 m)
• IP69K, clean in place compatible
• USDA and 3A (#14159-1-2010) approved hygienic option for over food operation
• Simplified (lower cost) machine design by eliminating protective guards enclosures for standard actuators

ERD 22, 25, and 30 are being transitioned to the improved design of the RSH hygienic actuator family. Contact Tolomatic for support.
