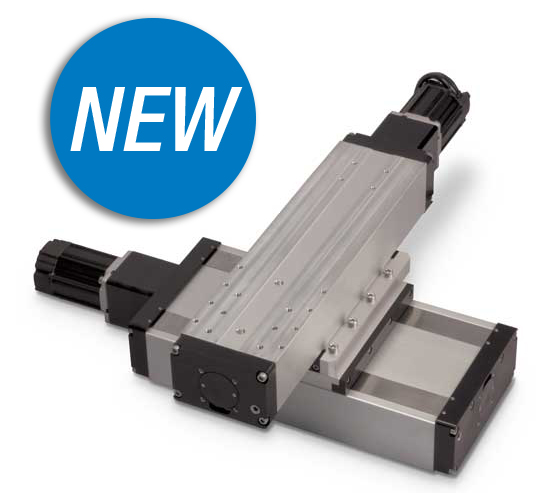

TRS Twin Profile Rail Stage with Enclosed Design

TRS
Your Motor Here® Size Your Actuator
Request a Quote
Contact an Engineer

TRS Twin Profile Rail Stage with Enclosed Design

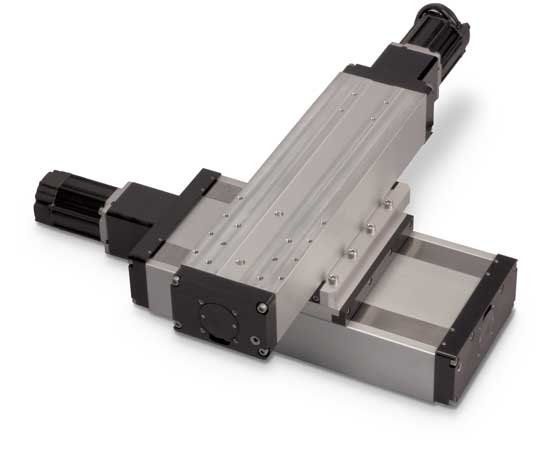

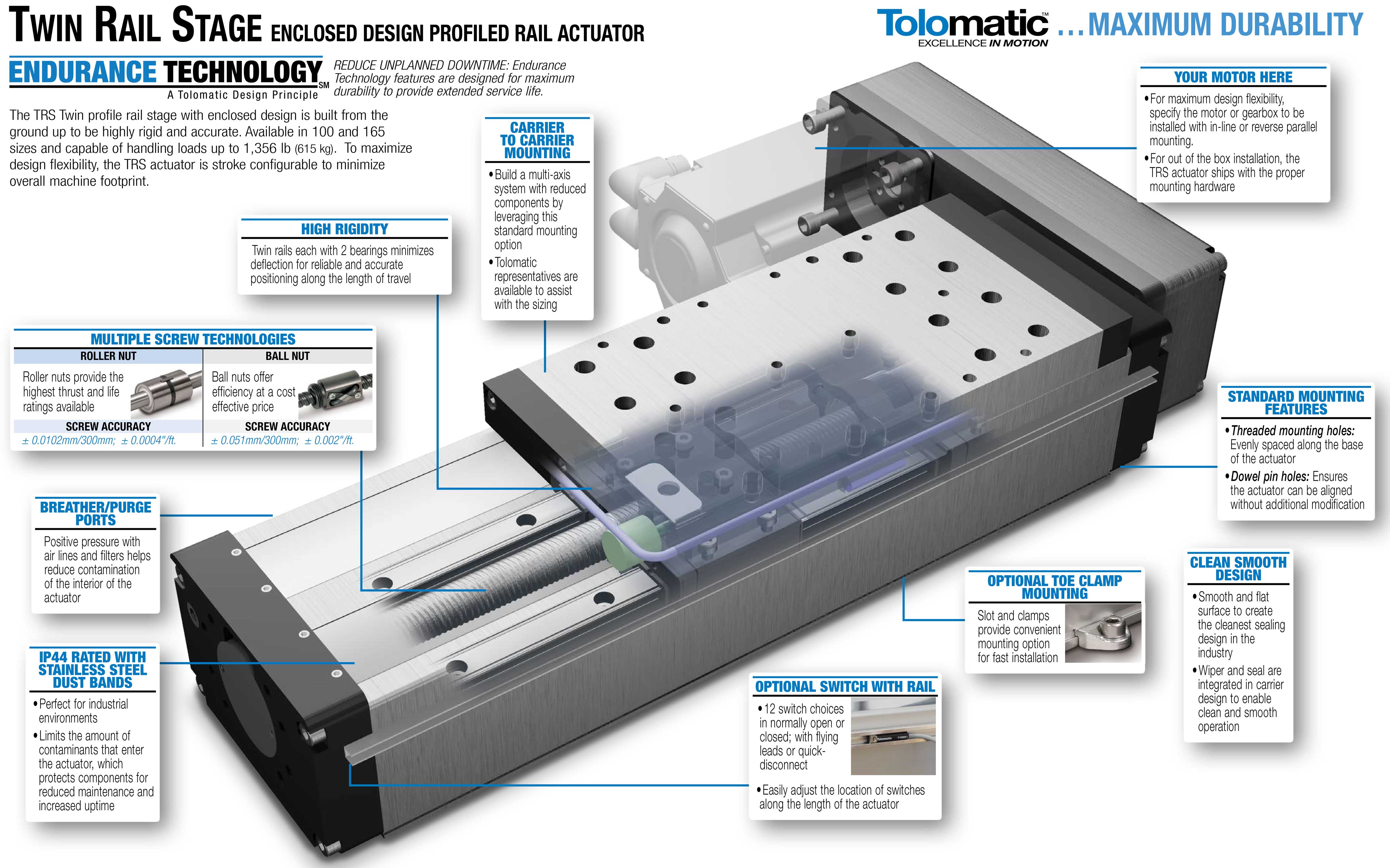

The TRS Twin profile rail stage with enclosed design is built from the ground up to be highly rigid and accurate. Available in 100 and 165 sizes and capable of handling loads up to 1,356 lb (615 kg). To maximize design flexibility, the TRS actuator is stroke configurable to minimize overall machine footprint.

  • 2 body sizes
  • Load carrying capacities up to 6.0 kN (1,349 lbf).
  • Strokes up to 1,100 mm (43.3 in)
  • US customary (standard) and metric (optional) construction
  • Mount your motor of choice with Tolomatic's Your Motor Here® program
  • Roller Nut ± 0.0102mm/300mm ± 0.0004"/ft.
  • Metric Ball Nut ± 0.051mm/300mm ± 0.002"/ft.

TRS Twin Rail Stage Actuator Max Stroke
Size TRS 100 TRS 165
Standard 29.5 in 43.3 in
Metric 750 mm 1,100 mm

TRS Twin Rail Stage Actuator Max Force
Size TRS 100 TRS 165
Standard 562 lbf 562 lbf
Metric 2,500 N 2,500 N

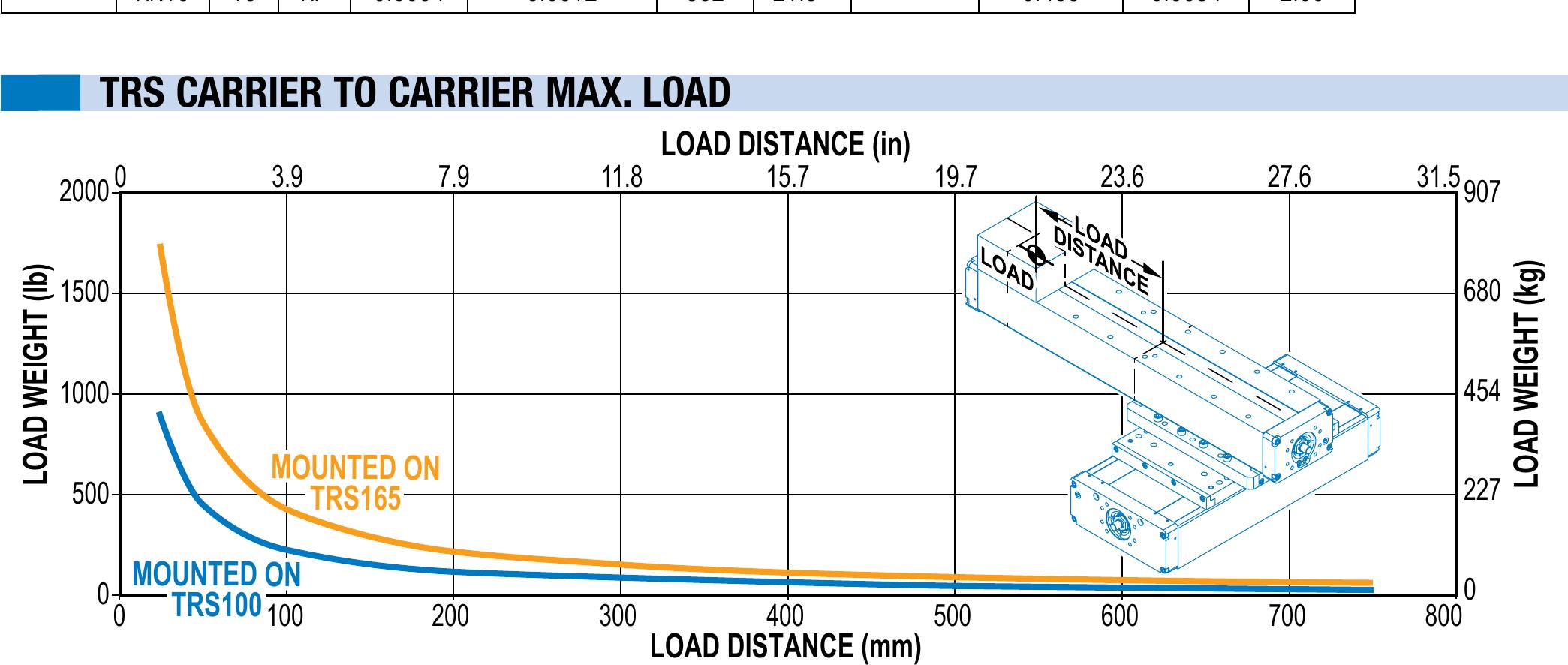

TRS Twin Rail Stage Actuator Max Load
Size TRS 100 TRS 165
Standard 1,085 lbs 1,356 lbs
Metric 492 kg 615 kg

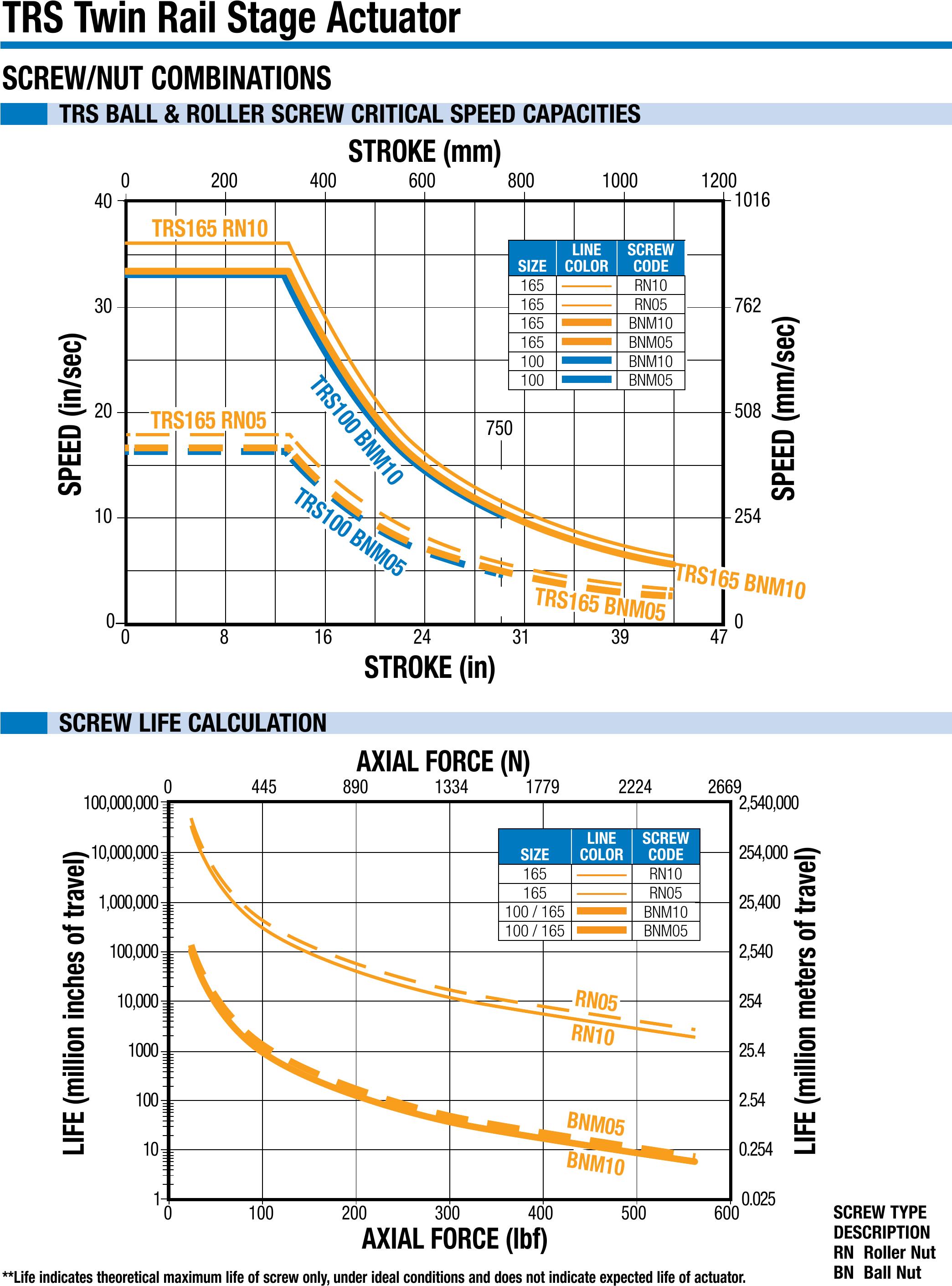

TRS Twin Rail Stage Actuator Max Speed
Size TRS 100 TRS 165
Standard 34 in/sec 36 in/sec
Metric 863.6 mm/sec 910 mm/sec
