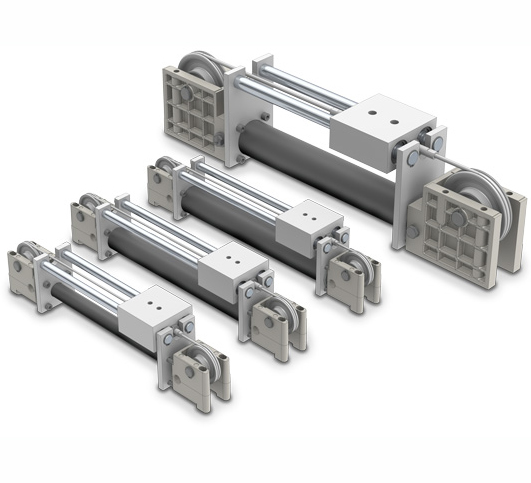

Track Cable Cylinders

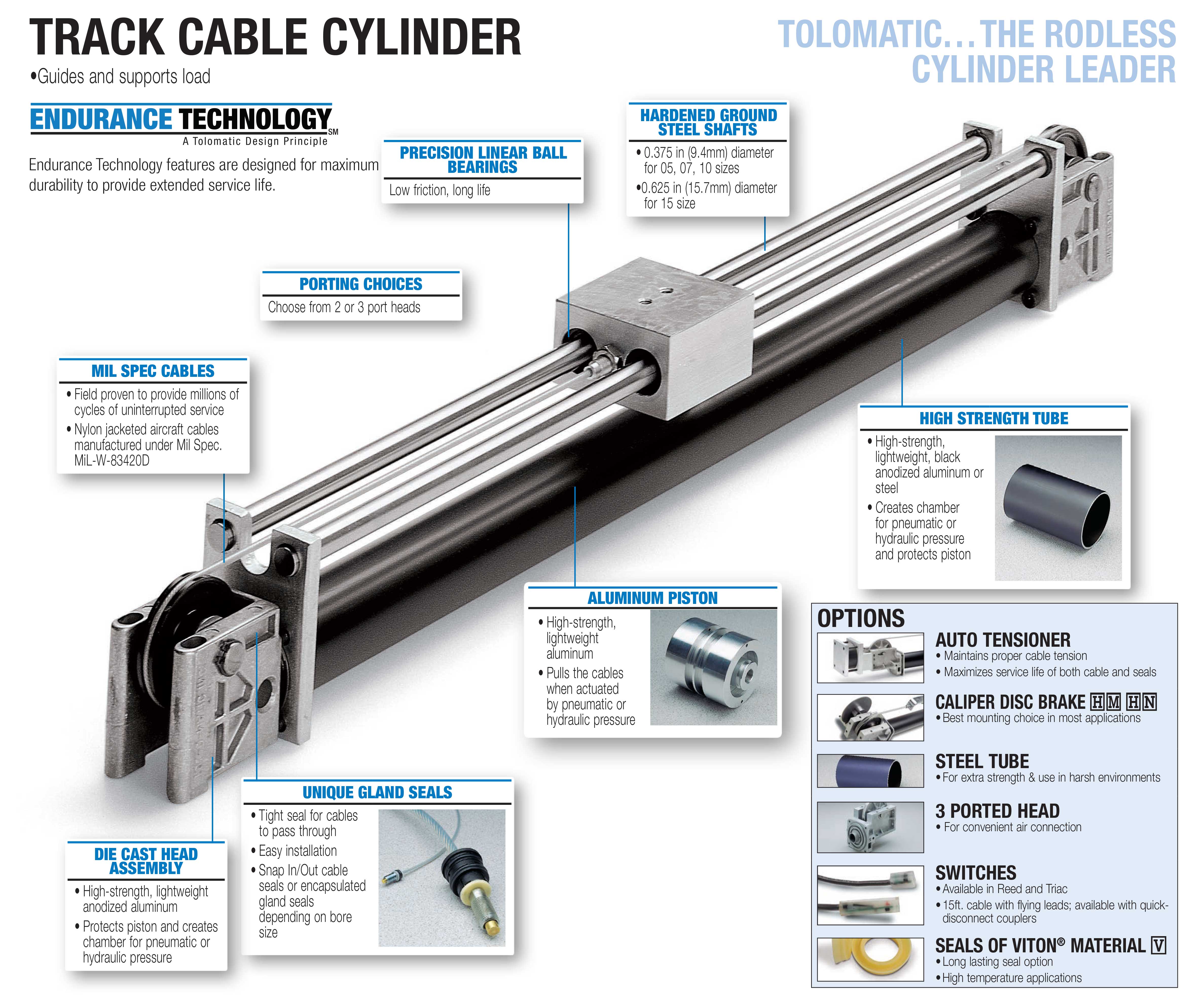

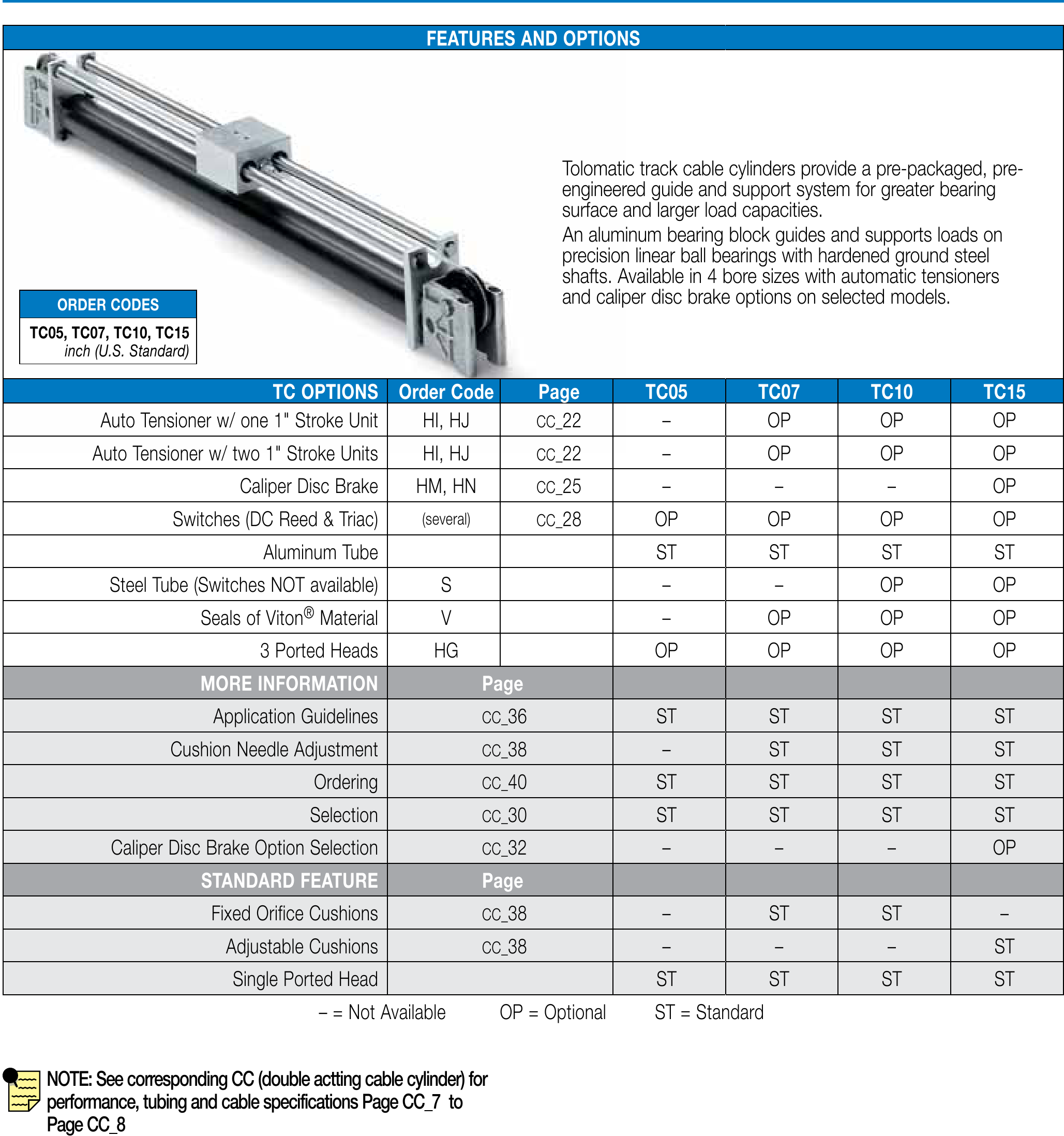

Track cable cylinders provide a pre-engineered guide and support system.

A track cable actuator's guide and support system can offer greater bearing surface than other types of cable cylinders and carry larger loads.

Aluminum bearing block guides and support loads
Precision linear ball bearings with hardened ground steel shafts
Bore sizes from .5 to 1 inch (13 to 25.4 mm)
Aluminum or steel tube
Optional 3-ported heads for convenient air connection

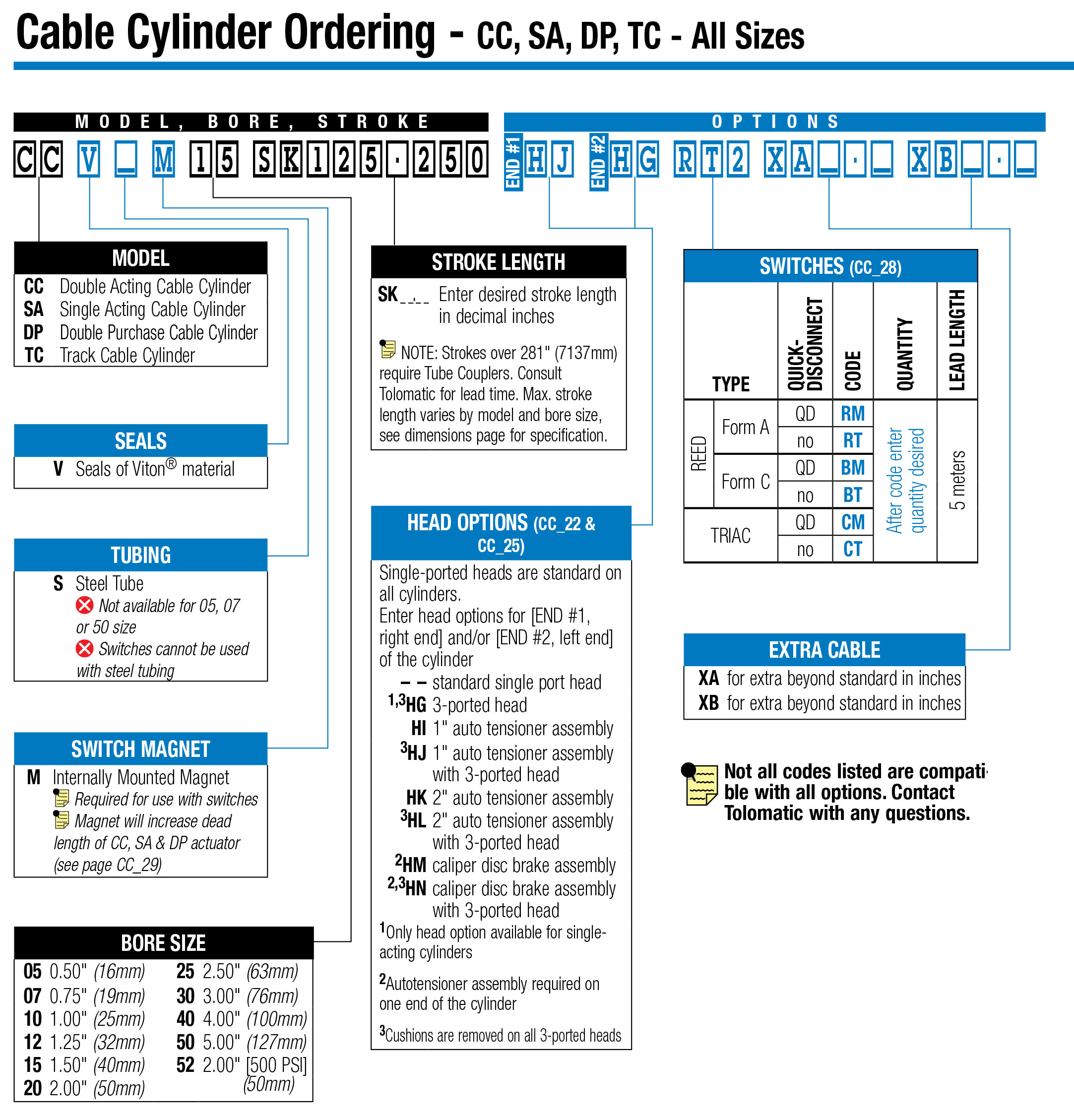

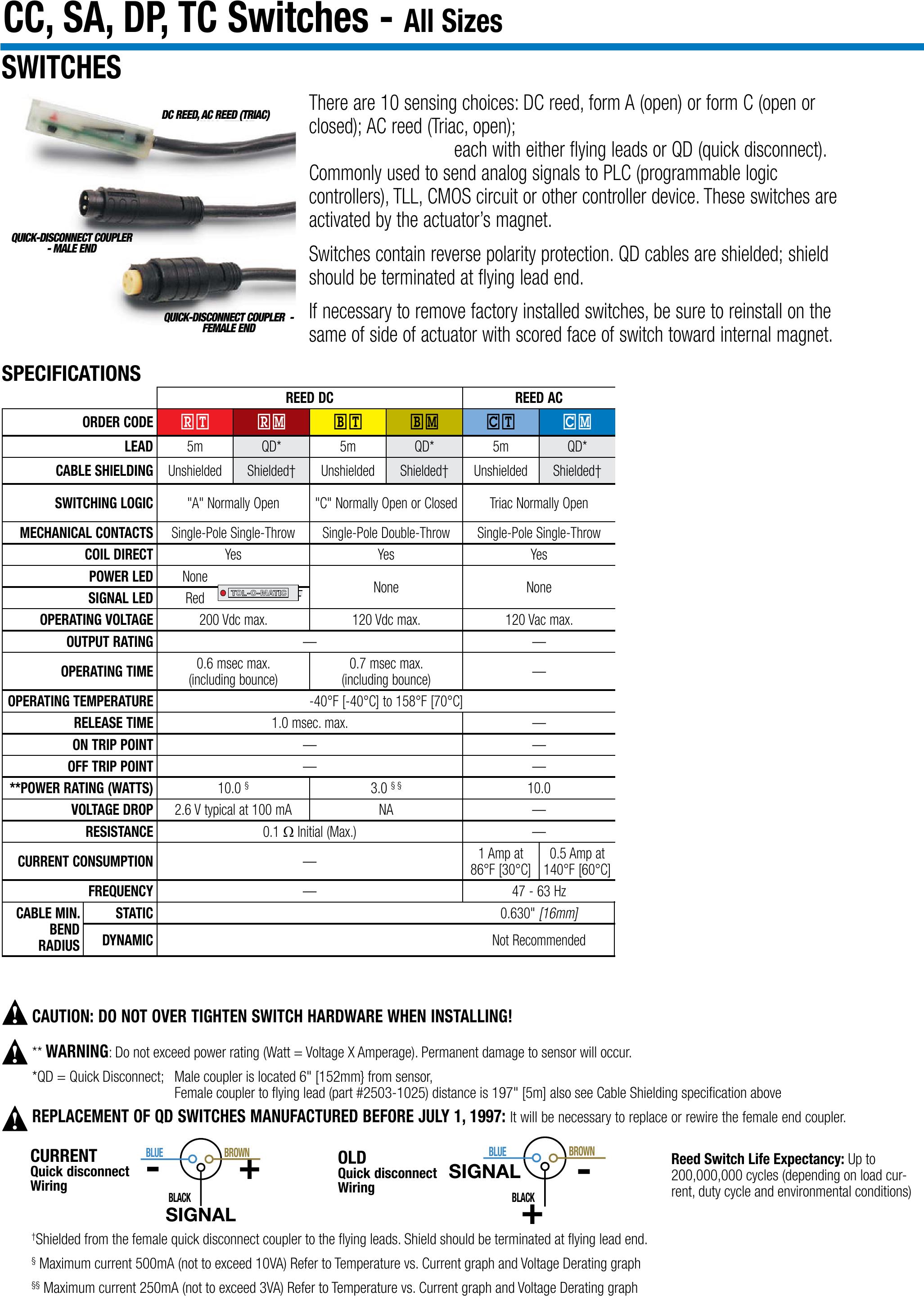

Other options include auto tensioners, caliper disc brake, Viton® seals and switches

Track Cable Cylinder Bore Size
Size	TC 05	TC 07	TC 10	TC 15
Standard	0.50 in	0.75 in	1.00 in	1.50 in
Metric	13 mm	19 mm	25 mm	38 mm

Track Cable Cylinder Max Stroke
Size	TC 05	TC 07	TC 10	TC 15
Standard	67 in	80 in	80 in	80 in
Metric	1,702 mm	2,032 mm	2,032 mm	2,032 mm

Track Cable Cylinder Max Force
Size	TC 05	TC 07	TC 10	TC 15
Standard	19 lbf	43 lbf	78 lbf	174 lbf
Metric	85 N	191 N	347 N	774 N

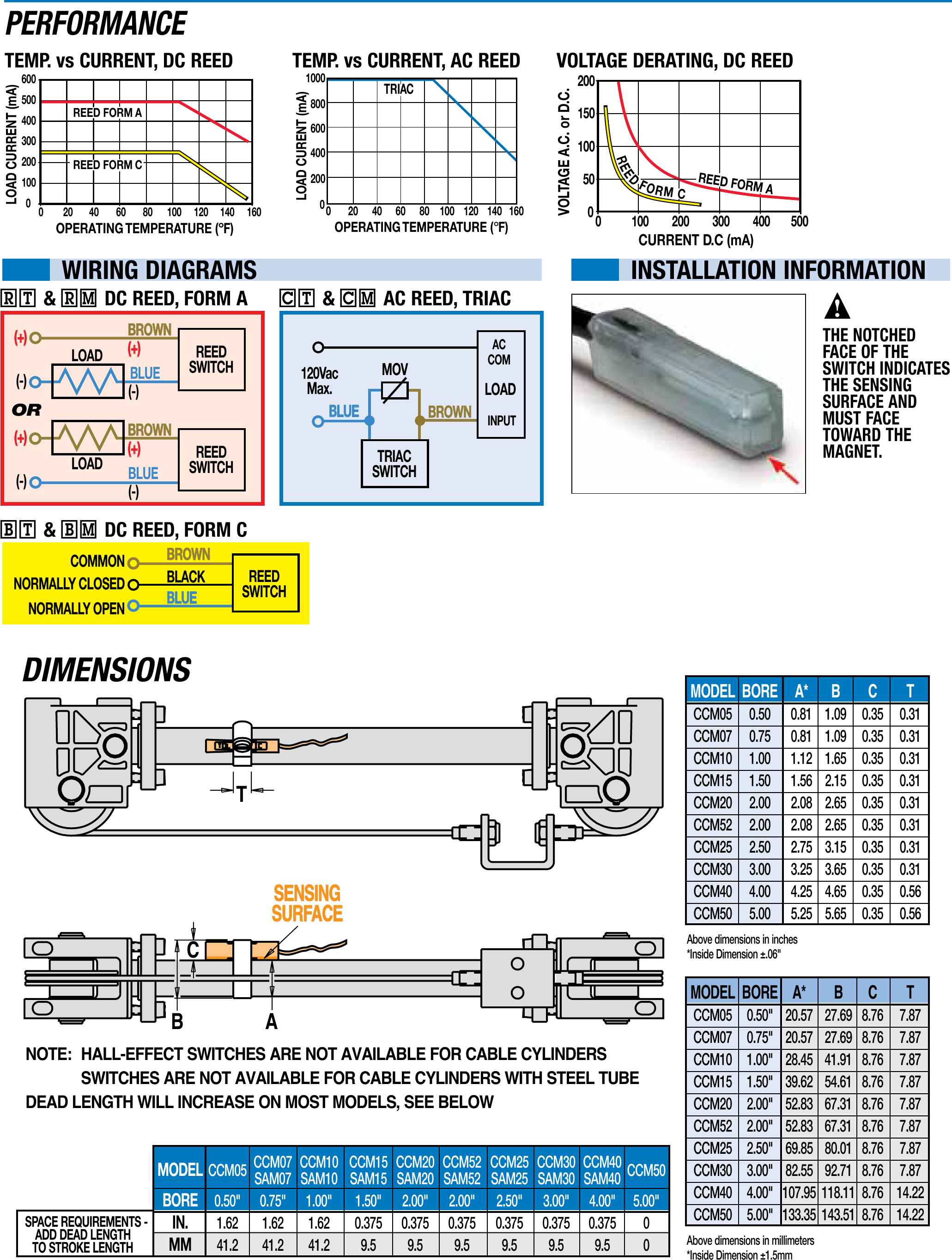

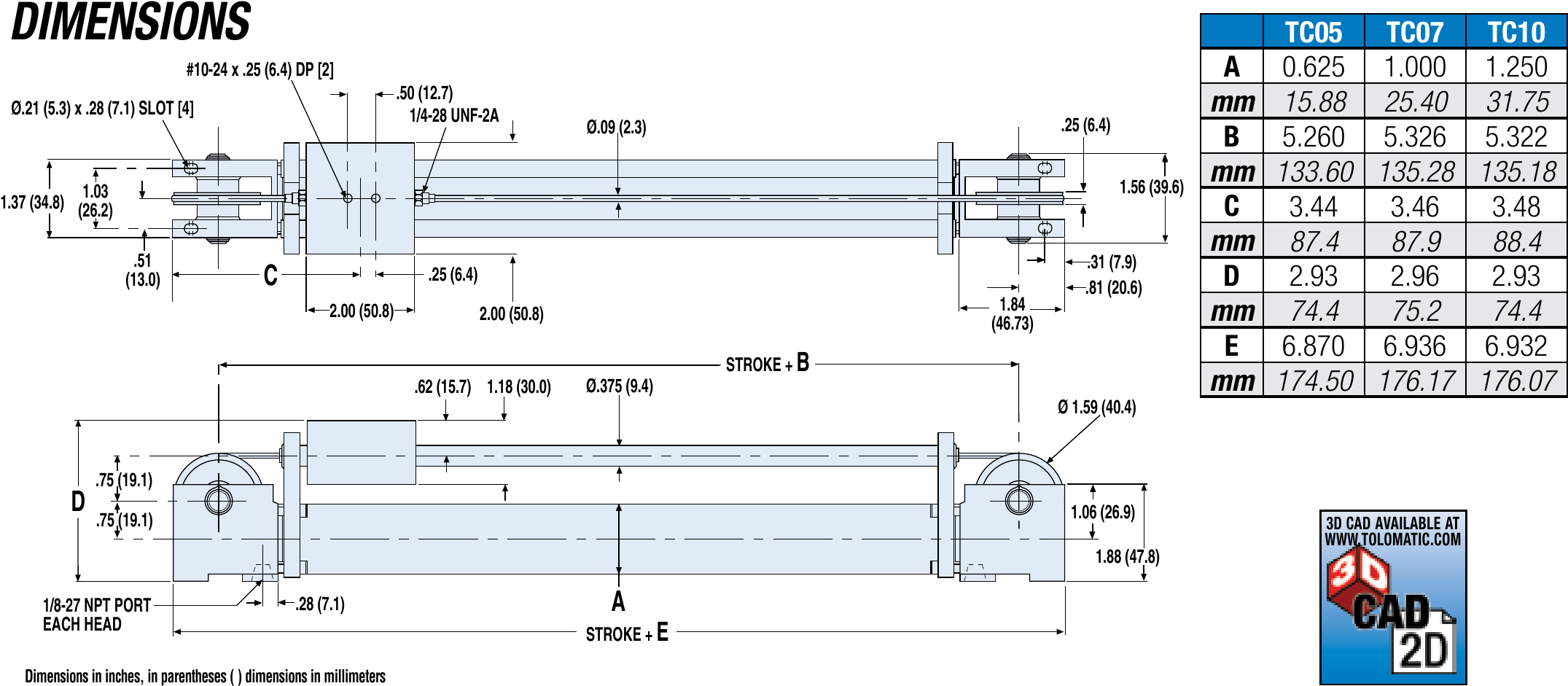

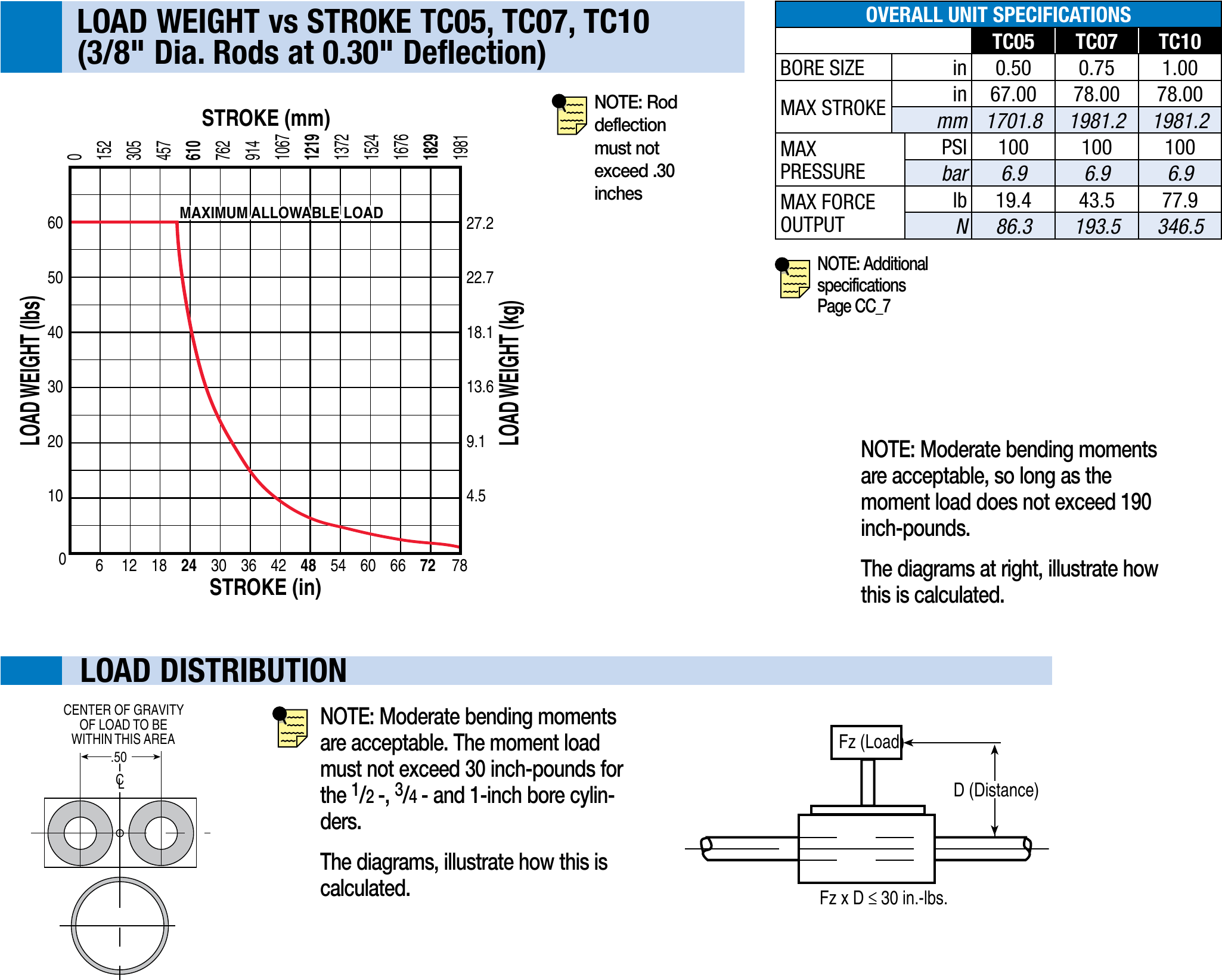

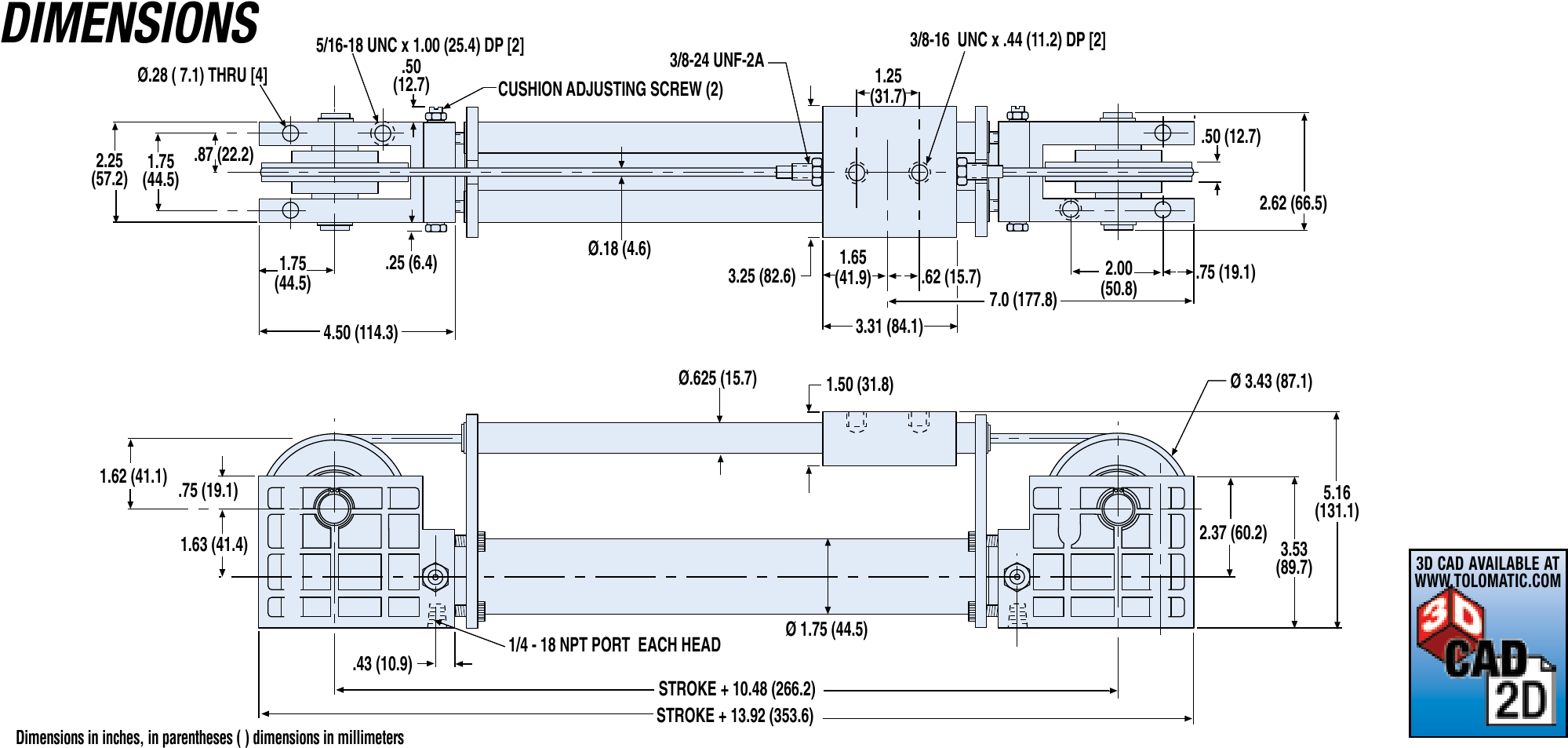

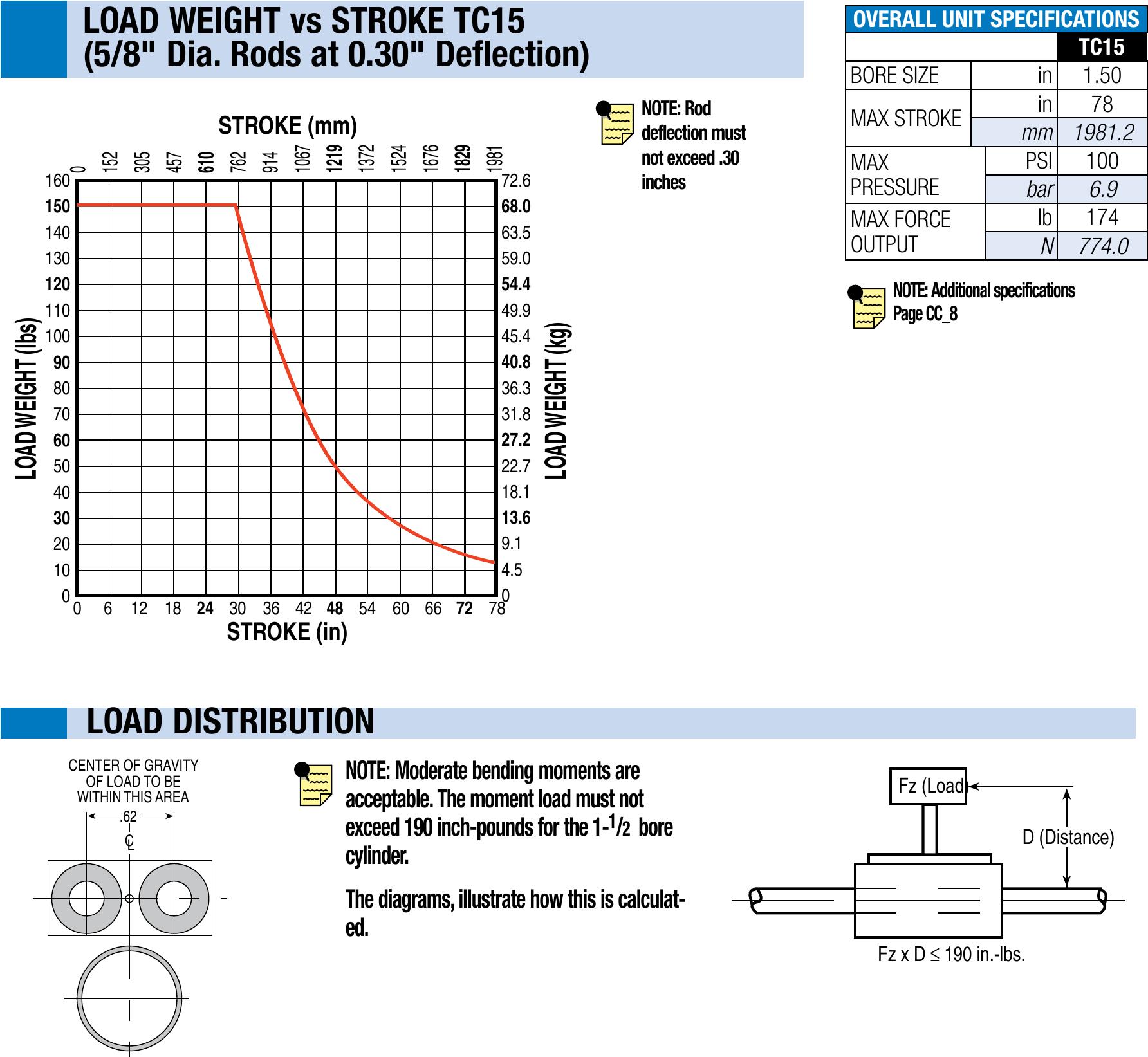

Track Cable Cylinder Max Load
Size	TC 05	TC 07	TC 10	TC 15
Standard	60 lbs	60 lbs	60 lbs	15 lbs
Metric	27 kg	27 kg	27 kg	7 kg

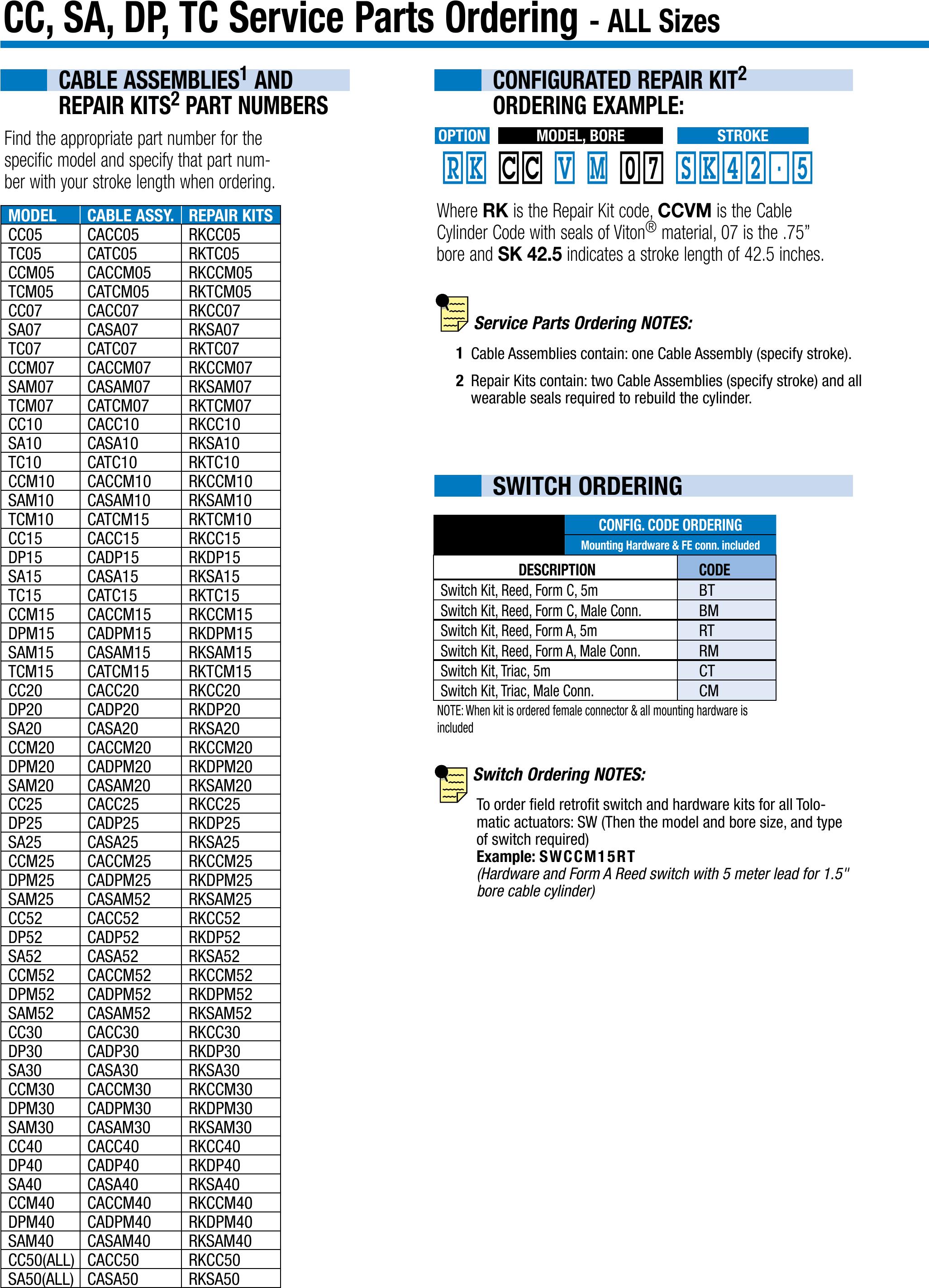

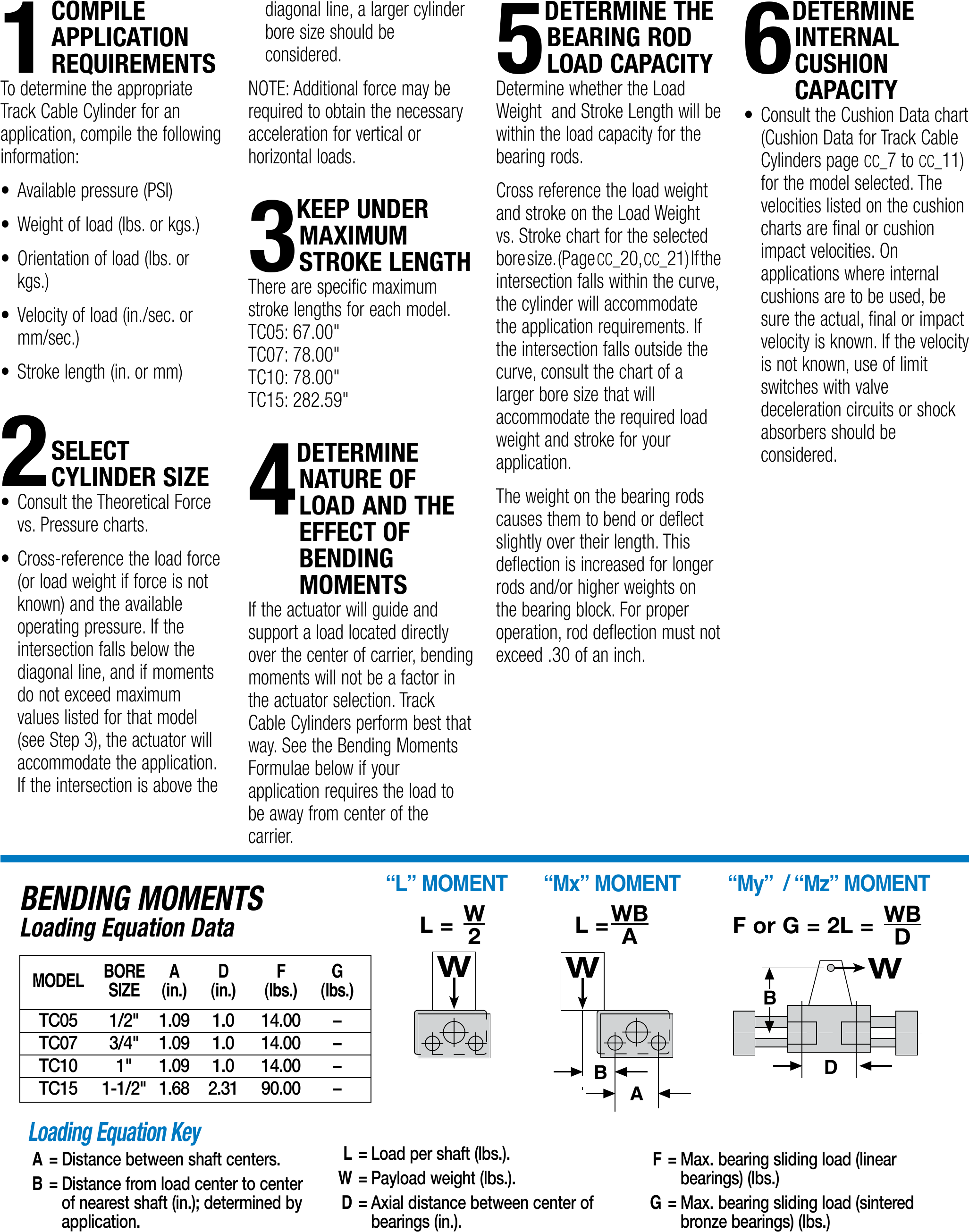

Pneumatic Actuator Application Checklist
