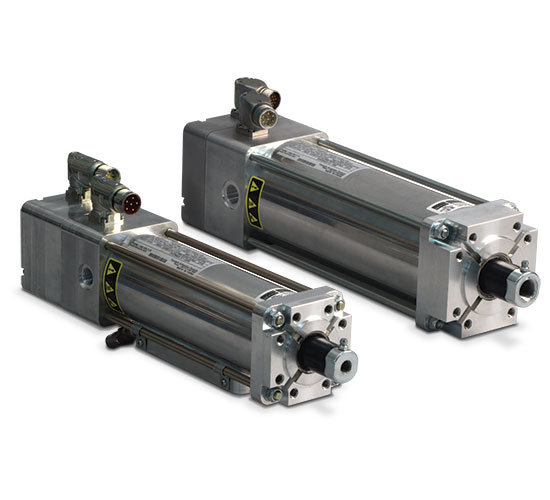

ServoWeld® SWA & SWB integrated servo spot welding Actuators offer light weight with high performance

Tolomatic's ServoWeld family of lighter weight integrated servo motor actuators for resistance spot welding (RSW) provide a cost-effective actuator design and best-in-class performance. SWA/B actuators provide users the lowest lifetime cost (lowest cost per spot weld) by providing the highest quality welds (best force repeatability) combined with the longest lasting actuators. ServoWeld SWA/B integrated servo spot welding actuators are highly efficient and the broad product family has many choices to optimize weight and performance.

SWA/SWB integrated servo motor actuators offer:

• 20+ million cycles for SWA models and 10+ million cycles for SWB

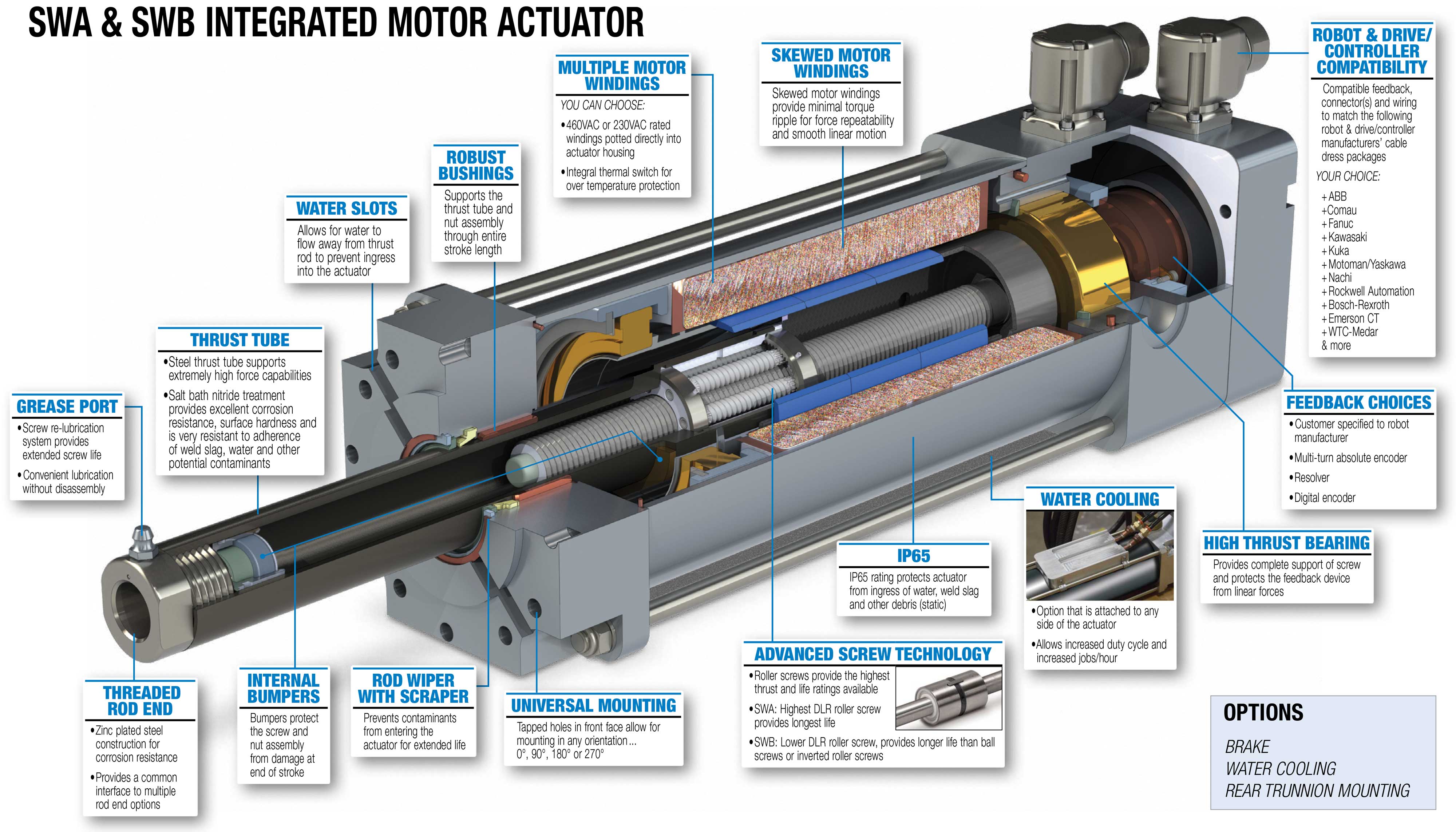

• Standard roller screw with highest dynamic load rating for more welds over competing roller screws, ball screws or pneumatic actuators

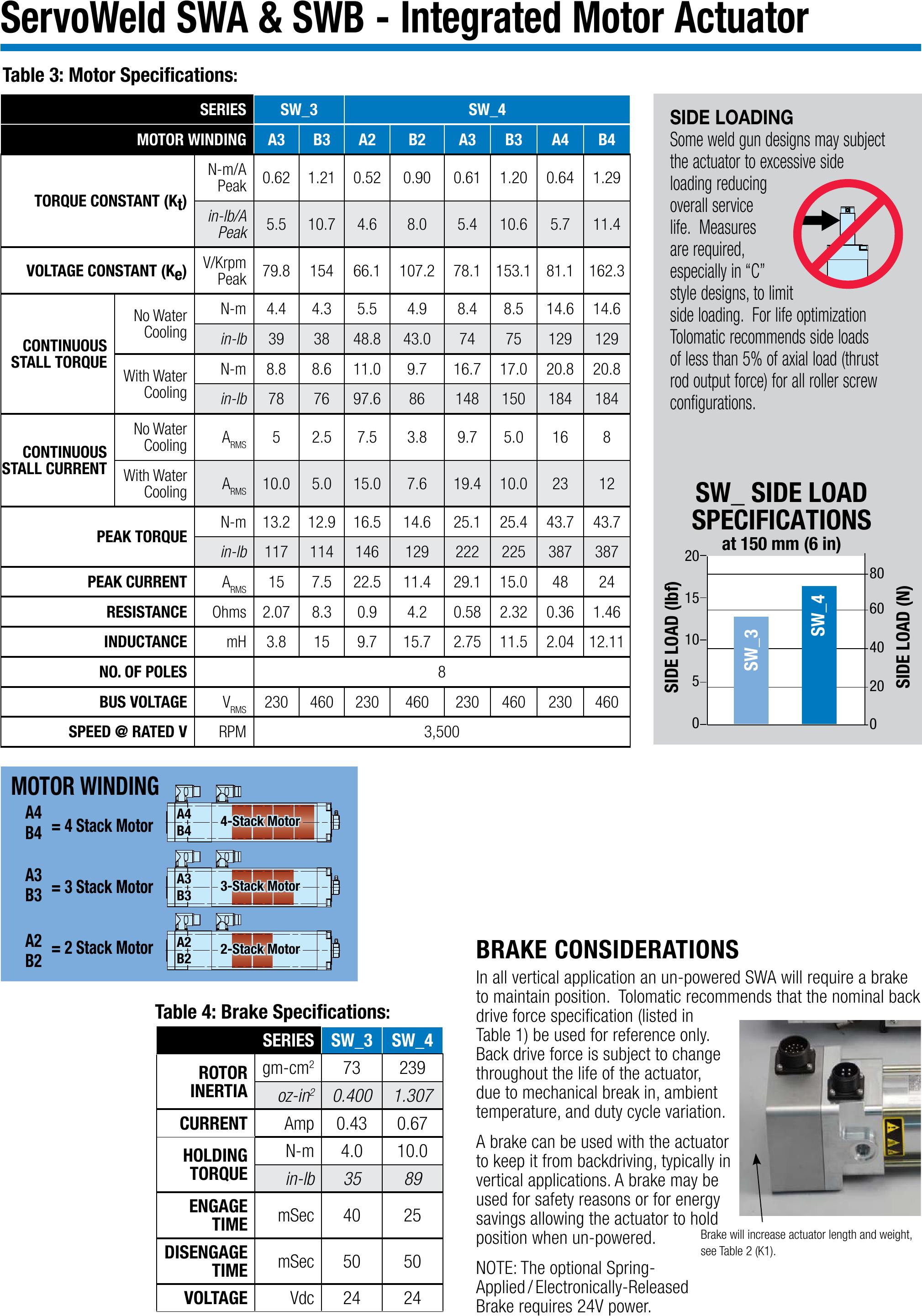

• Skewed motor windings designed for welding minimizes motor cogging for the best force repeatability
• Light-weight actuator design
• Forces to 4,000 lbf (17.8 kN)
• Optional water cooling
