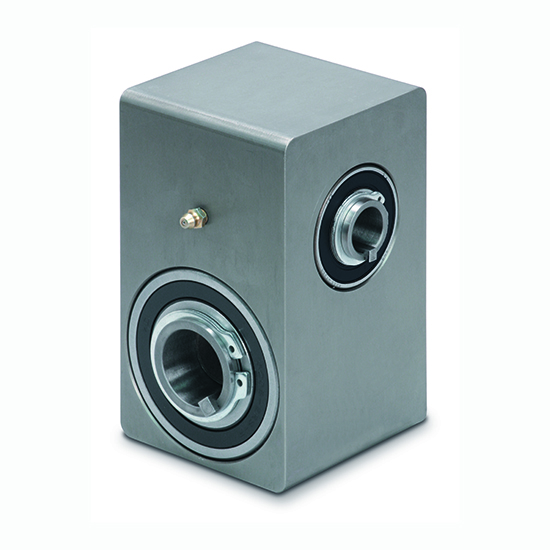

Slide-Rite® Standard 2 to 1 Ratio Right Angle Gearboxes

Slide-Rite: Standard 2:1

Slide-Rite® Standard 2 to 1 Ratio Right Angle Gearboxes

Tolomatic's standard size 2 to 1 Slide-Rite® right angle gearbox delivers up to 541 in-lbs (61 Nm) of torque depending on input RPMs.

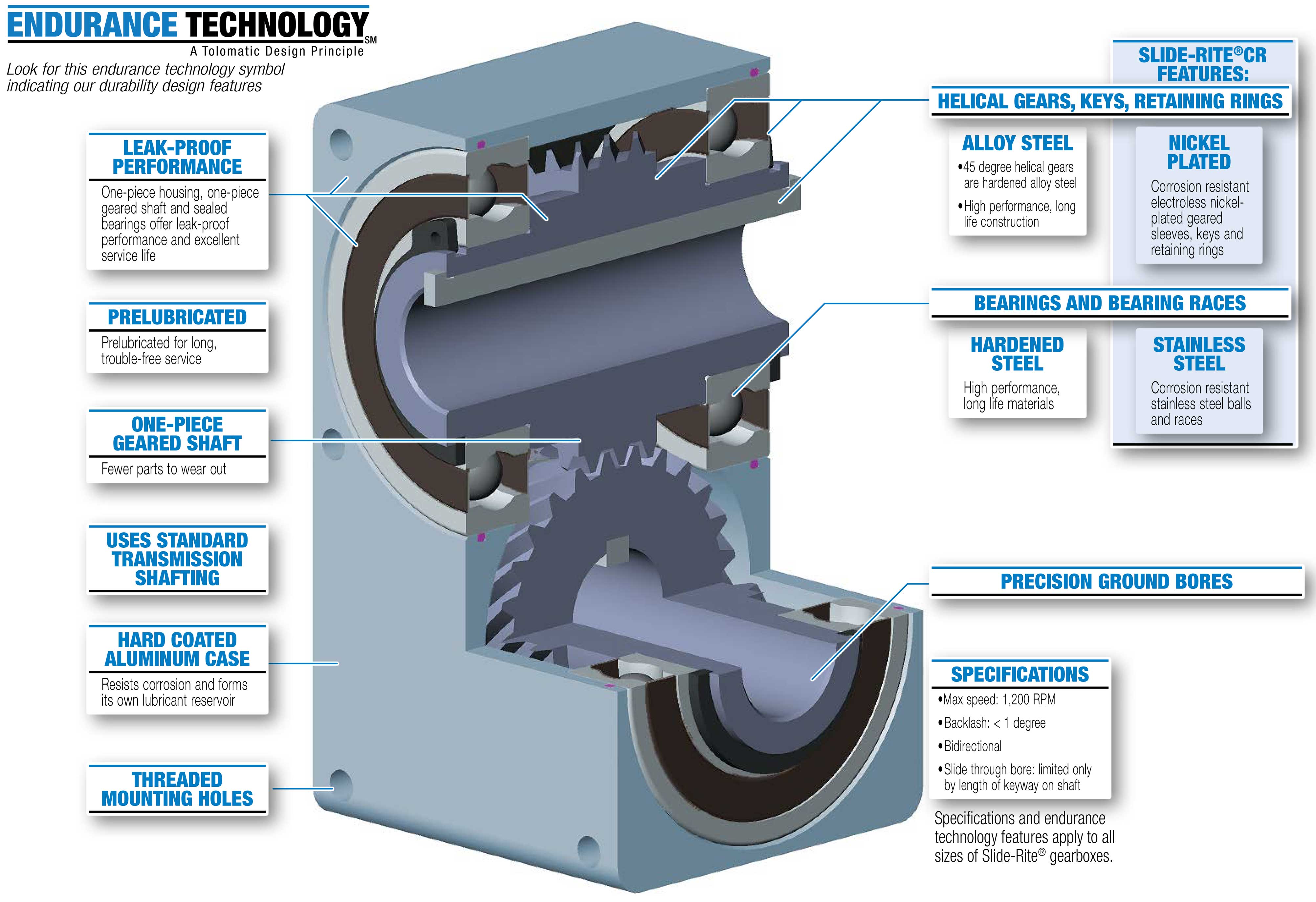

  • High torque ball bearing design
  • Solid one-piece aluminum housing seals gears from outside contaminants for smooth operation
  • Right- or left-hand rotation to convert power either direction
  • Easily slides axially along the drive or driven shaft for flexible positioning
  • Alloy steel helical gears for high performance

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

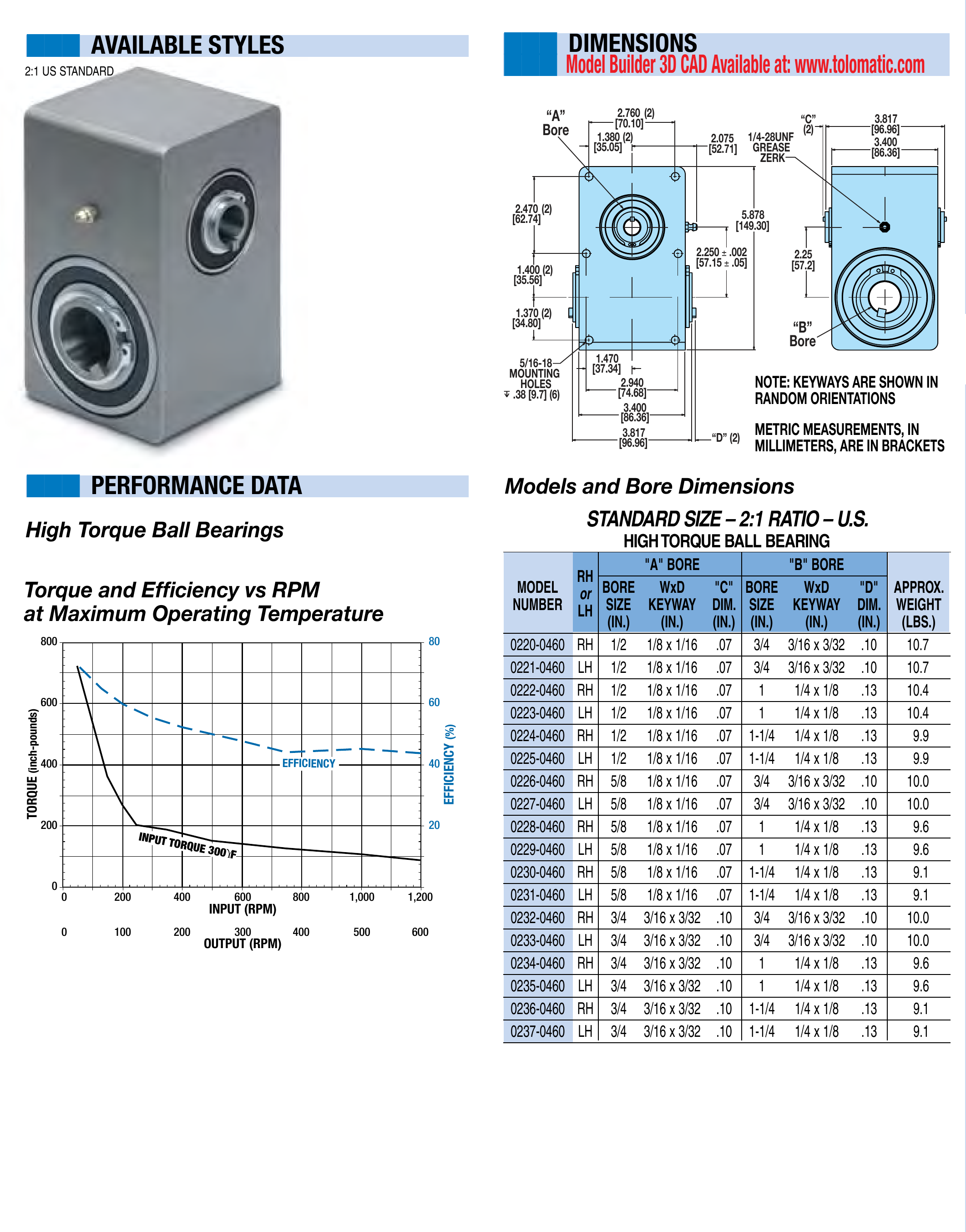

Part # Description WeightRotation"A" Bore Size"A" Bore Keyway"C" DIM"B" Bore Size"B" Bore Keyway"D" DIM Cart
0220-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.7 lbsRH1/2"1/8" x 1/16".07"3/4"3/16" x 3/32".10"
0221-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.7 lbsLH1/2"1/8" x 1/16".07"3/4"3/16" x 3/32".10"
0222-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.4 lbsRH1/2"1/8" x 1/16".07"1"1/4" x 1/8".13"
0223-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.4 lbsLH1/2"1/8" x 1/16".07"1"1/4" x 1/8".13"
0224-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.9 lbsRH1/2"1/8" x 1/16".07"1-1/4"1/4" x 1/8".13"
0225-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.9 lbsLH1/2"1/8" x 1/16".07"1-1/4"1/4" x 1/8".13"
0226-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.0 lbsRH5/8"1/8" x 1/16".07"3/4"3/16" x 3/32".10"
0227-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.0 lbsLH5/8"1/8" x 1/16".07"3/4"3/16" x 3/32".10"
0228-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.6 lbsRH5/8"1/8" x 1/16".07"1"1/4" x 1/8".13"
0229-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.6 lbsLH5/8"1/8" x 1/16".07"1"1/4" x 1/8".13"
0230-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.1 lbsRH5/8"1/8" x 1/16".07"1-1/4"1/4" x 1/8".13"
0231-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.1 lbsLH5/8"1/8" x 1/16".07"1-1/4"1/4" x 1/8".13"
0232-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.0 lbsRH3/4"3/16" x 3/32".10"3/4"3/16" x 3/32".10"
0233-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 10.0 lbsLH3/4"3/16" x 3/32".10"3/4"3/16" x 3/32".10"
0234-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.6 lbsRH3/4"3/16" x 3/32".10"1"1/4" x 1/8".13"
0235-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.6 lbsLH3/4"3/16" x 3/32".10"1"1/4" x 1/8".13"
0236-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.1 lbsRH3/4"3/16" x 3/32".10"1-1/4"1/4" x 1/8".13"
0237-0460 Slide-Rite: Standard 2:1 (U.S. Customary) 9.1 lbsLH3/4"3/16" x 3/32".10"1-1/4"1/4" x 1/8".13"
