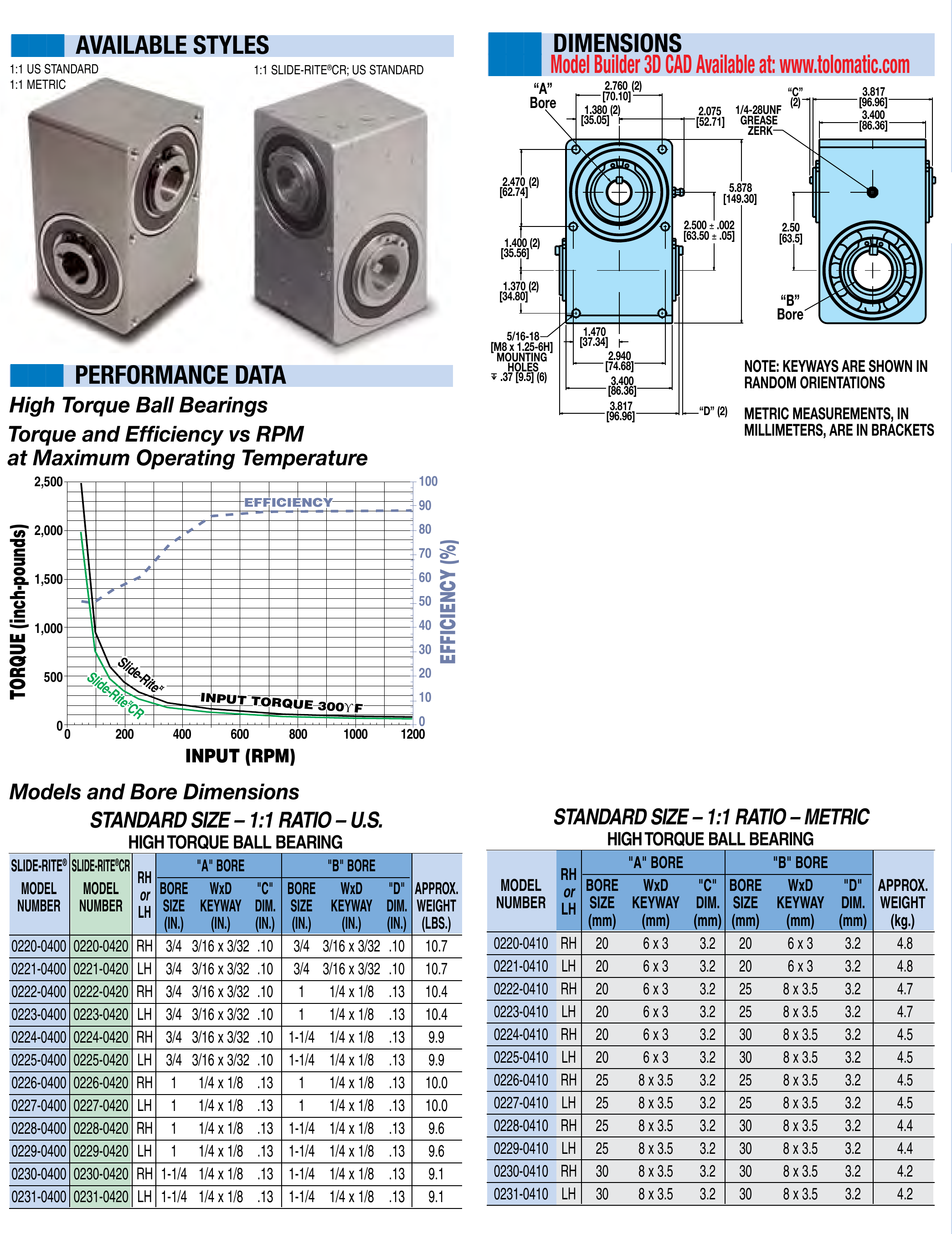

| 0220-0400 |

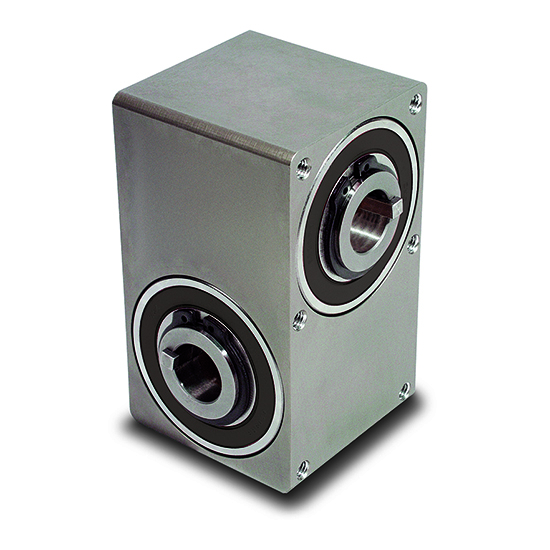

Slide-Rite: Standard 1:1 (U.S. Customary) |
10.7 lbs | RH | 3/4" | 3/16" x 3/32" | .10" | 3/4" | 3/16" x 3/32" | .10" |
|
| 0220-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.8 kg | RH | 20 mm | 6 x 3 mm | 3.2 mm | 20 mm | 6 x 3 mm | 3.2 mm |
|
| 0221-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
10.7 lbs | LH | 3/4" | 3/16" x 3/32" | .10" | 3/4" | 3/16" x 3/32" | .10" |
|
| 0221-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.8 kg | LH | 20 mm | 6 x 3 mm | 3.2 mm | 20 mm | 6 x 3 mm | 3.2 mm |
|
| 0222-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
10.4 lbs | RH | 3/4" | 3/16" x 3/32" | .13" | 1" | 1/4" x 1/8" | .13" |
|
| 0222-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.7 kg | RH | 20 mm | 6 x 3 mm | 3.2 mm | 25 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0223-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
10.4 lbs | LH | 3/4" | 3/16" x 3/32" | .13" | 1" | 1/4" x 1/8" | .13" |
|
| 0223-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.7 kg | LH | 20 mm | 6 x 3 mm | 3.2 mm | 25 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0224-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
9.9 lbs | RH | 3/4" | 3/16" x 3/32" | .10" | 1-1/4" | 1/4" x 1/8" | .13" |
|
| 0224-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.5 kg | LH | 20 mm | 6 x 3 mm | 3.2 mm | 30 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0225-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
9.9 lbs | LH | 3/4" | 3/16" x 3/32" | .10" | 1-1/4" | 1/4" x 1/8" | .13" |
|
| 0225-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.5 kg | LH | 20 mm | 6 x 3 mm | 3.2 mm | 30 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0226-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
10.0 lbs | RH | 1" | 1/4" x 1/8" | .13" | 1" | 1/4" x 1/8" | .13" |
|
| 0226-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.5 kg | RH | 25 mm | 8 x 3.5 mm | 3.2 mm | 25 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0227-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
10.0 lbs | LH | 1" | 1/4" x 1/8" | .13" | 1" | 1/4" x 1/8" | .13" |
|
| 0227-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.5 kg | LH | 25 mm | 8 x 3.5 mm | 3.2 mm | 25 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0228-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
9.6 lbs | RH | 1" | 1/4" x 1/8" | .13" | 1-1/4" | 1/4" x 1/8" | .13" |
|
| 0228-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.4 kg | RH | 25 mm | 8 x 3.5 mm | 3.2 mm | 30 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0229-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
9.6 lbs | LH | 1" | 1/4" x 1/8" | .13" | 1-1/4" | 1/4" x 1/8" | .13" |
|
| 0229-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.4 kg | LH | 25 mm | 8 x 3.5 mm | 3.2 mm | 30 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0230-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
9.1 lbs | RH | 1-1/4" | 1/4" x 1/8" | .13" | 1-1/4" | 1/4" x 1/8" | .13" |
|
| 0230-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.2 kg | RH | 30 mm | 8 x 3.5 mm | 3.2 mm | 30 mm | 8 x 3.5 mm | 3.2 mm |
|
| 0231-0400 |
Slide-Rite: Standard 1:1 (U.S. Customary) |
9.1 lbs | LH | 1-1/4" | 1/4" x 1/8" | .13" | 1-1/4" | 1/4" x 1/8" | .13" |
|
| 0231-0410 |
Slide-Rite: Standard 1:1 (Metric) |
4.2 kg | LH | 30 mm | 8 x 3.5 mm | 3.2 mm | 30 mm | 8 x 3.5 mm | 3.2 mm |
|
