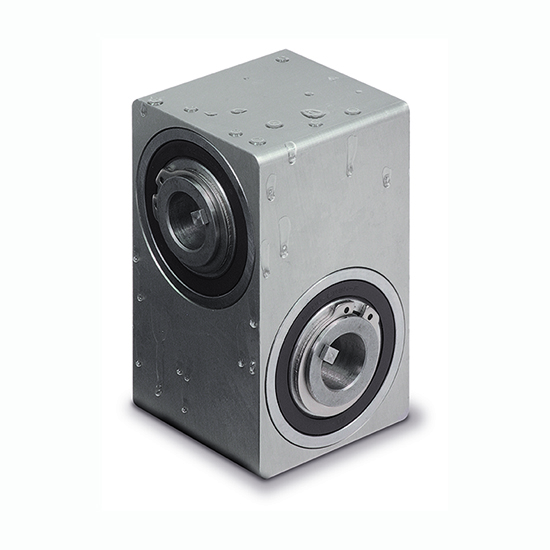

Slide-Rite® CR Corrosion Resistant Standard 1 to 1 Ratio Right Angle Gearboxes

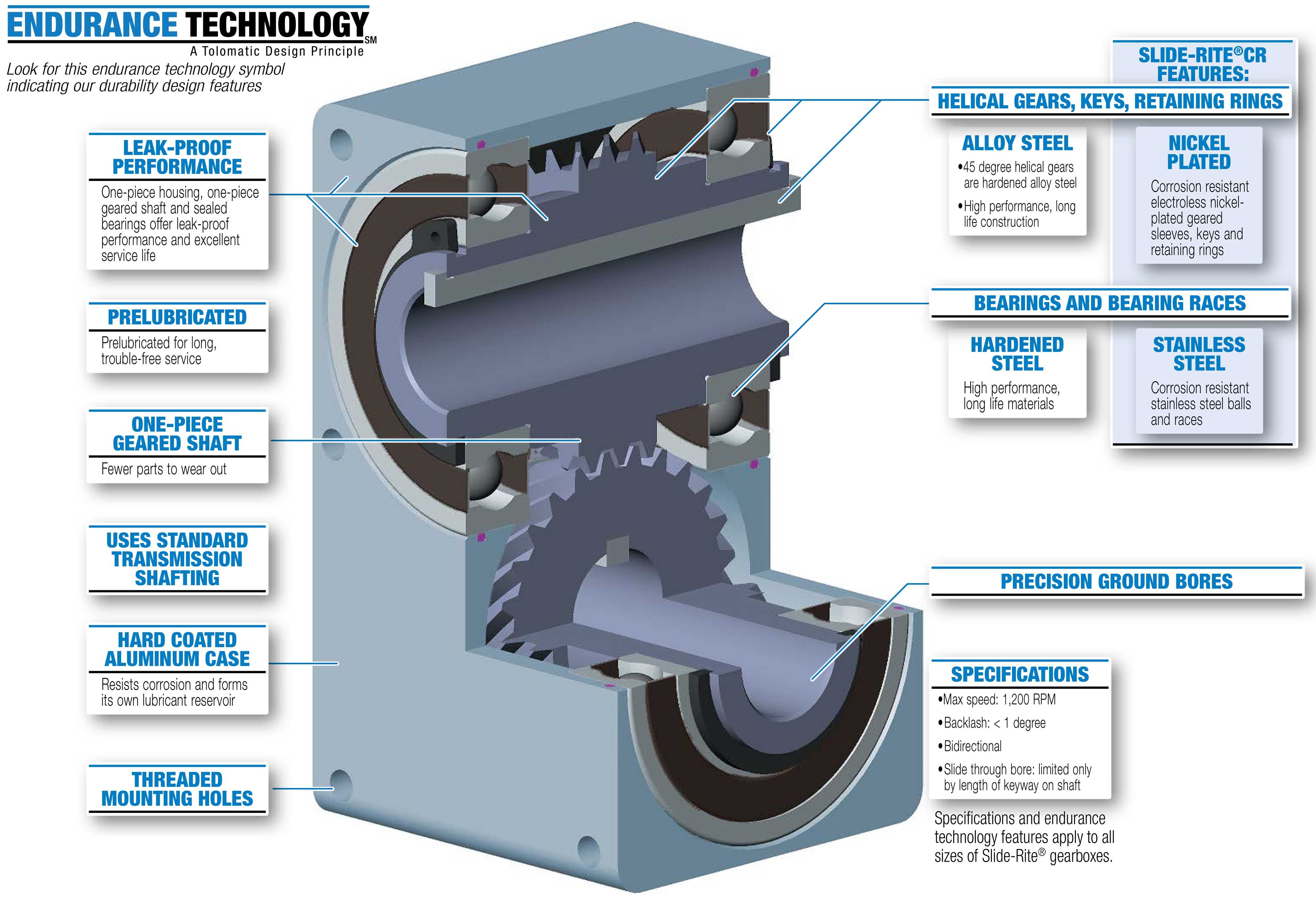

The Slide-Rite® CR corrosion resistant standard size 1 to 1 gearbox offers the same performance as the standard 1:1 gearbox but with corrosion resistant components.

  • High torque ball bearing design
  • Solid one-piece aluminum housing seals gears from outside contaminants for smooth operation
  • Corrosion resistant nickel plated geared sleeves, keys and retaining rings
  • Corrosion resistant stainless steel balls and races
  • Right- or left-hand rotation to convert power either direction
  • Easily slides axially along the drive or driven shaft for flexible positioning
  • Leakproof performance for excellent service life

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

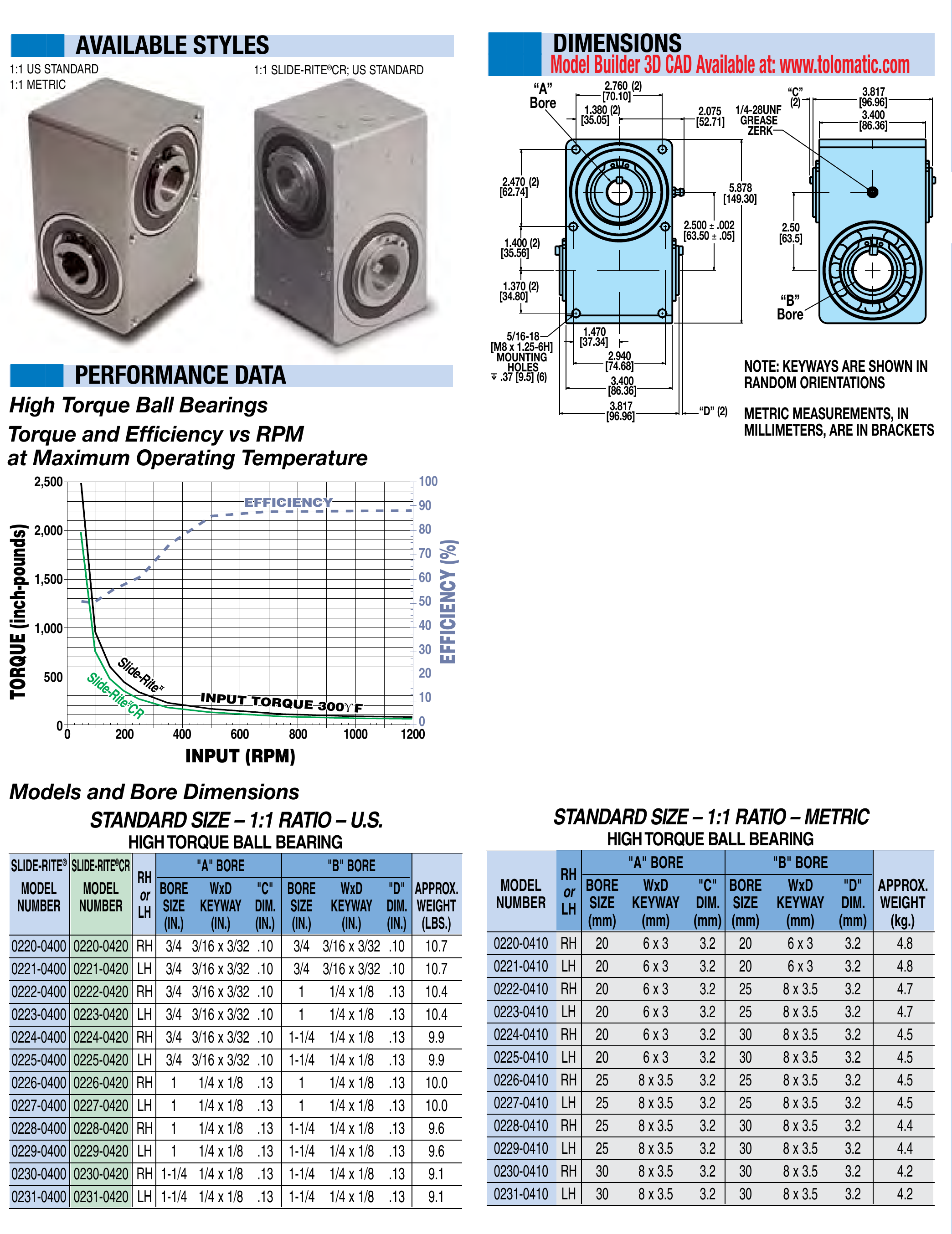

Part # Description WeightRotation"A" Bore Size"A" Bore Keyway"C" DIM"B" Bore Size"B" Bore Keyway"D" DIM Cart
0220-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 10.7 lbsRH3/4"3/16" x 3/32".10"3/4"3/16" x 3/32".10"
0221-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 10.7 lbsLH3/4"3/16" x 3/32".10"3/4"3/16" x 3/32".10"
0222-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 10.4 lbsRH3/4"3/16" x 3/32".10"1"1/4" x 1/8".13"
0223-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 10.4 lbsLH3/4"3/16" x 3/32".10"1"1/4" x 1/8".13"
0224-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 9.9 lbsRH3/4"3/16" x 3/32".10"1-1/4"1/4" x 1/8".13"
0225-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 9.9 lbsLH3/4"3/16" x 3/32".10"1-1/4"1/4" x 1/8".13"
0226-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 10.0 lbsRH1"1/4" x 1/8".13"1"1/4" x 1/8".13"
0227-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 10.0 lbsLH1"1/4" x 1/8".13"1"1/4" x 1/8".13"
0228-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 9.6 lbsRH1"1/4" x 1/8".13"1-1/4"1/4" x 1/8".13"
0229-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 9.6 lbsLH1"1/4" x 1/8".13"1-1/4"1/4" x 1/8".13"
0230-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 9.1 lbsRH1-1/4"1/4" x 1/8".13"1-1/4"1/4" x 1/8".13"
0231-0420 Slide-Rite CR: Standard 1:1 (U.S. Customary) 9.1 lbsLH1-1/4"1/4" x 1/8".13"1-1/4"1/4" x 1/8".13"
