RSX Extreme Force Electric Linear Actuators

Replace hydraulics to eliminate messy leaks and increase system performance

The RSX family of extreme force electric linear actuators are more efficient and offer increased precision compared to hydraulic cylinders.  Tolomatic precision ground planetary roller screws are utilized to achieve long life and precision. The RSX platform is designed and tested for long life and reliable performance in demanding conditions including cold weather operation.

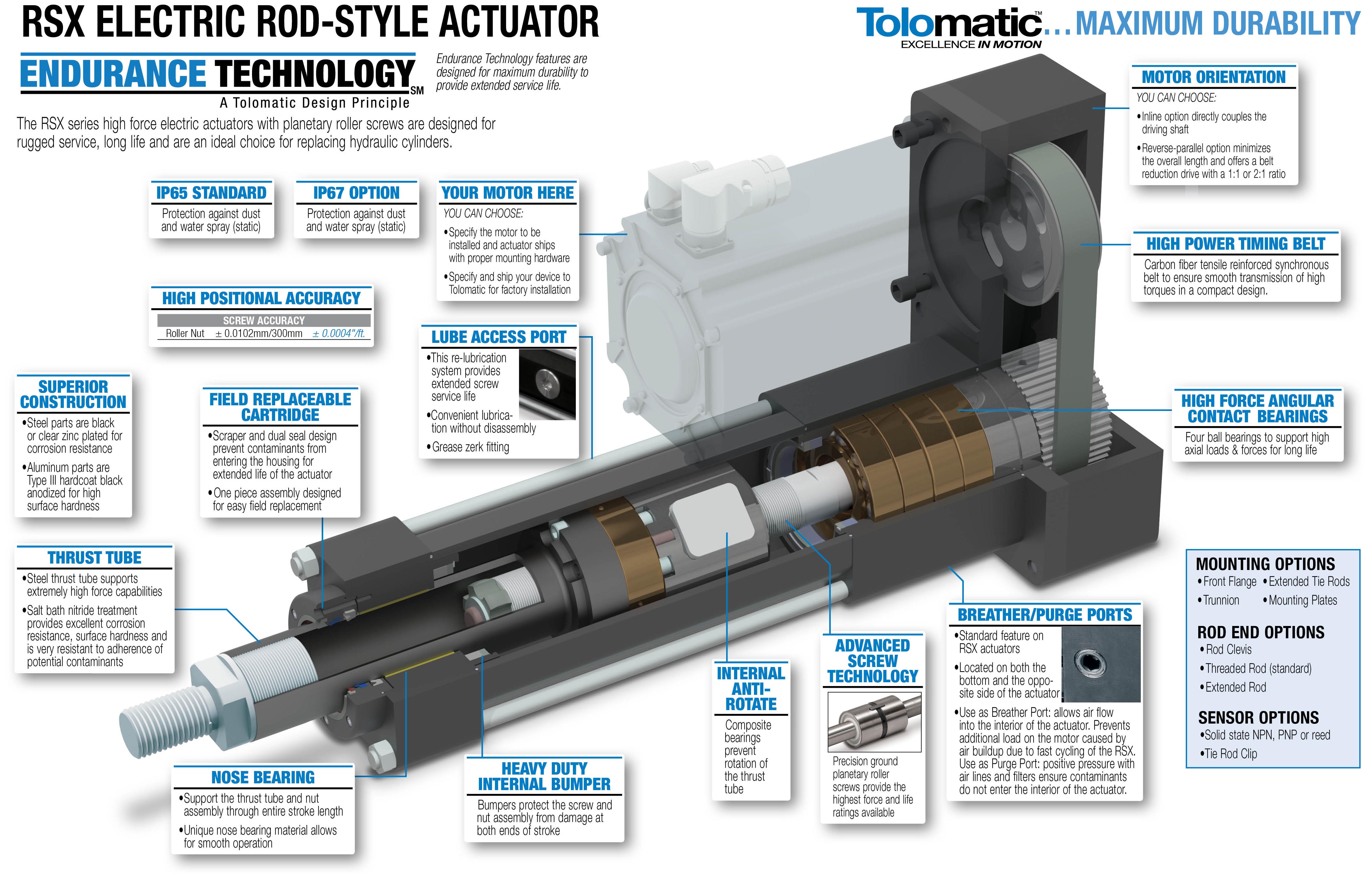

RSX extreme force electric linear actuators offer these features:
  • Planetary roller screw driven for long consistent life
  • Type III hard coat anodized aluminum housing to withstand demanding environments
  • Standard thrust rod anti-rotation feature
  • IP67 option to protect against dust and water ingress
  • Compatible with servo motors and gearboxes up to 215mm frame sizes

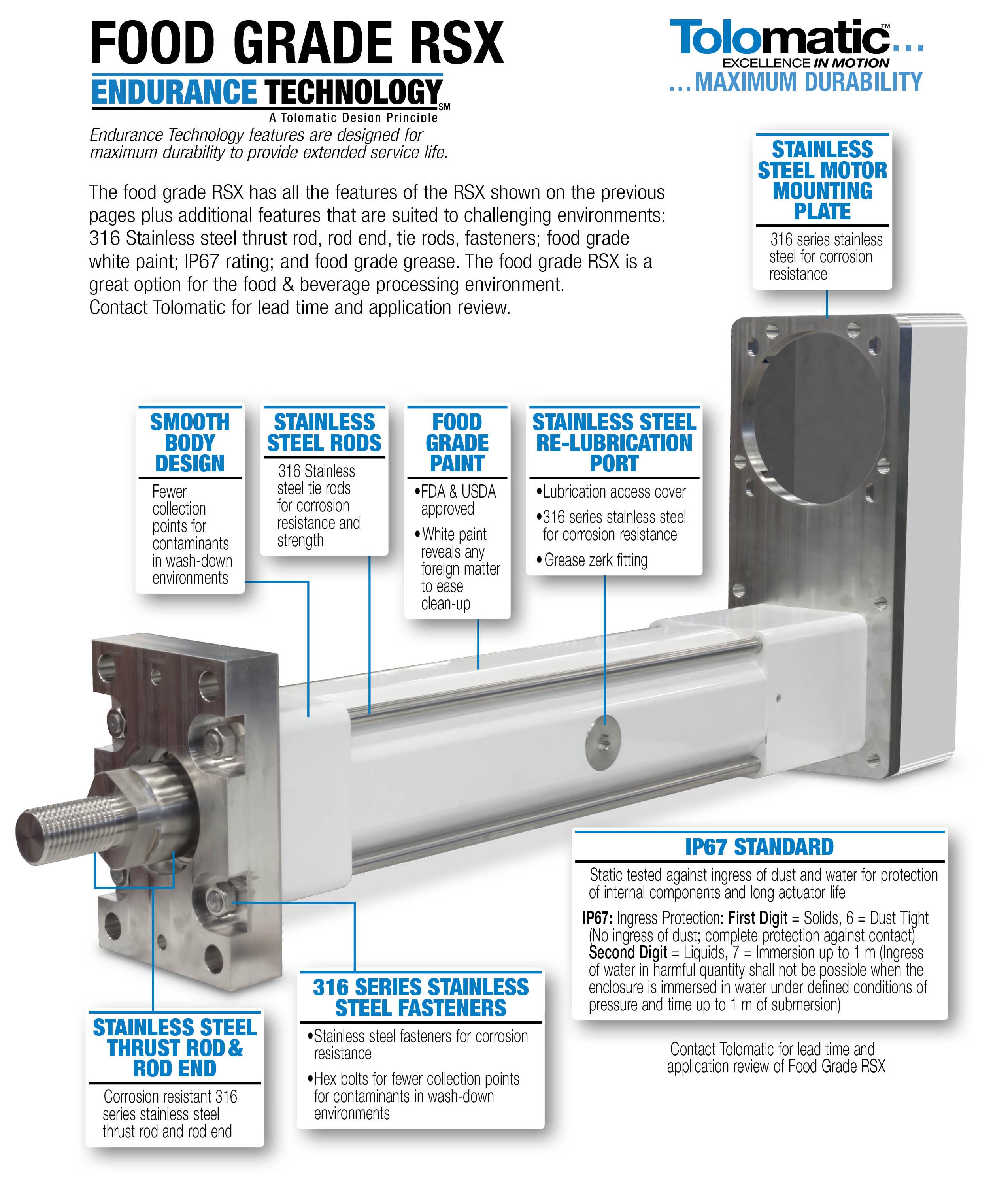

  • Food grade, white epoxy coating and stainless steel thrust rod option

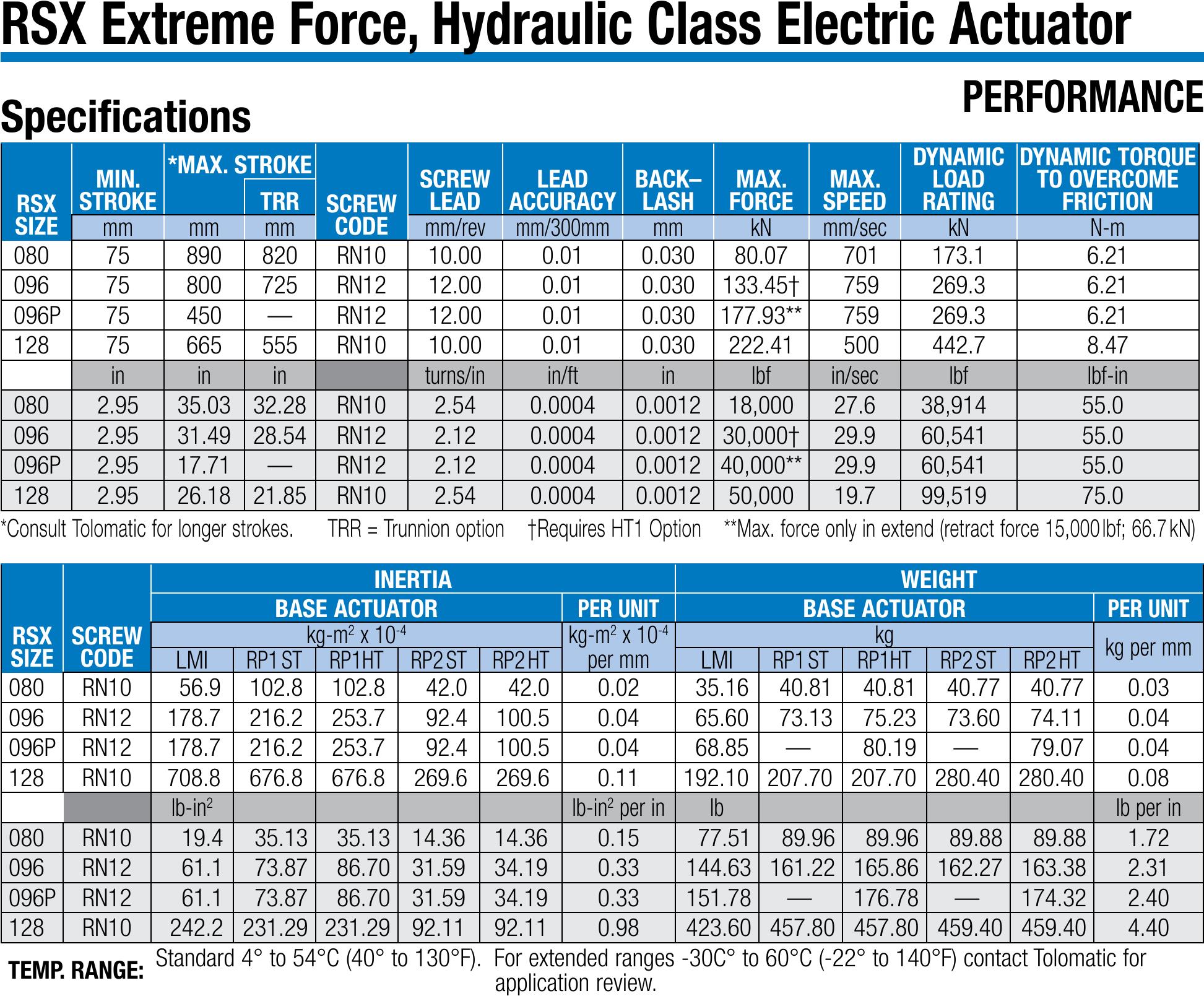

RSX Max Stroke

Size RSX 080  RSX 096 RSX 096P  RSX 128
Standard 35.03 in. 31.49 in. 17.71 in. 26.18 in.
Metric 890 mm 800 mm 450 mm 665 mm

RSX Max Force

Size RSX 080 RSX 096 RSX 096P RSX 128
Standard 18,000 lbf 30,000 lbf 40,000 lbf 50,000 lbf
Metric 80.1 kN 133.5 kN 178 kN 222.4 kN

RSX Max Speed

Size RSX 080 RSX 096 RSX 096P RSX 128
Standard 27.6 in/sec 29.9 in/sec 29.9 in/sec 19.7 in/sec
Metric 700 mm/sec 760 mm/sec 760 mm/sec 500 mm/sec
