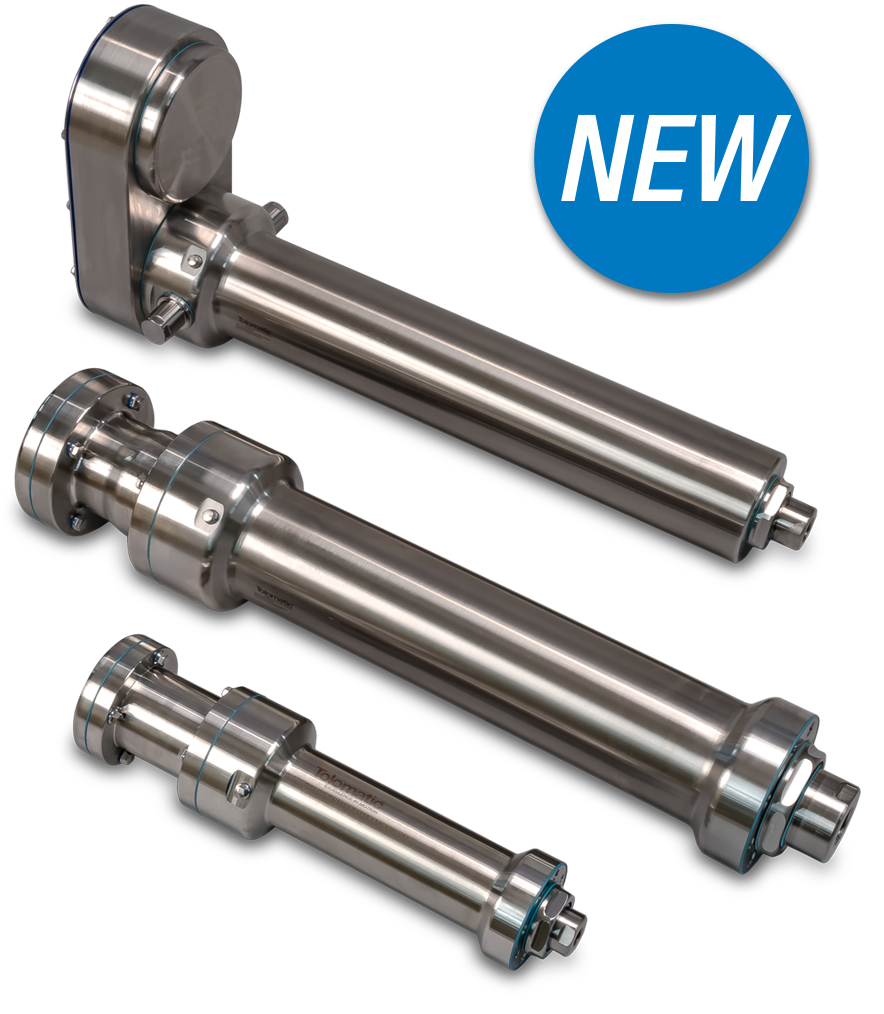

RSH Hygienic Electric Rod Style Actuators

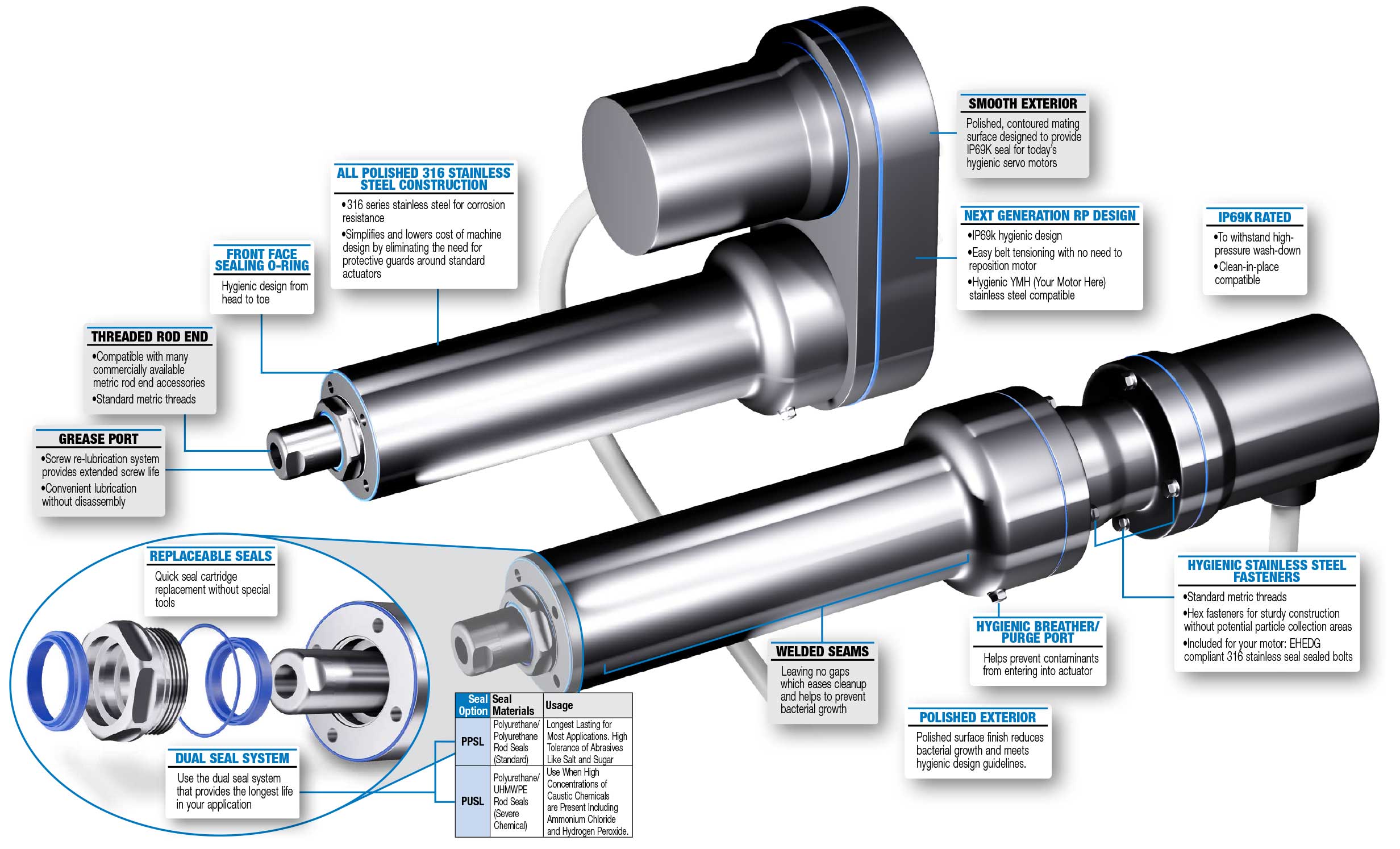

RSH hygienic electric actuators feature 316 stainless steel construction and IP69K

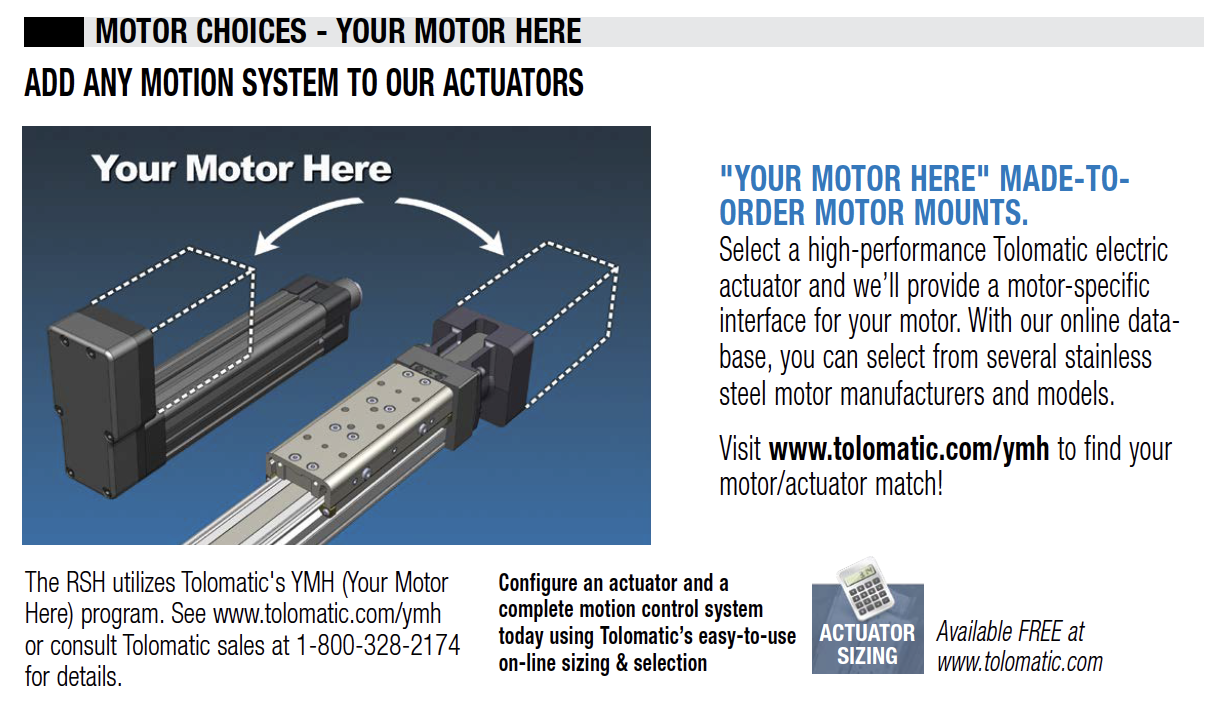

Tolomatic's line of hygienically designed all stainless steel electric actuators offer up to 7,943 lbf (35.3 kN) and they are the perfect solution for food and beverage applications where higher forces are required for pressing, pumping, cutting or slicing. Use the Tolomatic Your Motor Here® database to select from a wide variety of stainless steel motor manufacturers for a complete all stainless package.

  • 3 body sizes with 316 series stainless steel construction
  • Ball and roller screw options
  • Force/thrust capabilities up to 7,868 lbf (35 kN)
  • Stroke lengths up to 48 inches (1.2 m)
  • IP69K, clean in place compatible

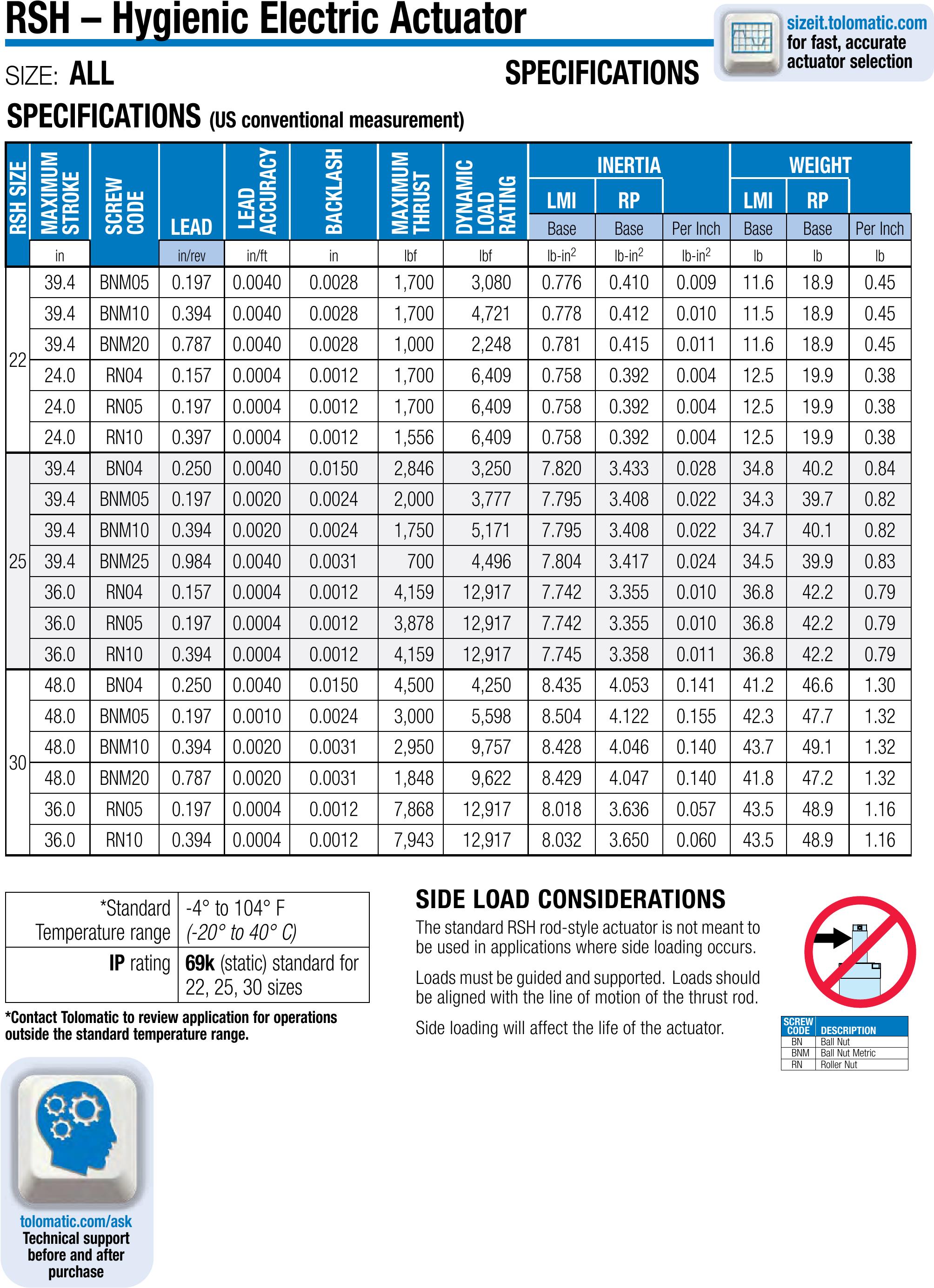

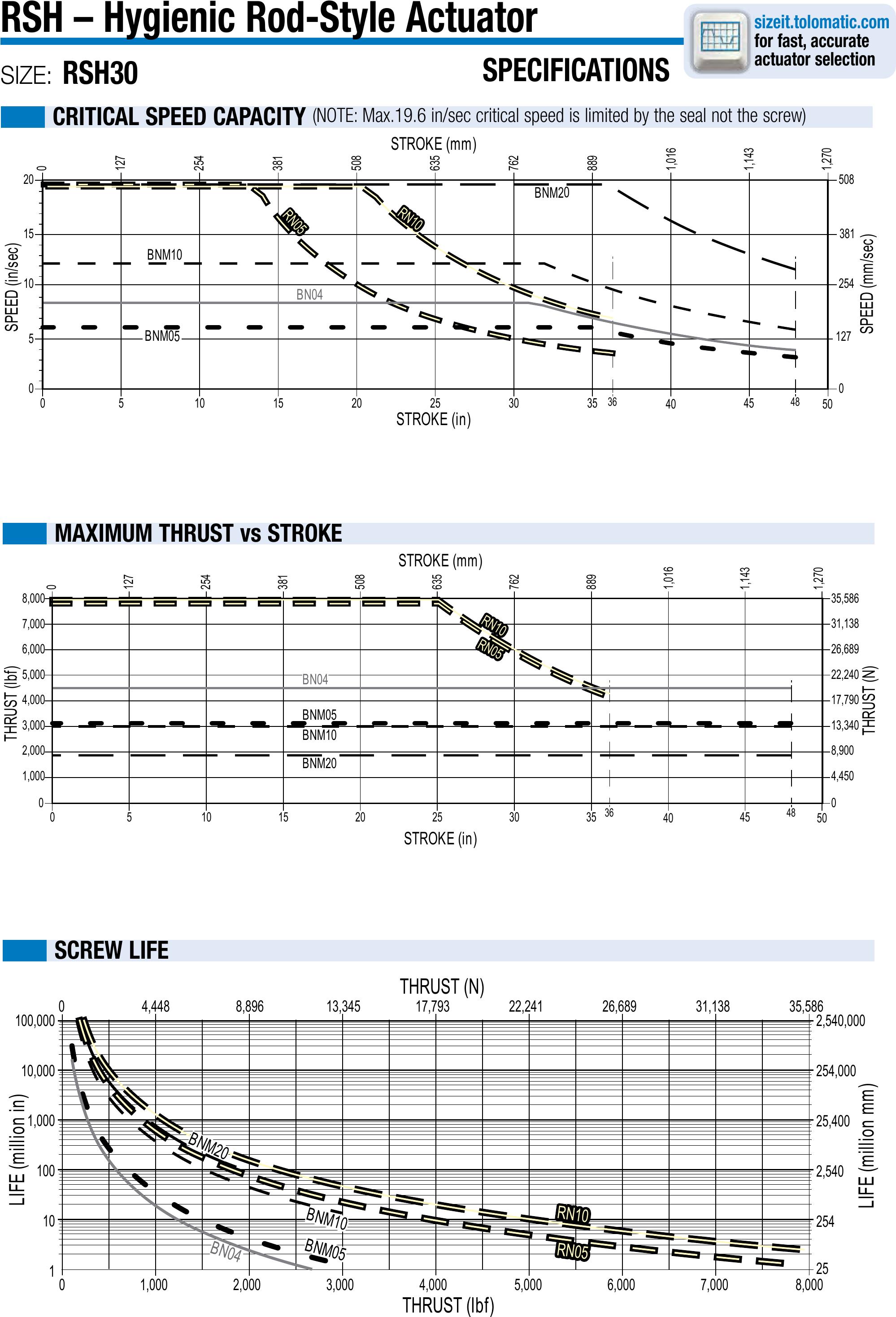

RSH Max Stroke

Size RSH 22 RSH 25 RSH 30
Standard 39.4 in. 39.4 in. 48 in.
Metric 1,000 mm 1,000 mm 1,219 mm

RSH Max Force

Size RSH 22 RSH 25 RSH 30
Standard 1,700 lbf 4,159 lbf 7,943 lbf
Metric 7,562 N 18,500 N 35,330 N

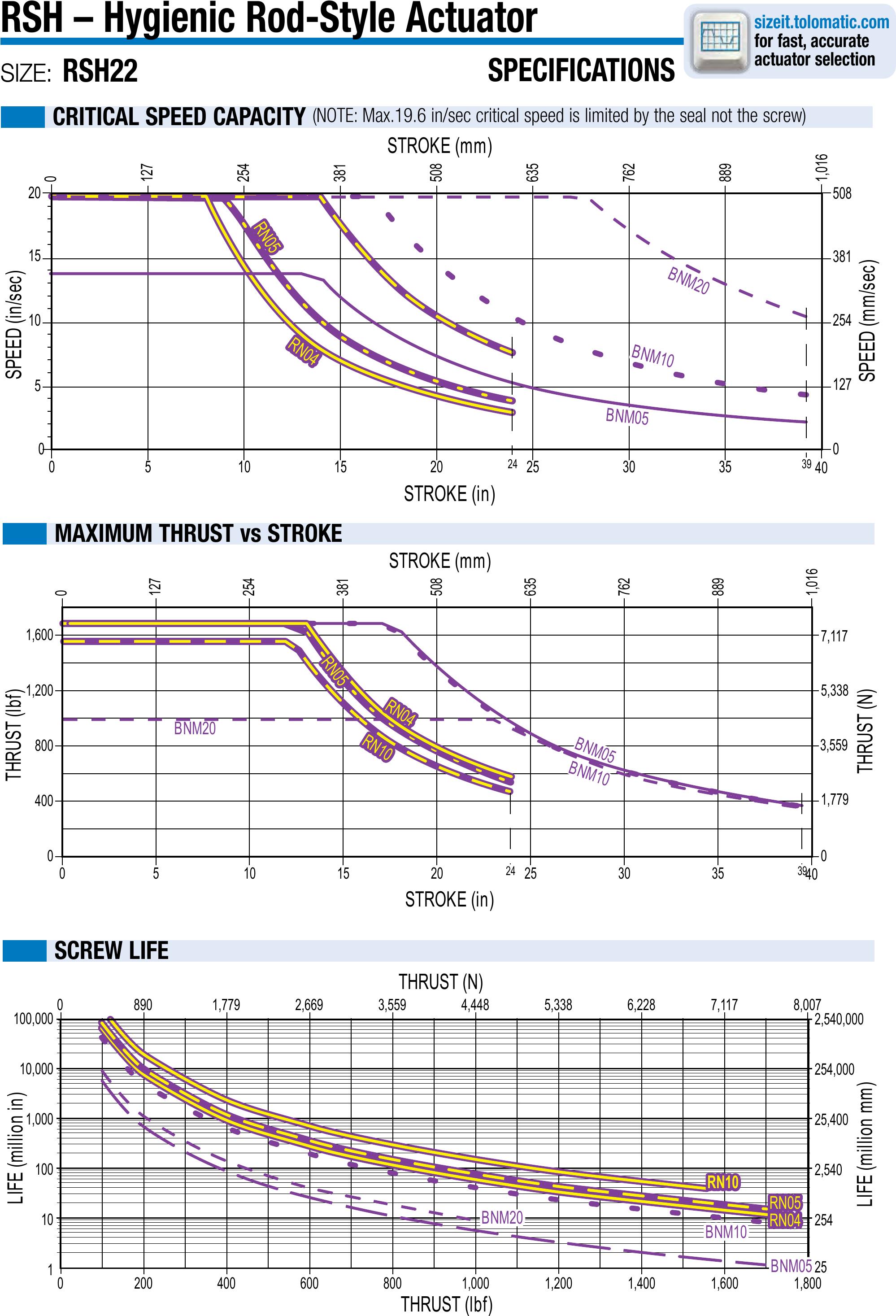

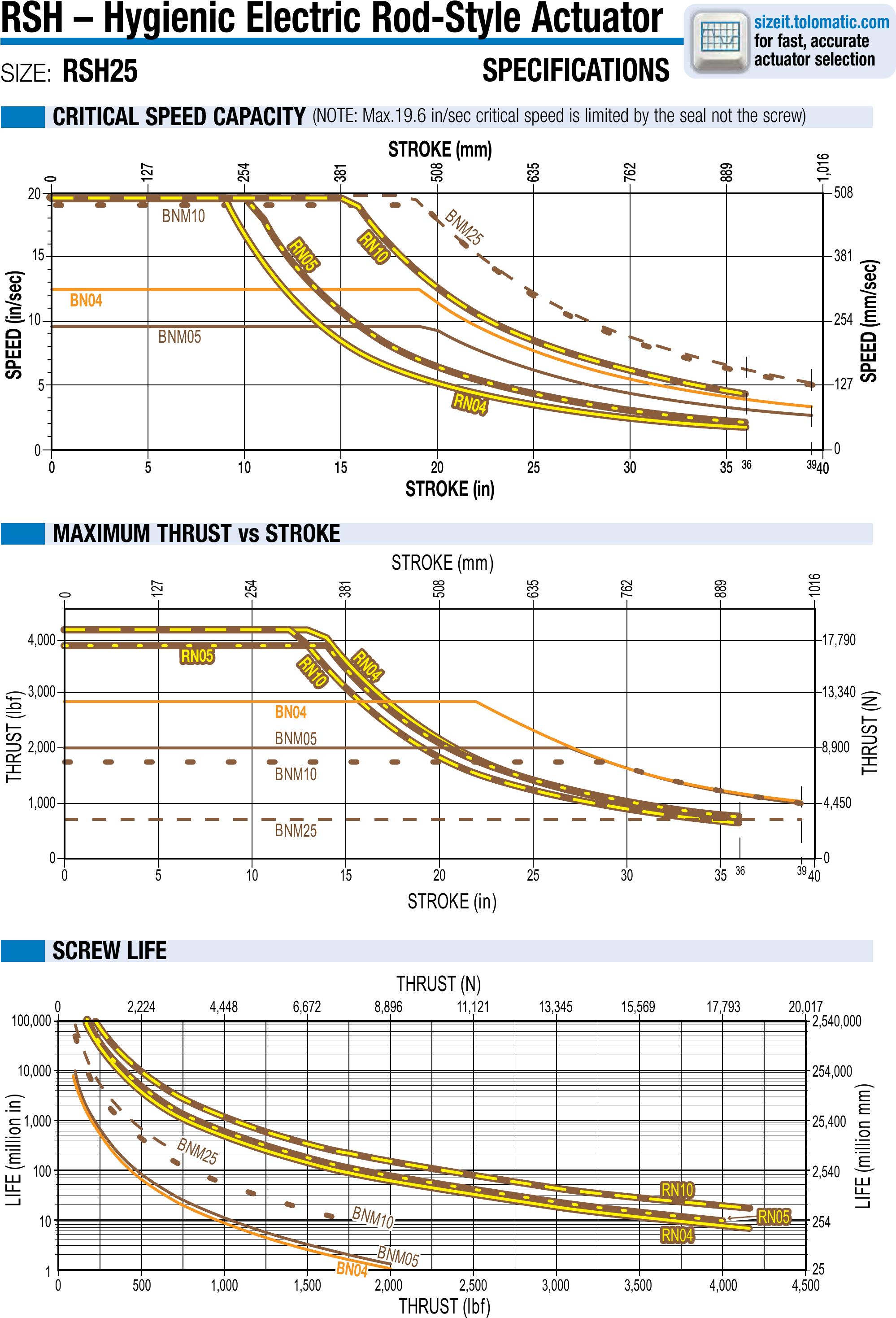

RSH Max Speed

Size RSH 22 RSH 25 RSH 30
Standard 19.6 in/sec 19.6 in/sec 19.6 in/sec
Metric 498 mm/sec 498 mm/sec 498 mm/sec
