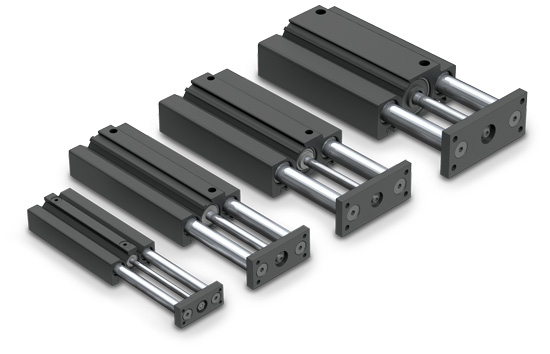

Power-Block 2 Guided Air Cylinders

The Power-Block 2 guided air cylinder offers stroke lengths up to 6 inches (154.2 mm) and thrusting capabilities over 300 lbs.

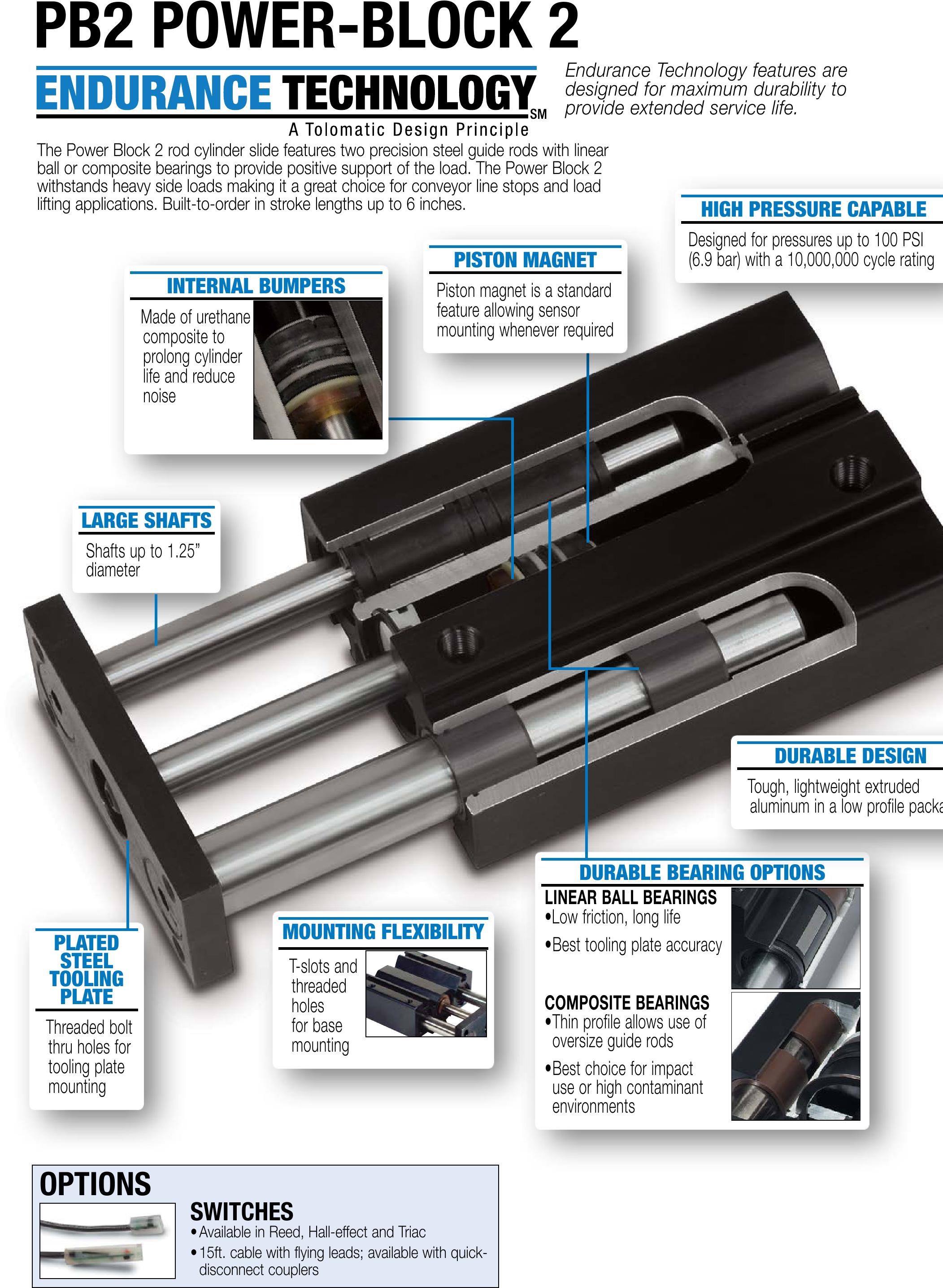

Tolomatic Power-Block 2 guided air cylinders provide increased power over the Power-Block series of thrusters. The longer stroke capablities make them good choices for a variety of pick-and-place and material handling applications.

  • Choice of linear ball or composite bearings
  • Six bore sizes for a wide range of force output capabilities

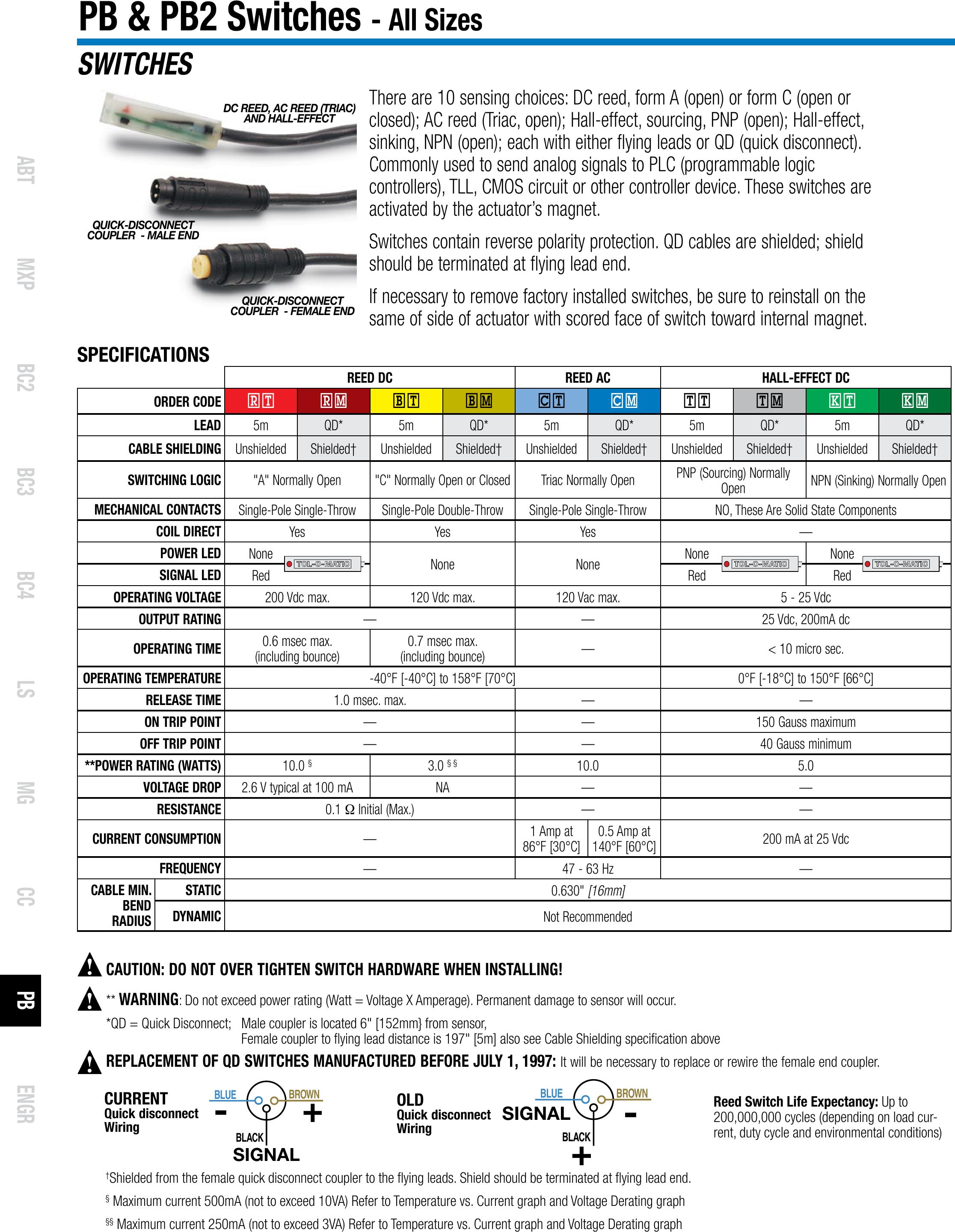

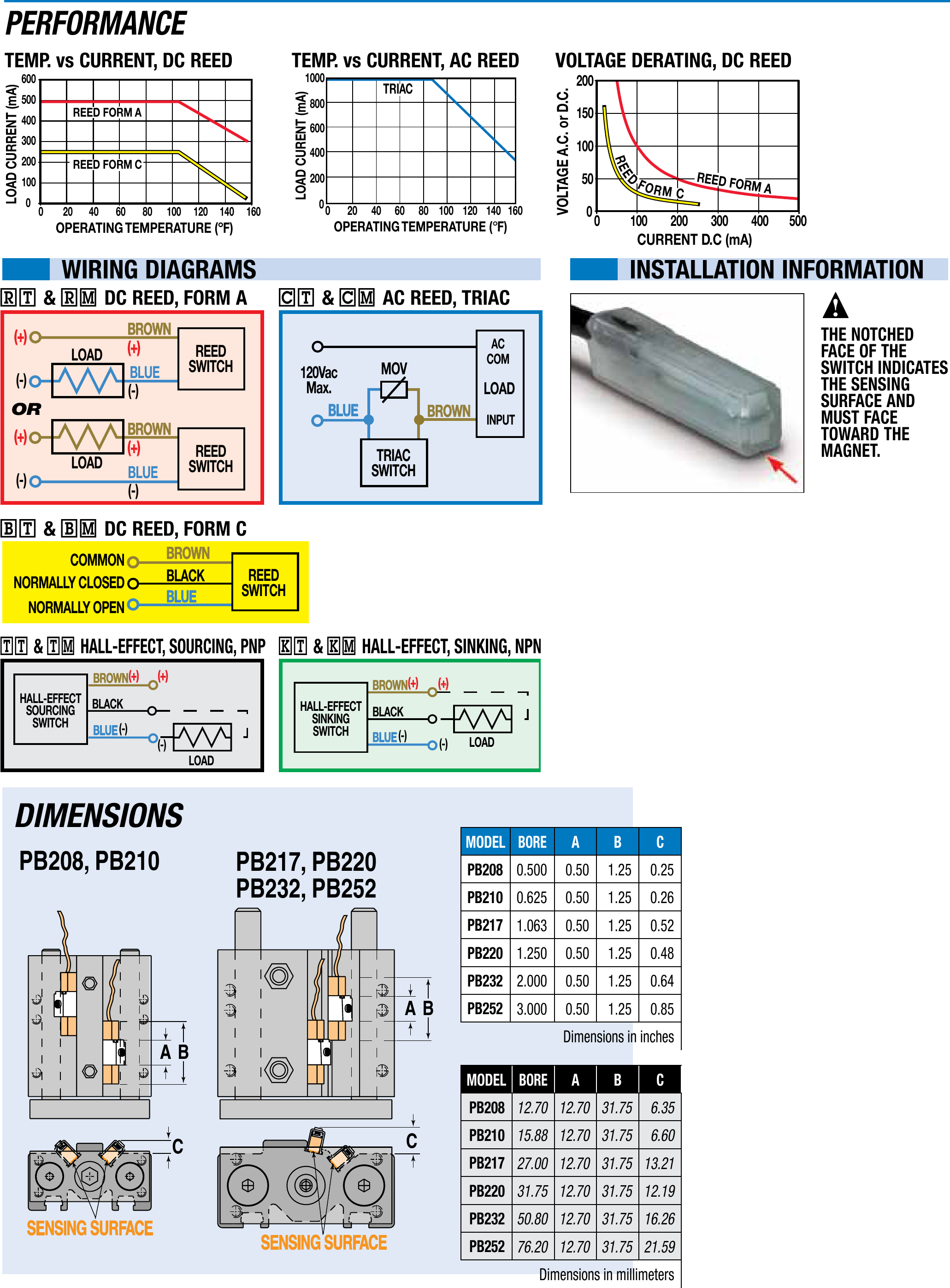

  • Available with Reed, Hall-effect or Triac switches

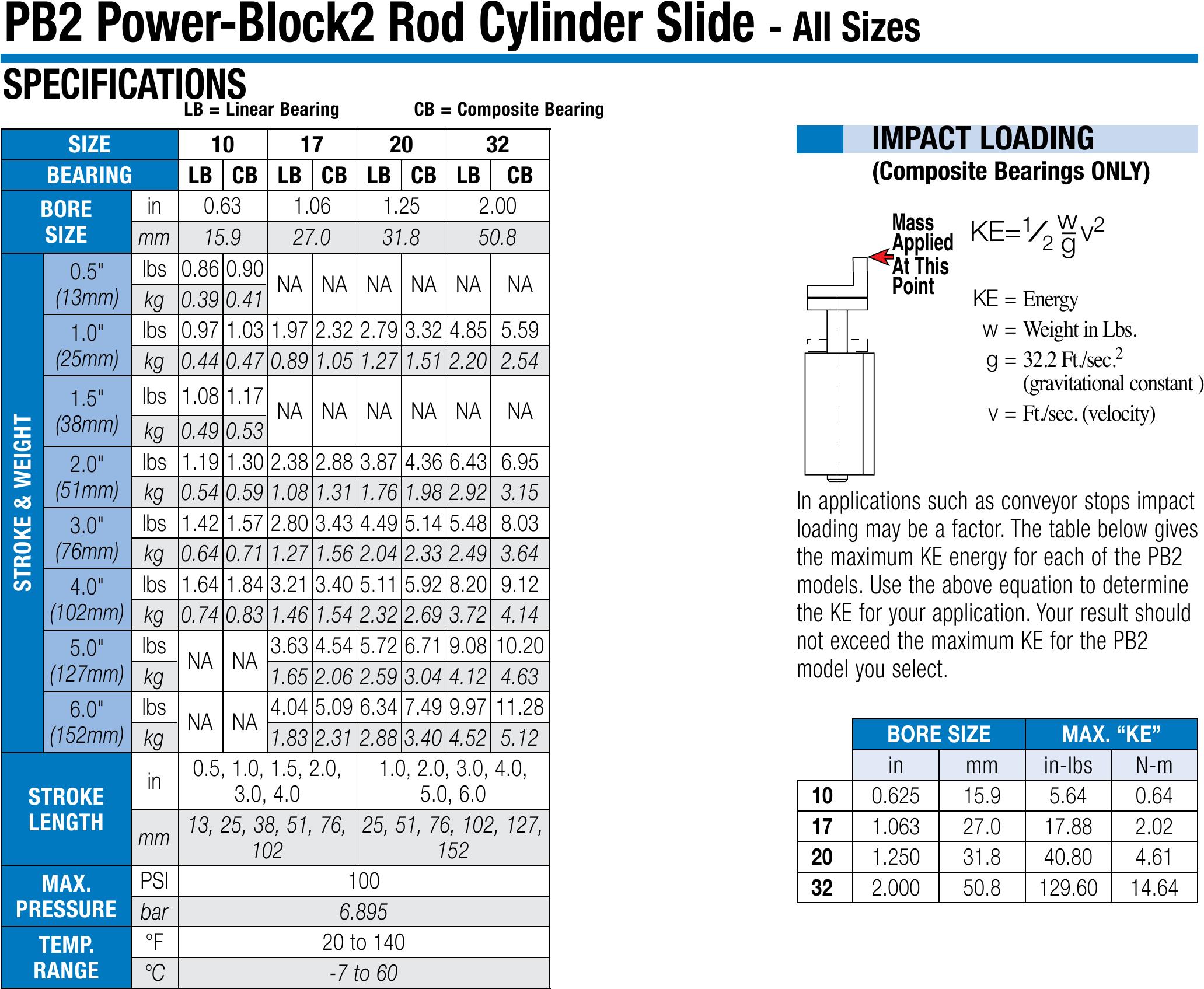

Power-Block 2 Bore Size
Size PB2 10 PB2 17 PB2 20 PB2 32
Standard 0.63 in 1.06 in 1.25 in 2.00 in
Metric 16 mm 27 mm 32 mm 51 mm

Power-Block 2 Max Stroke
Size PB2 10 PB2 17 PB2 20 PB2 32
Standard 4 in 6 in 6 in 6 in
Metric 102 mm 152 mm 152 mm 152 mm

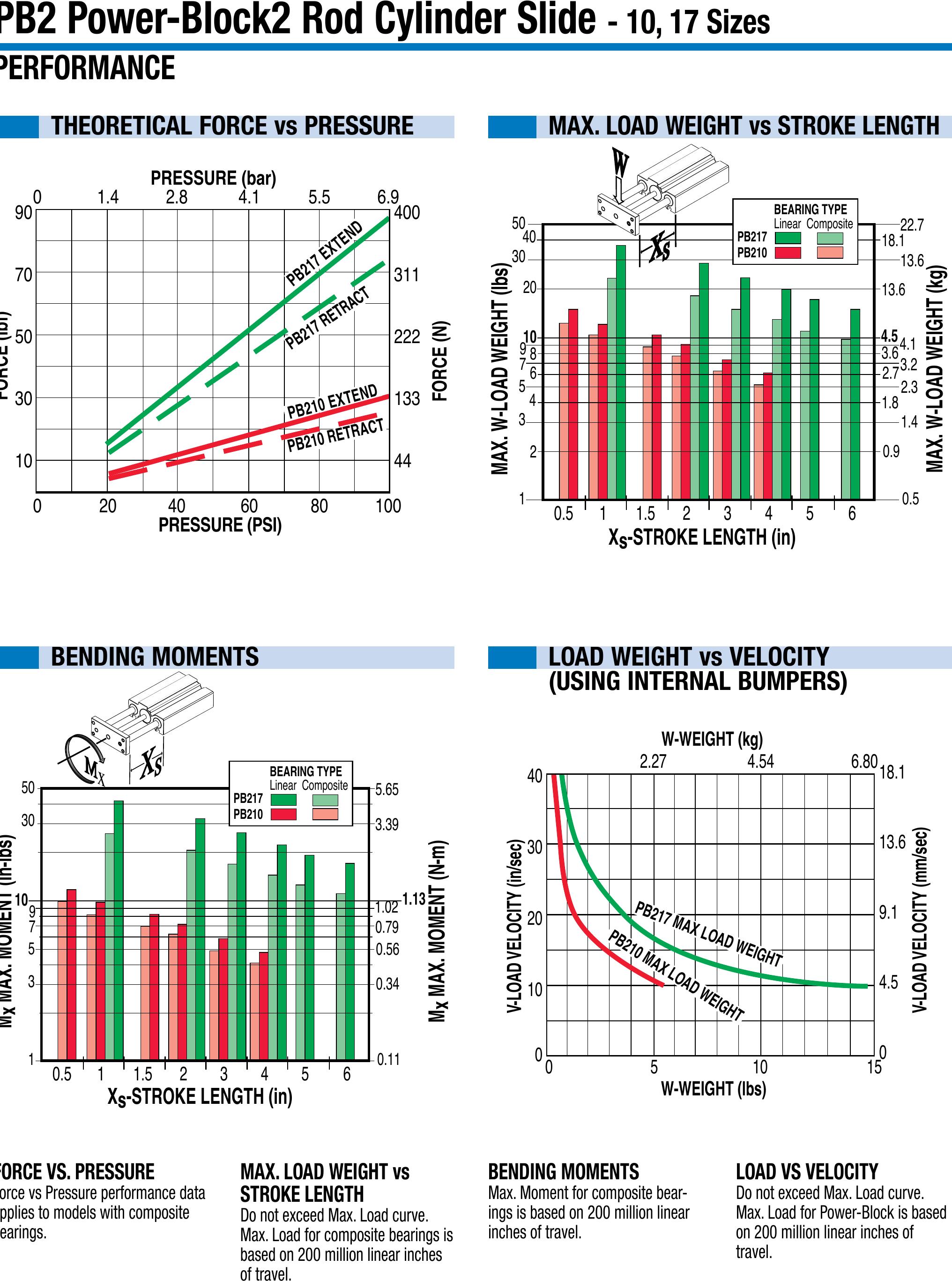

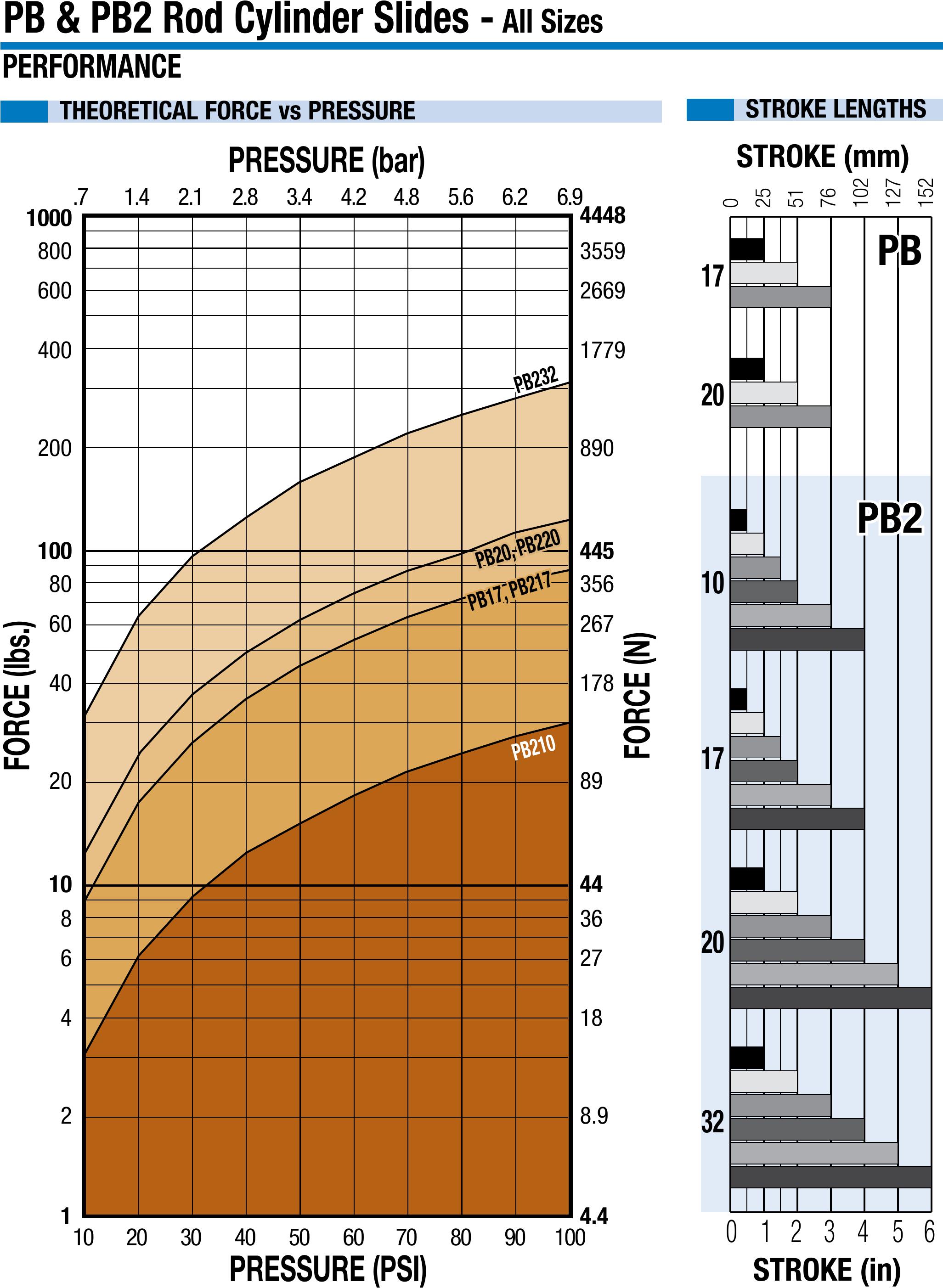

Power-Block 2 Max Force
Size PB2 10 PB2 17 PB2 20 PB2 32
Standard 46 lbf 132 lbf 184 lbf 471 lbf
Metric 205 N 587 N 818 N 2,095 N

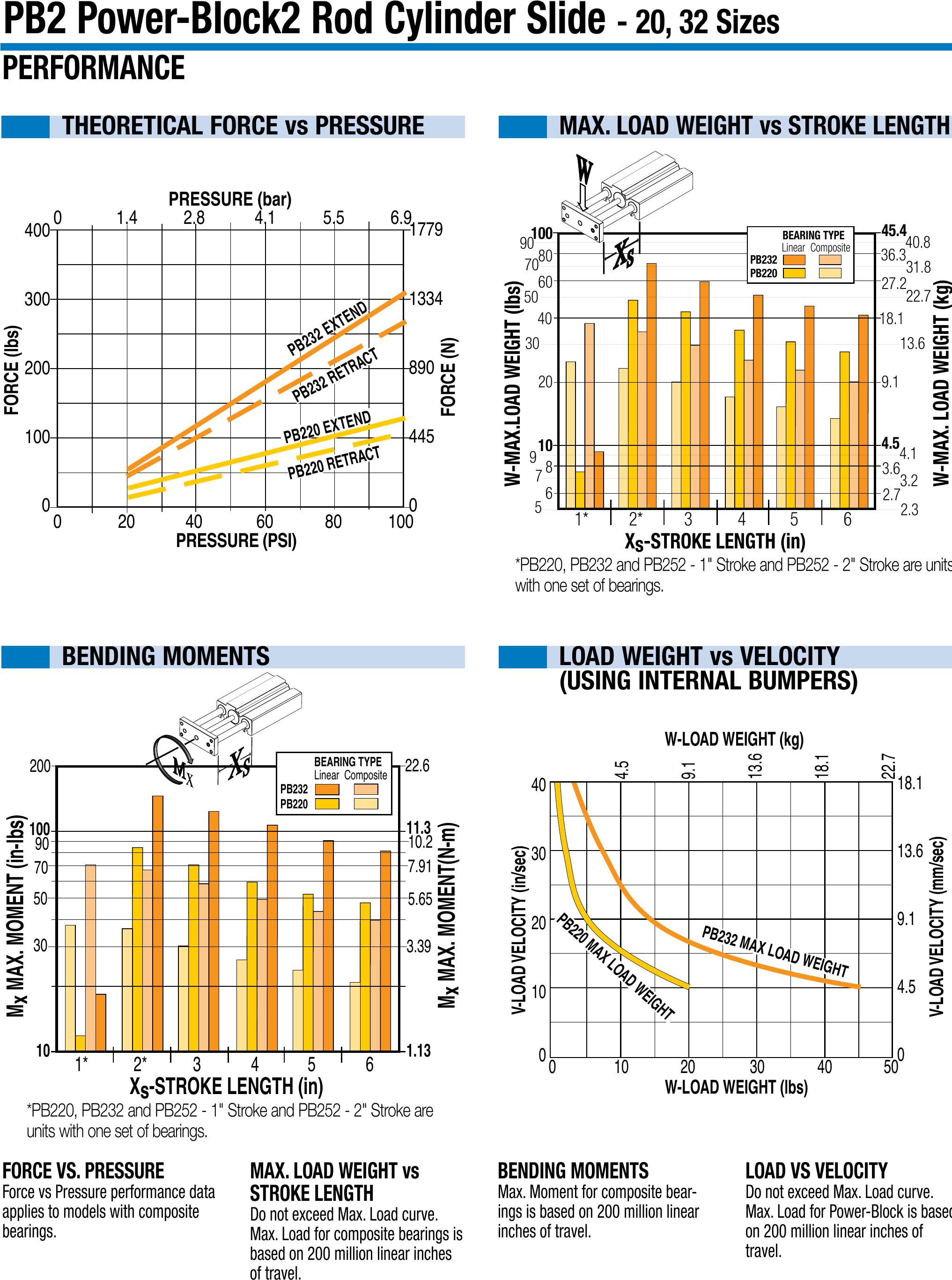

Power-Block 2 Max Load
Size PB2 10 PB2 17 PB2 20 PB2 32
Standard 16 lbs 38 lbs 48 lbs 70 lbs
Metric 7 kg 17 kg 22 kg 32 kg

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

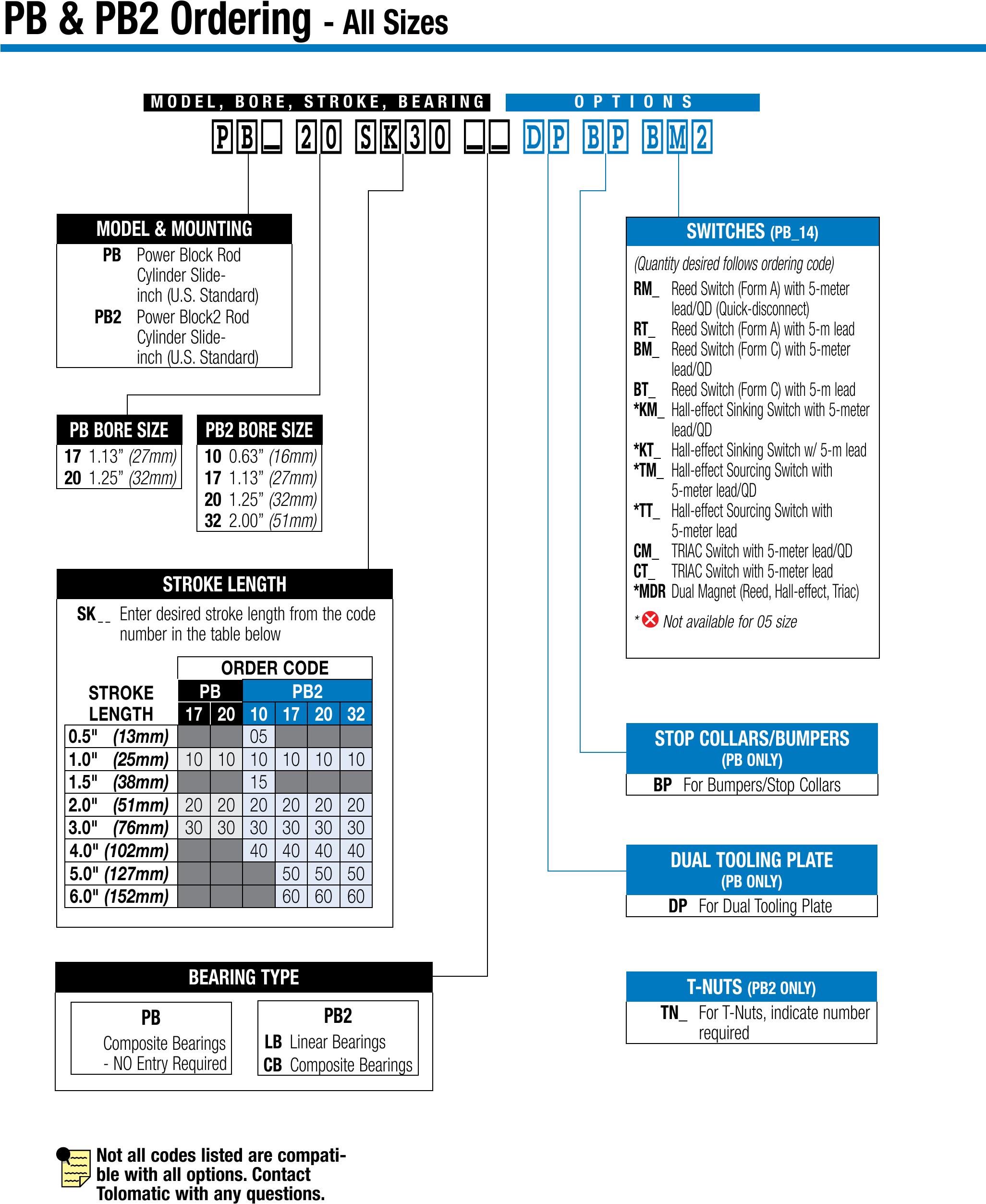

PB2 Ordering

View and Print

PB2 Ordering

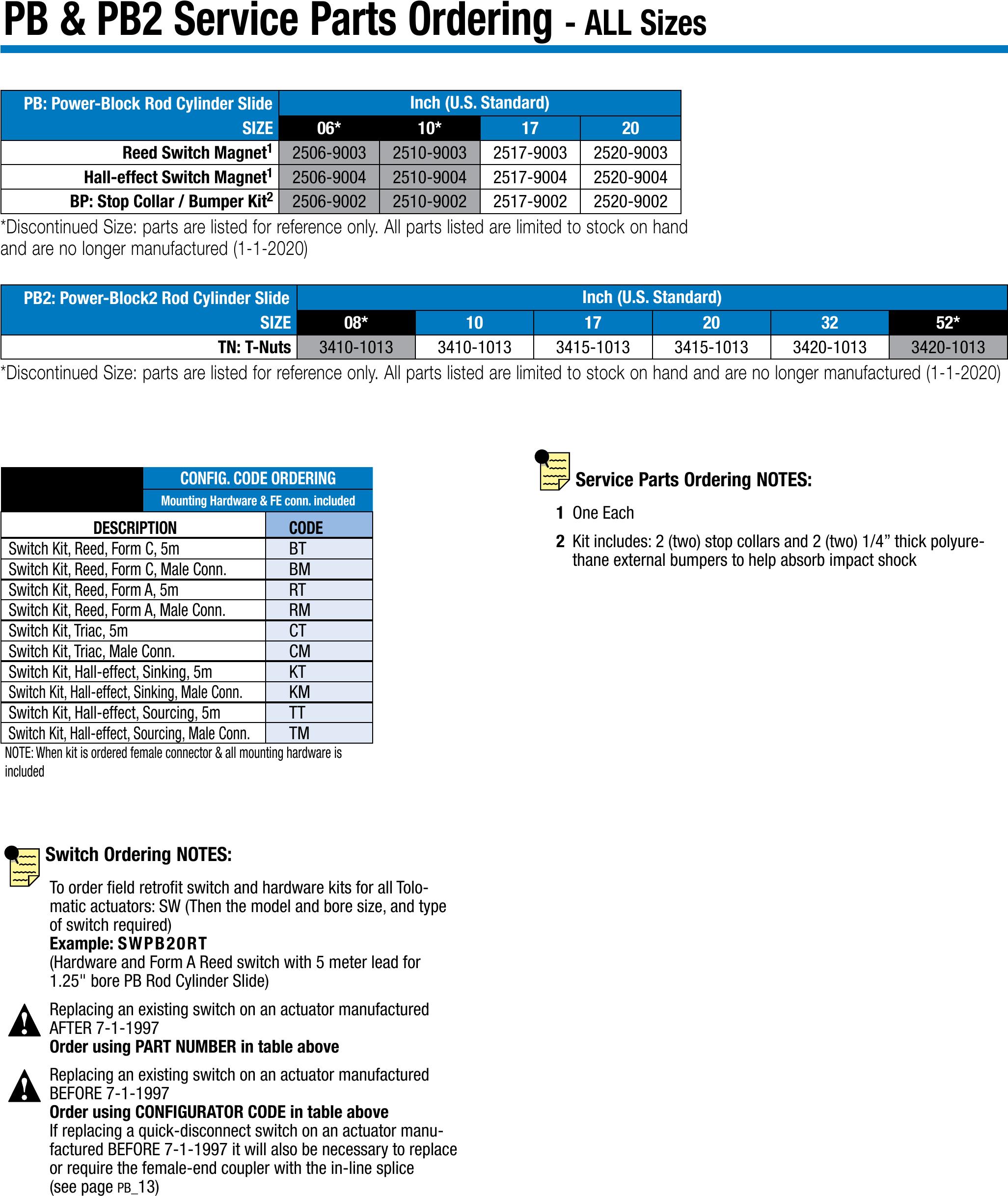

PB2 Service Parts Ordering

View and Print

PB2 Service Parts Ordering

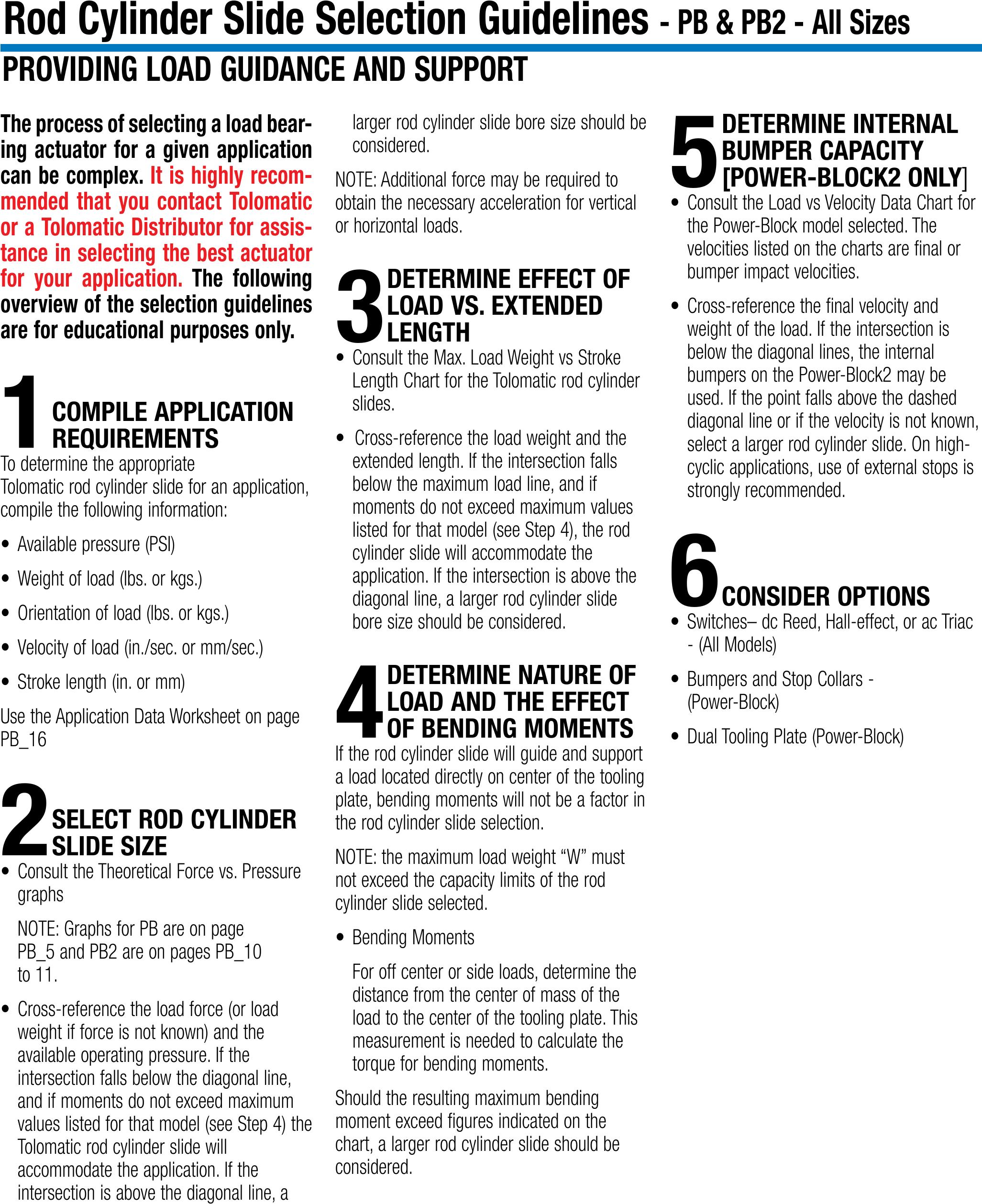

PB2 Selection Guidelines

View and Print

PB2 Selection Guidelines
