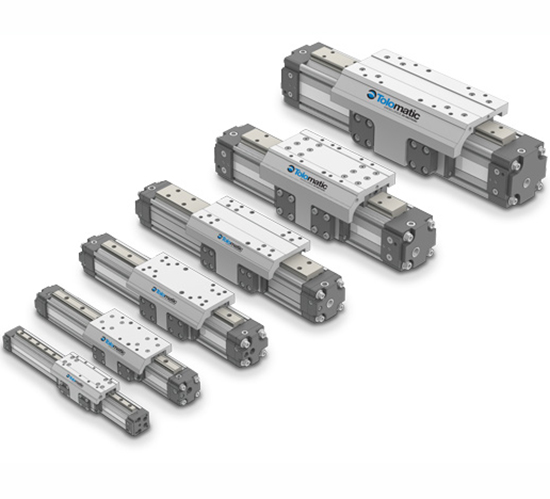

MXP-P Profiled Rail Air Actuator

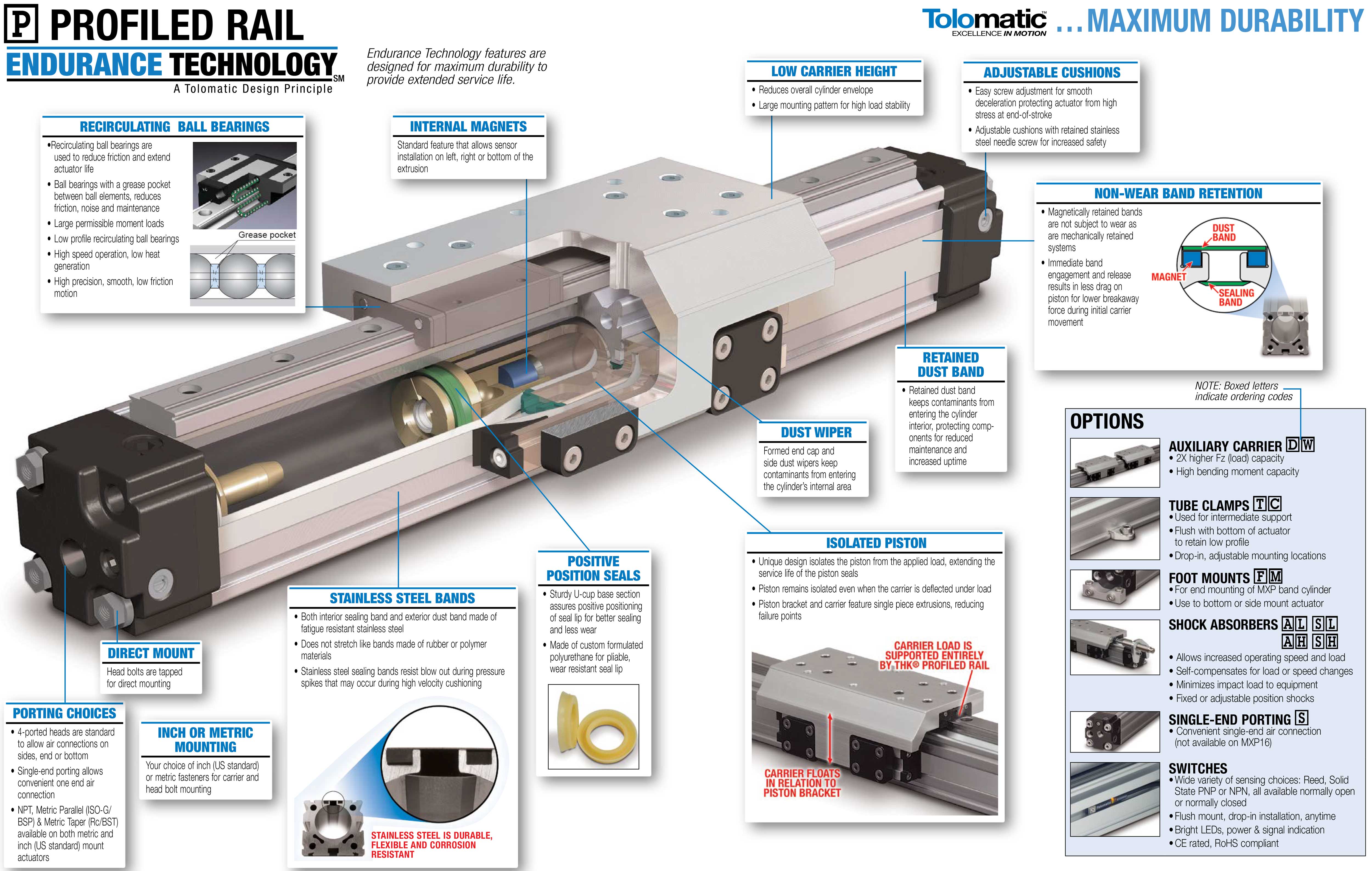

MXP-P air actuator with profiled rail provides high load and bending moment capacities.

The Tolomatic MXP-P profiled rail air actuators offer the highest load carrying capacity of the MXP actuator line (over 1200 lbf or 5745 N).

  • Recirculating ball bearings reduce friction for long, reliable life
  • Low profile, space-saving design
  • Smooth, low-breakaway motion

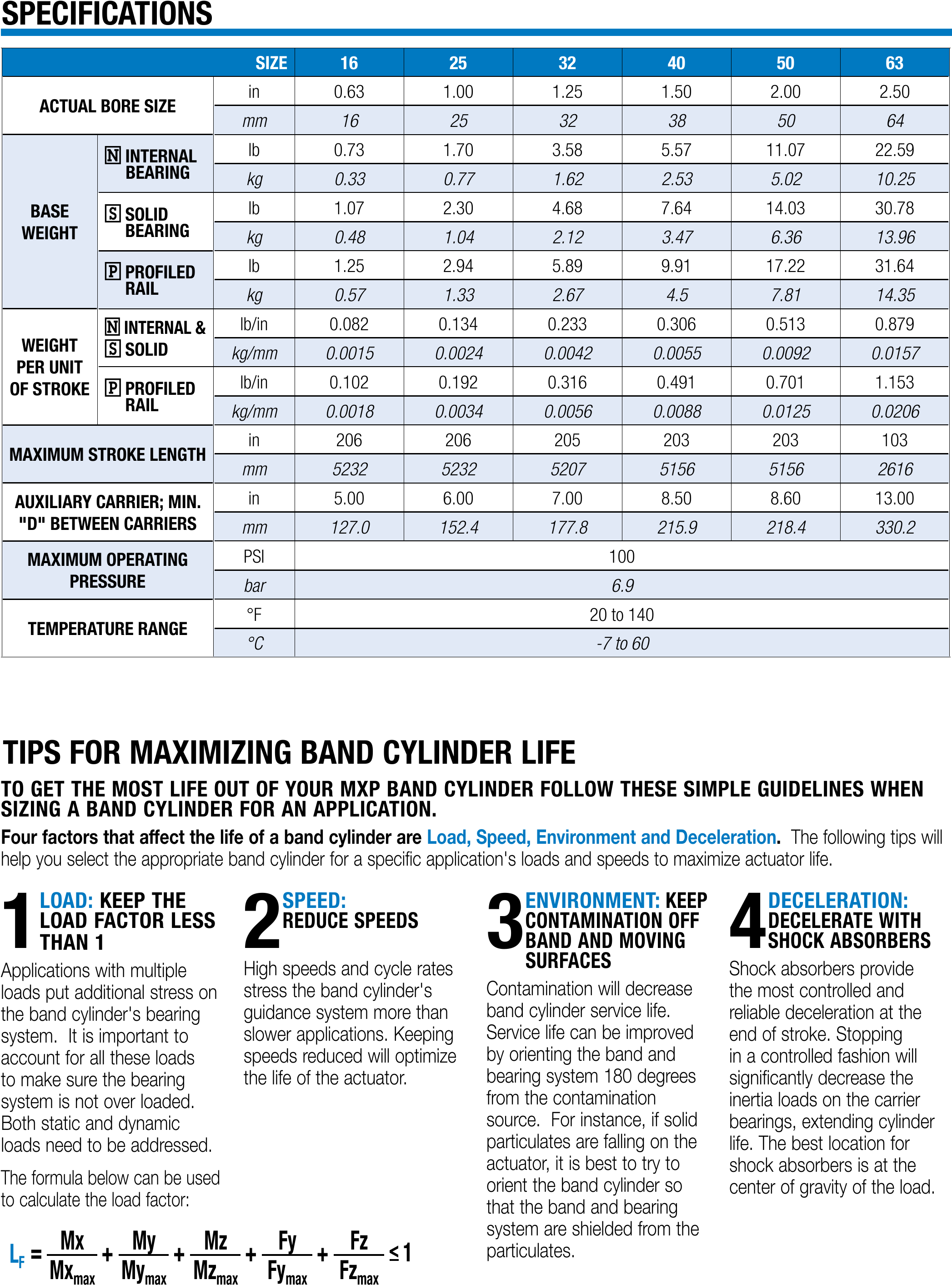

MXP-P Bore Size
Size MXP-P 16 MXP-P 25 MXP-P 32 MXP-P 40 MXP-P 50 MXP-P 63
Standard 0.63 in 1.00 in 1.25 in 1.50 in 2.00 in 2.50 in
Metric 16 mm 25 mm 32 mm 38 mm 50 mm 64 mm

MXP-P Max Stroke
Size MXP-P 16 MXP-P 25 MXP-P 32 MXP-P 40 MXP-P 50 MXP-P 63
Standard 206 in 206 in 205 in 203 in 203 in 103 in
Metric 5,232 mm 5,232 mm 5,207 mm 5,156 mm 5,156 mm 2,616 mm

MXP-P Max Force
Size MXP-P 16 MXP-P 25 MXP-P 32 MXP-P 40 MXP-P 50 MXP-P 63
Standard 31 lbf 79 lbf 123 lbf 177 lbf 305 lbf 491 lbf
Metric 136 N 349 N 546 N 786 N 1,356 N 2,184 N

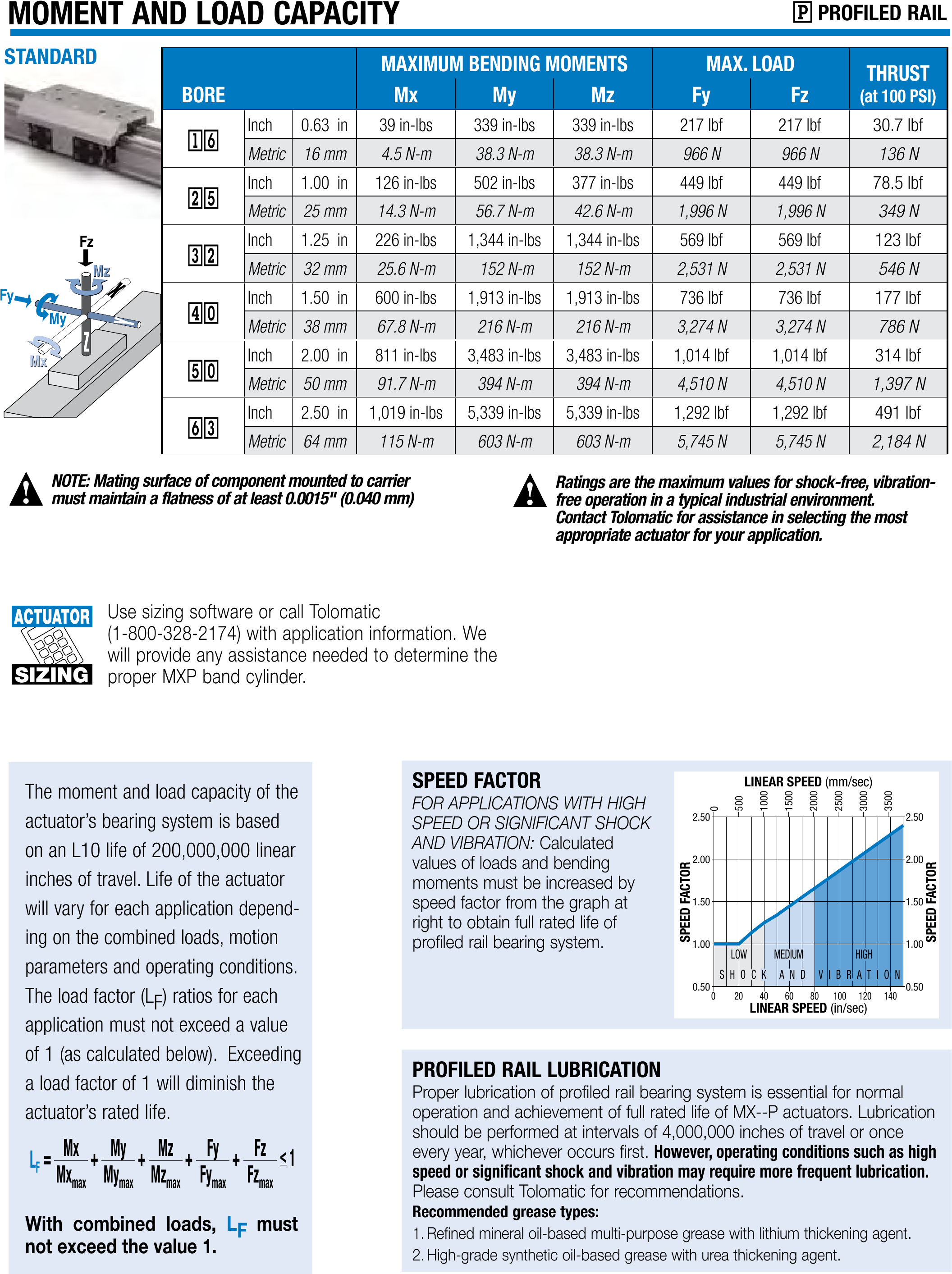

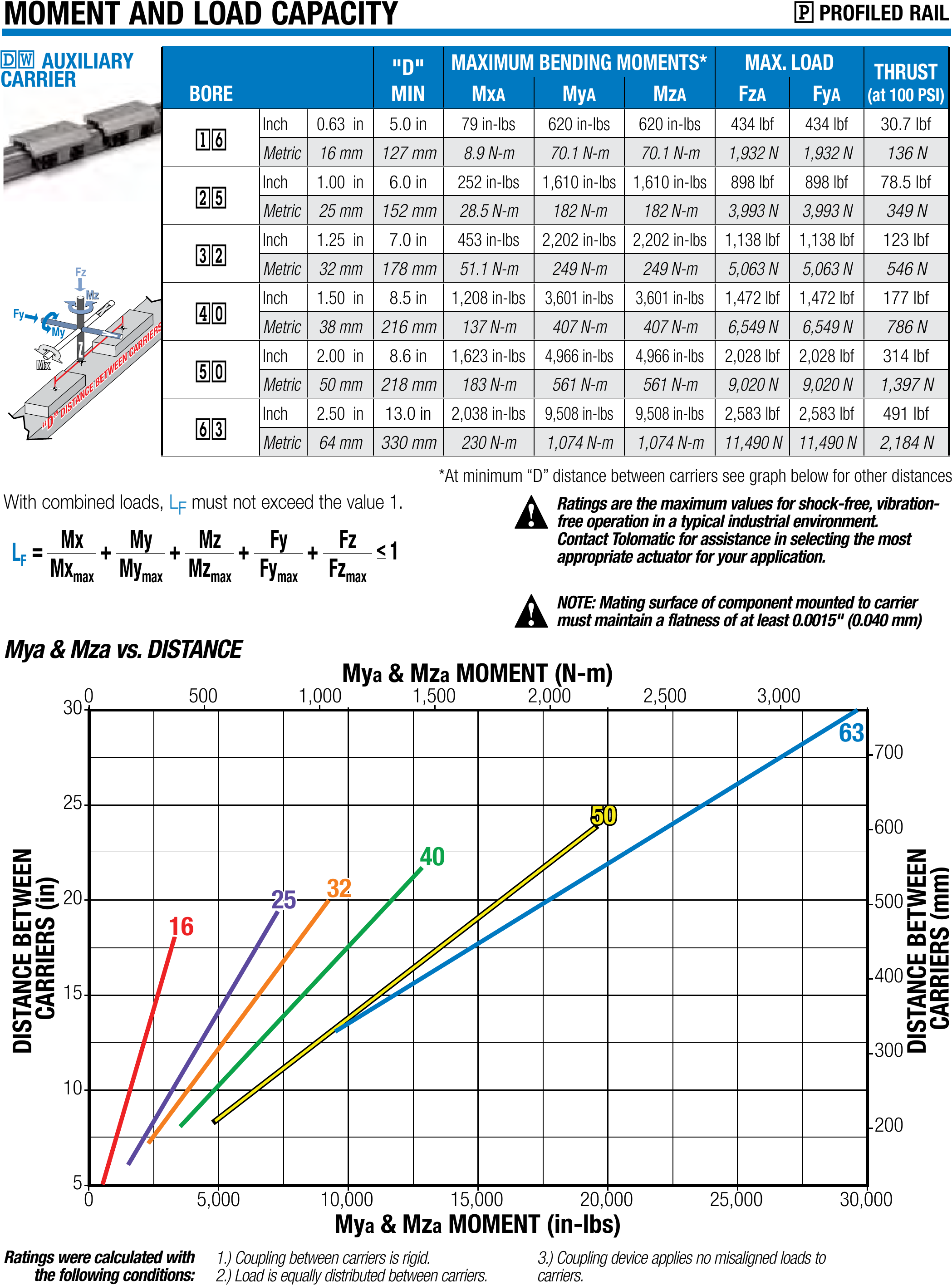

MXP-P Max Load
Size MXP-P 16 MXP-P 25 MXP-P 32 MXP-P 40 MXP-P 50 MXP-P 63
Standard 217 lb 449 lb 569 lb 736 lb 1,014 lb 1,292 lb
Metric 965 kg 1,997 kg 2,531 kg 3,274 kg 4,511 kg 5,747 kg

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

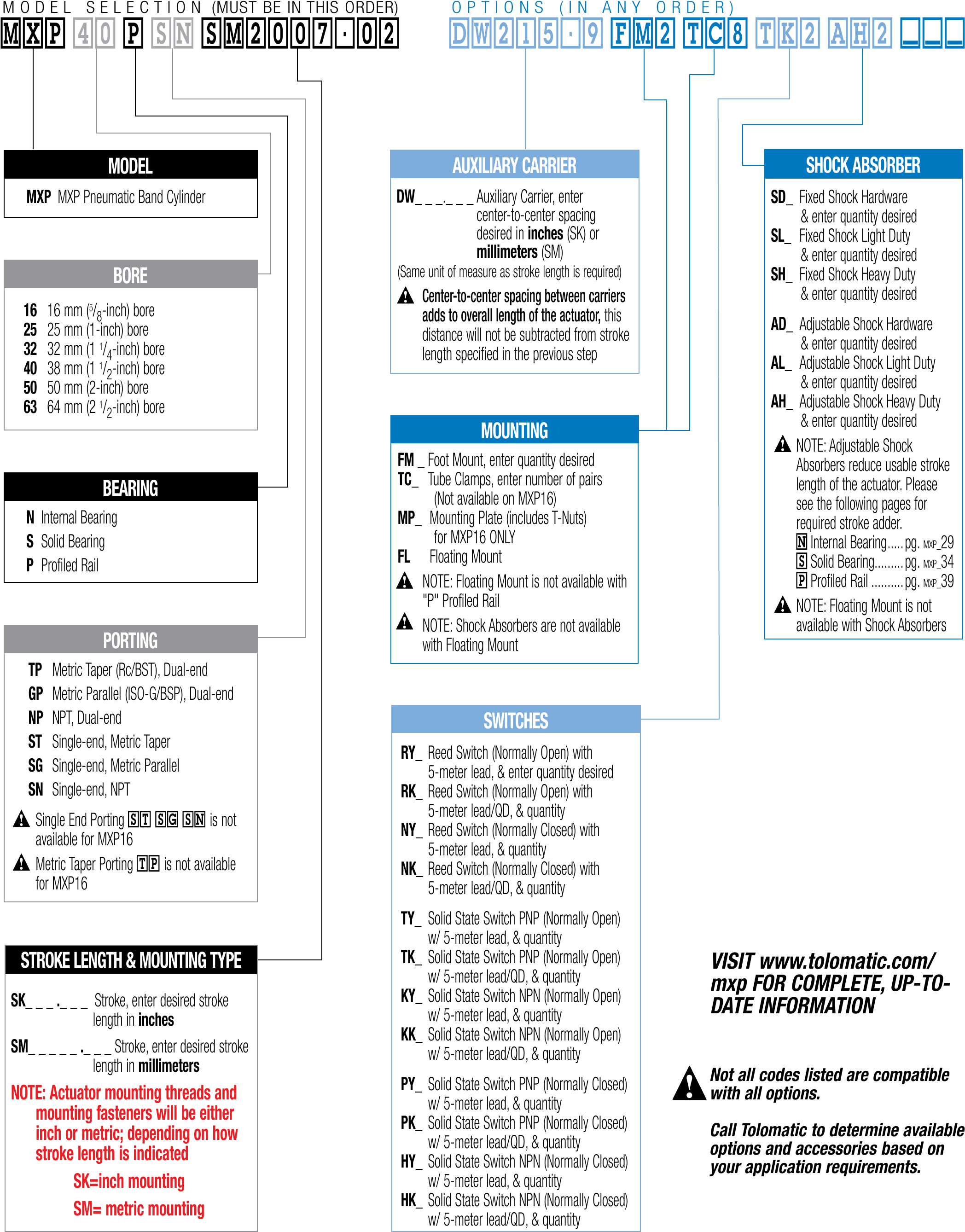

MXP-P Ordering

View and Print

MXP-P Ordering

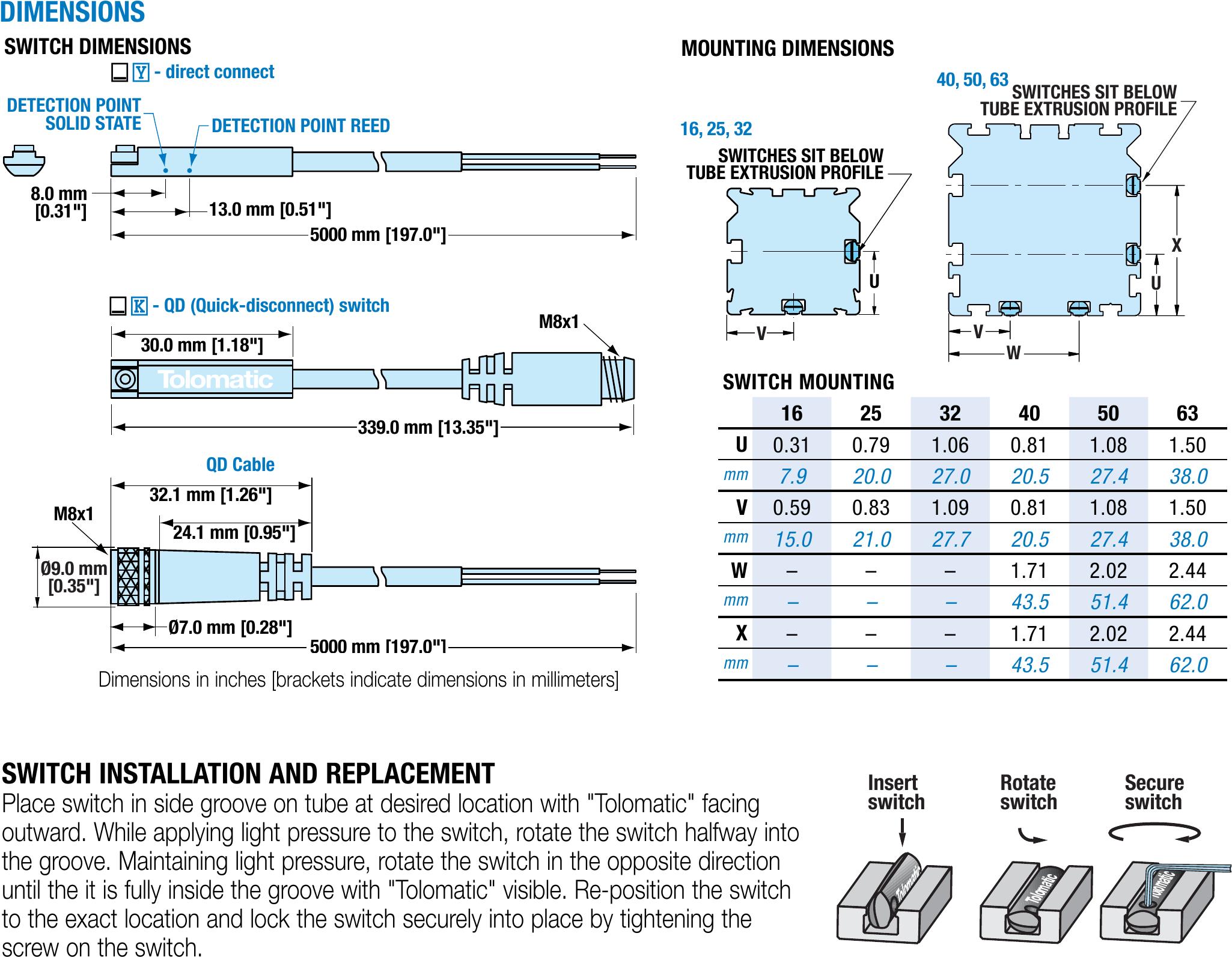

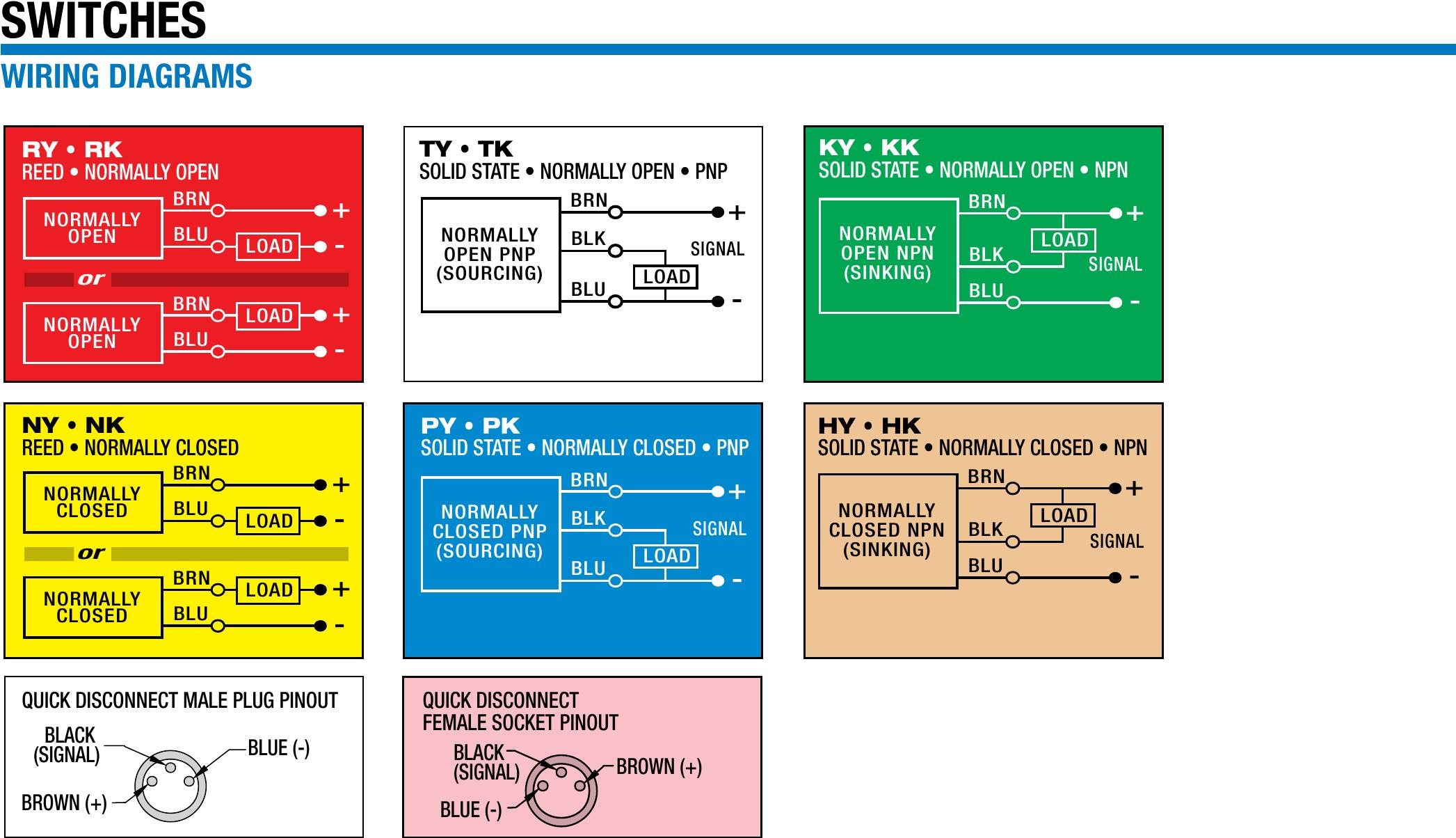

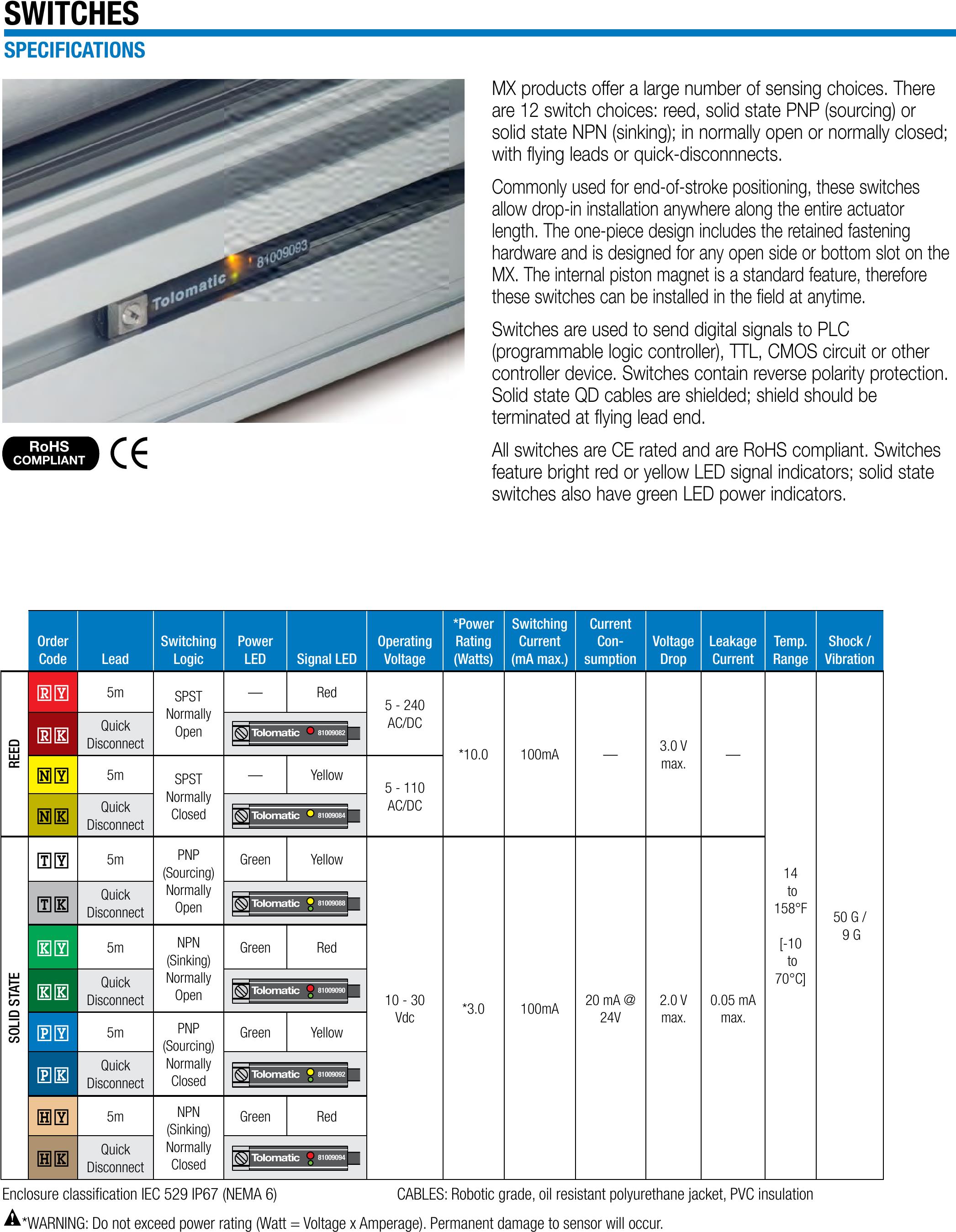

MXP-P Repair Kits, Switches

View and Print

MXP-P Repair Kits, Switches

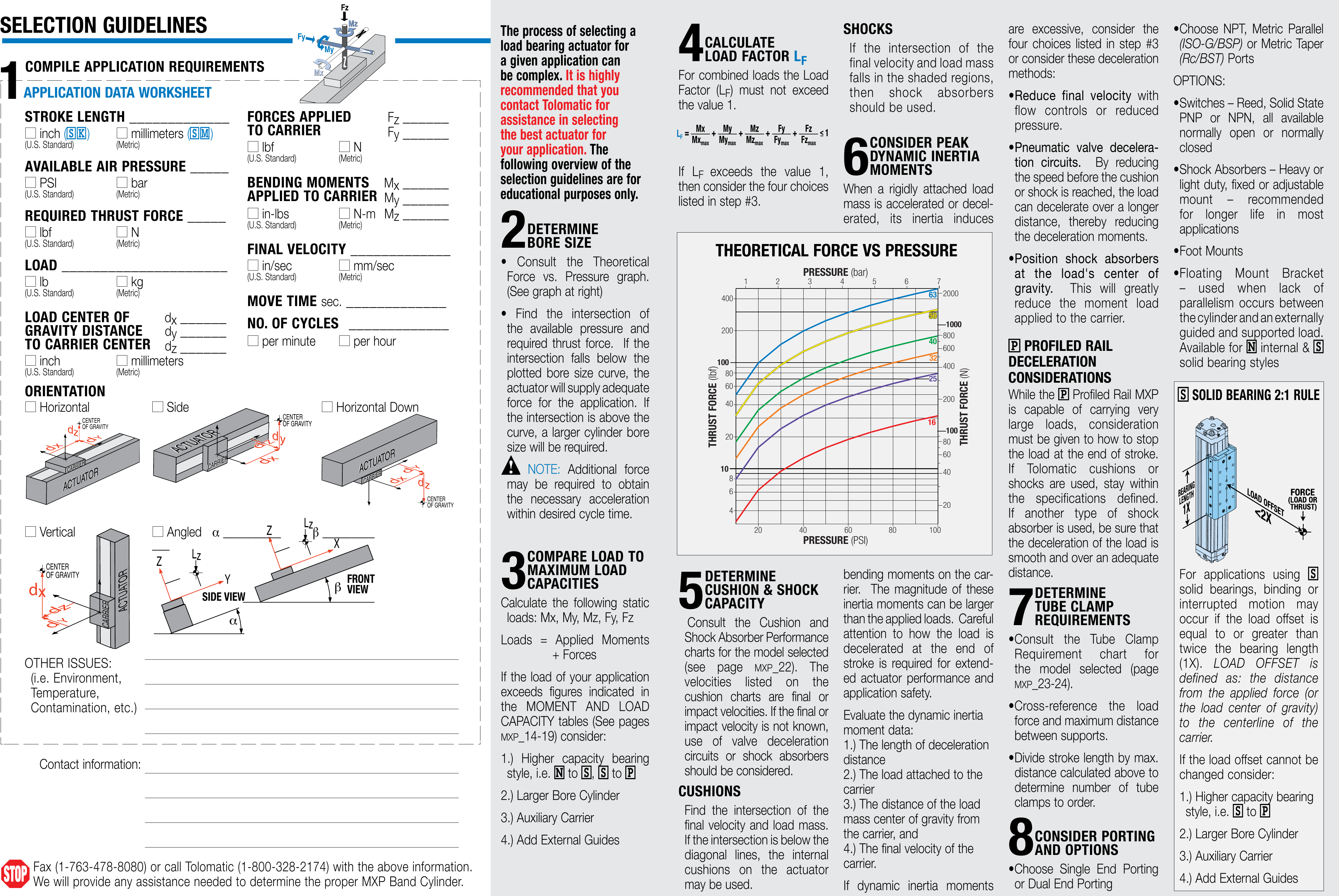

MXP-P Selection Guidelines

View and Print

MXP-P Selection Guidelines

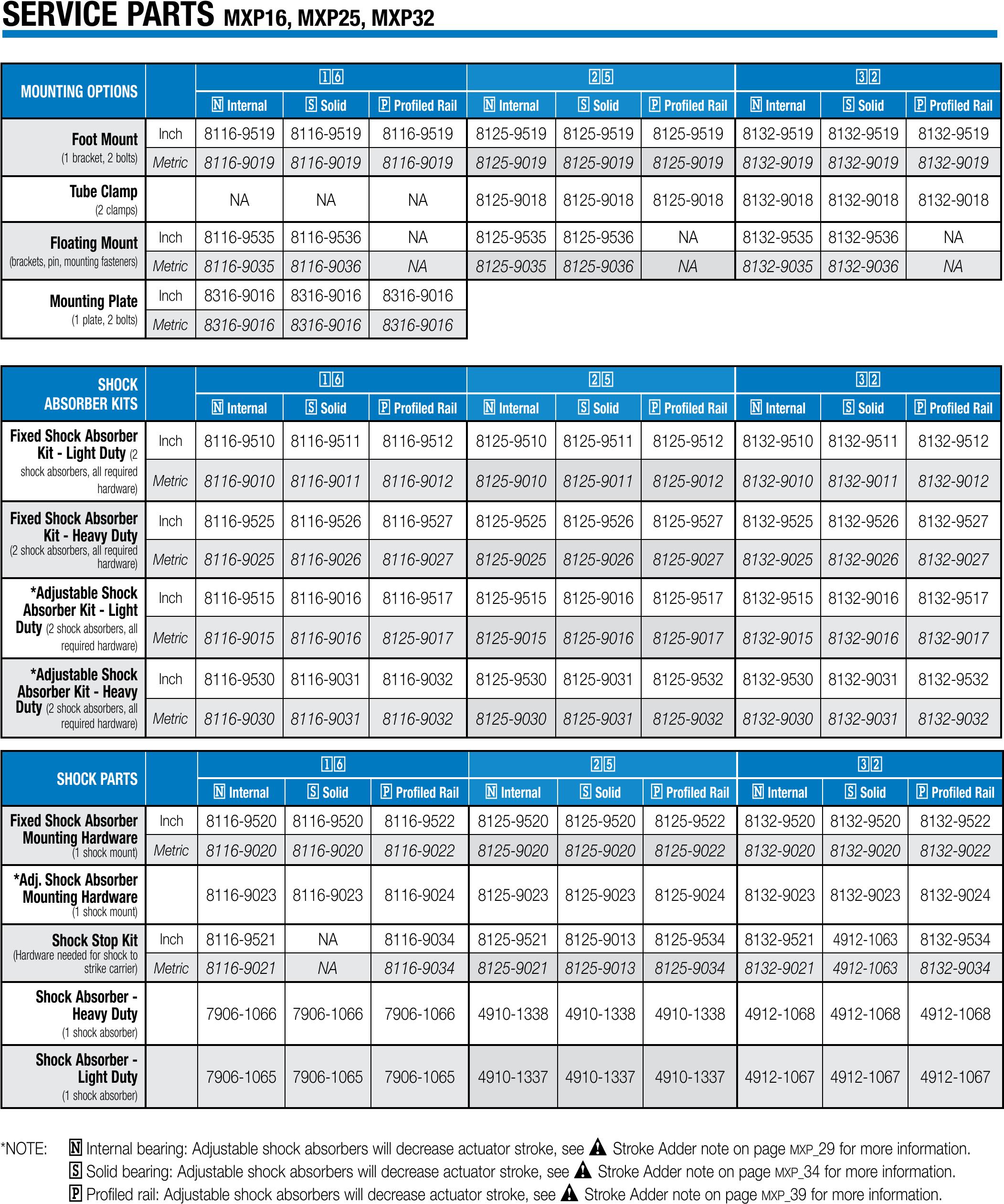

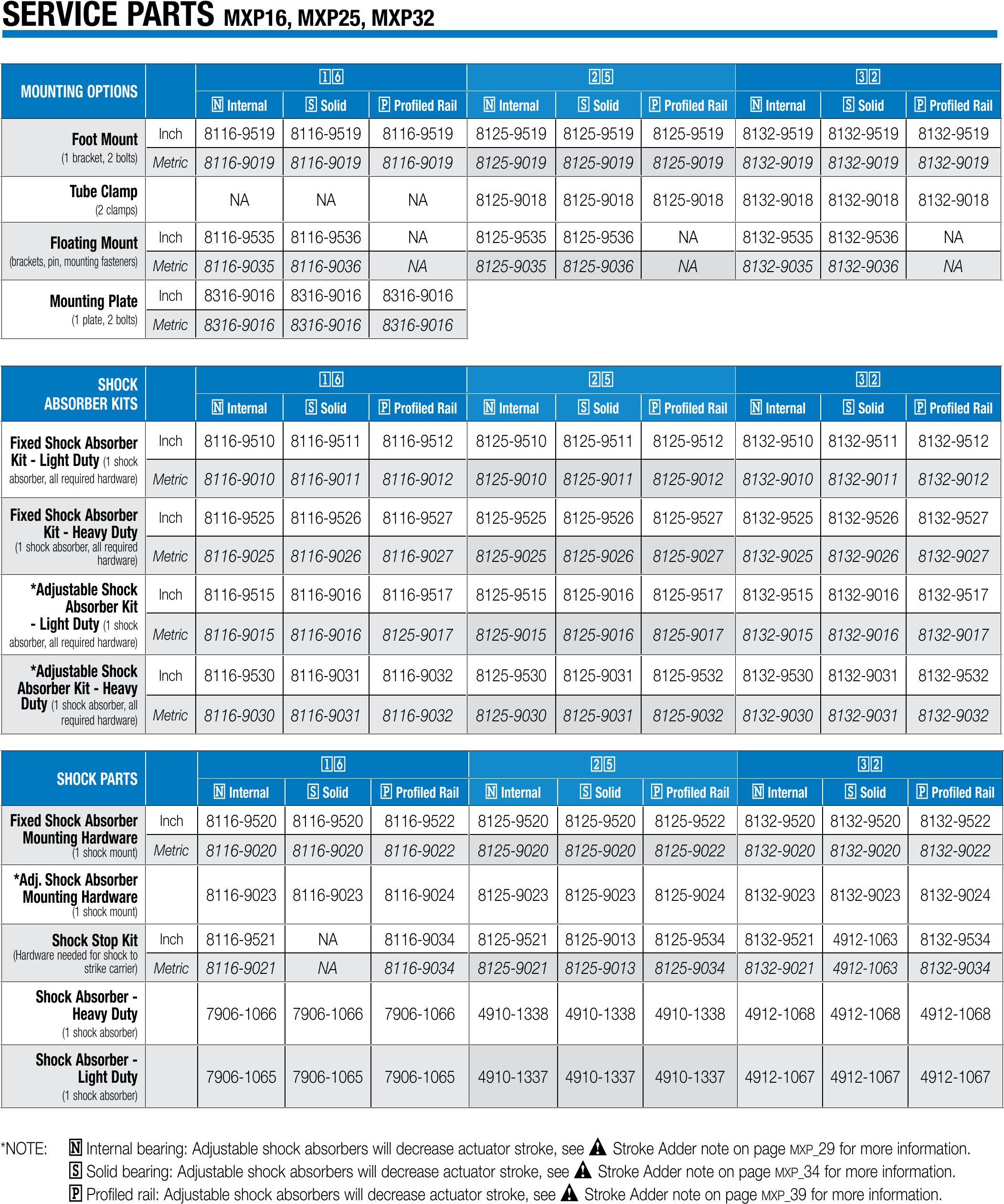

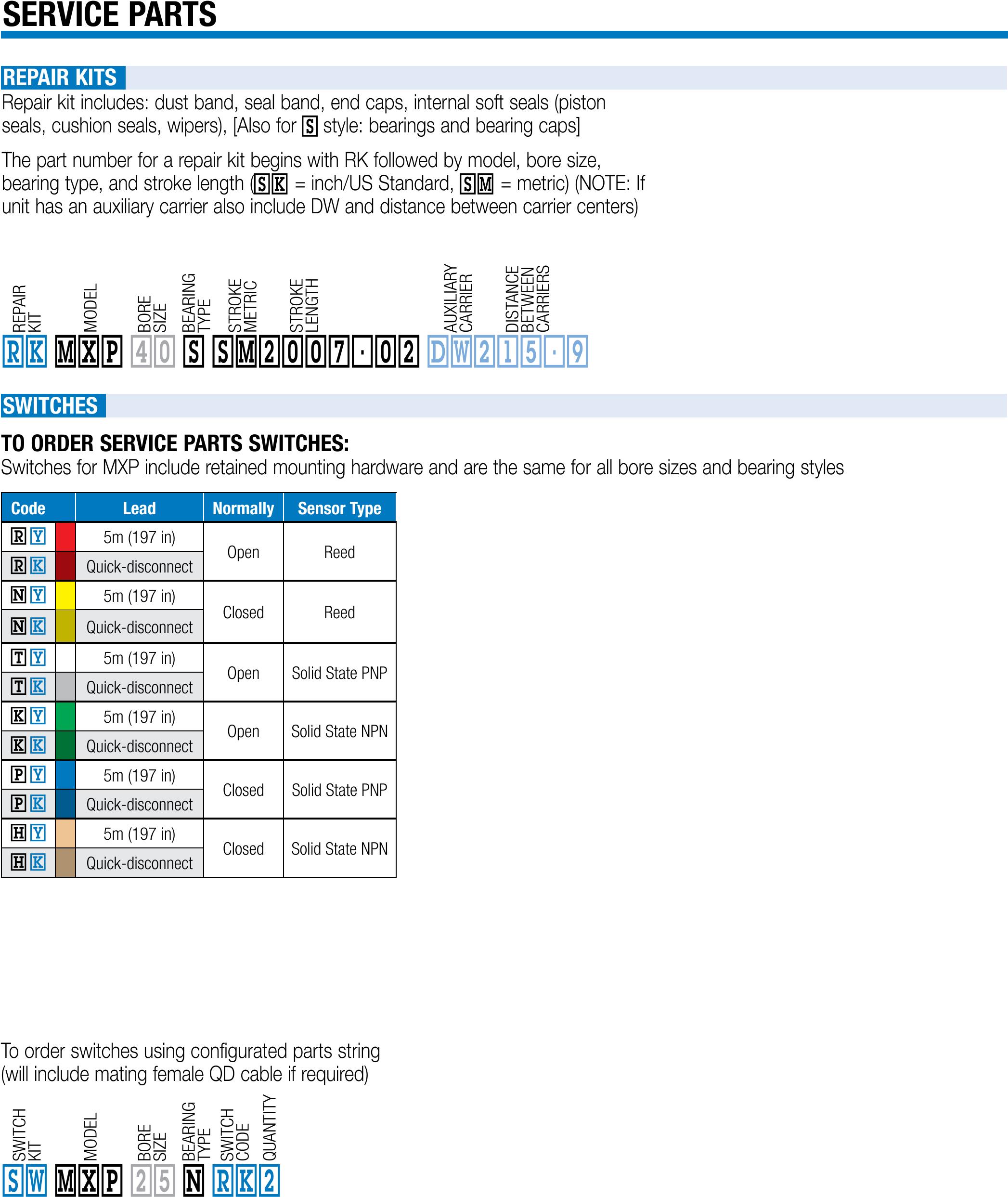

MXP16P to MXP32P Service Parts

View and Print

MXP16P to MXP32P Service Parts

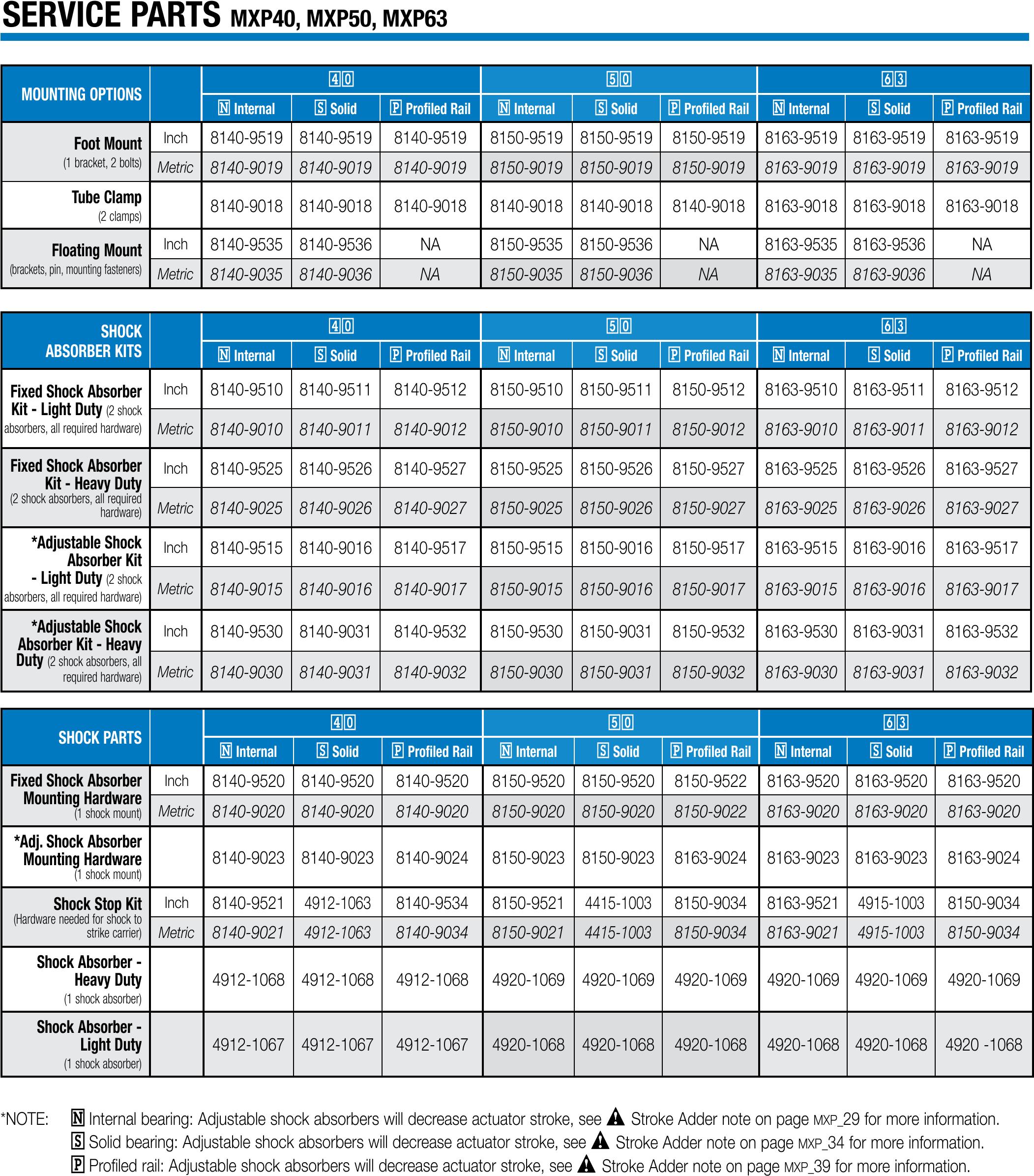

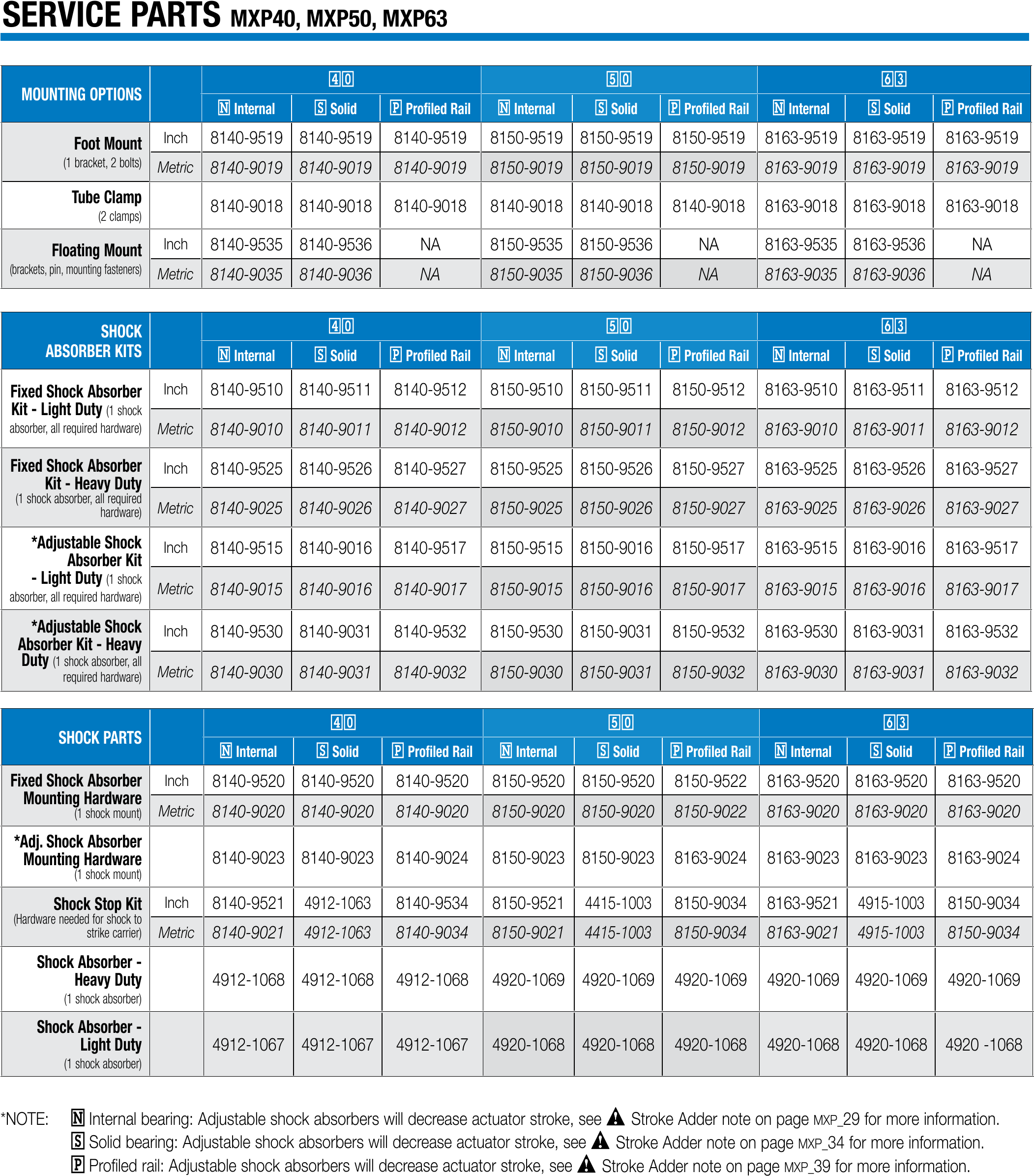

MXP40P to MXP63P Service Parts

View and Print

MXP40P to MXP63P Service Parts
