MXB-U Unguided Belt Driven Actuators

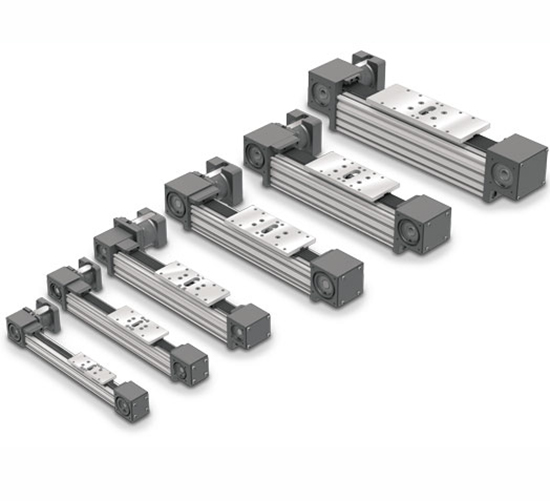

MXB-U Unguided Belt Driven Actuator
Your Motor Here® Size Your Actuator
Request a Quote
Contact an Engineer

MXB-U Unguided Belt Driven Actuators

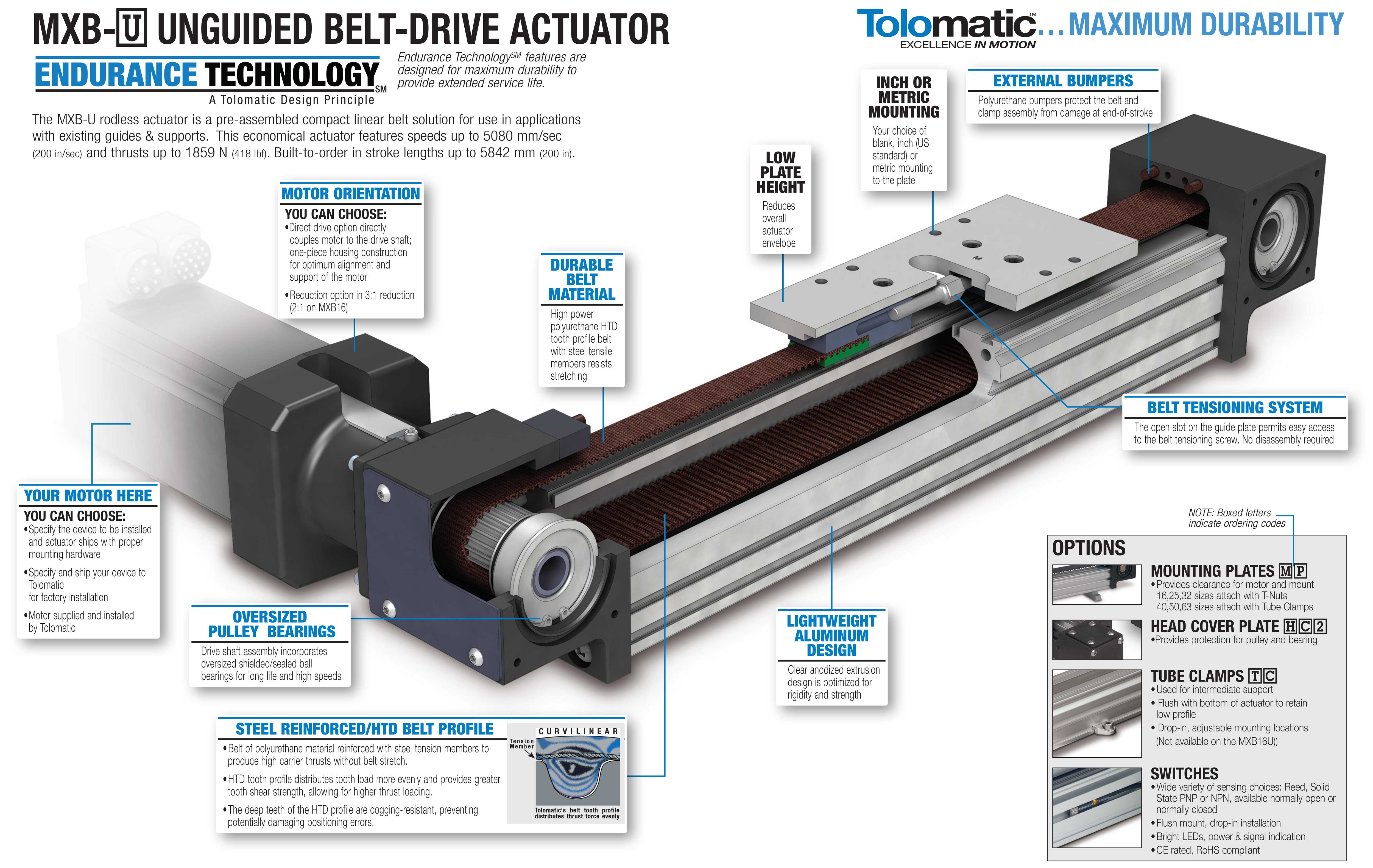

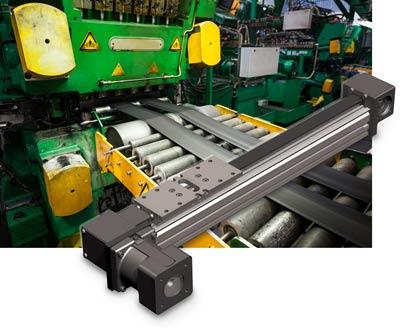

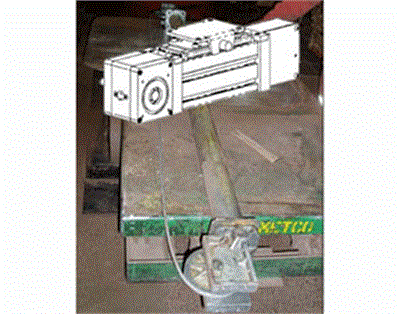

MXB-U belt driven actuators are designed for applications where loads are externally guided and supported.

The MXB-U belt driven actuator is a compact linear belt solution for use in applications where higher speeds are desired but loads are supported by existing guides & supports.

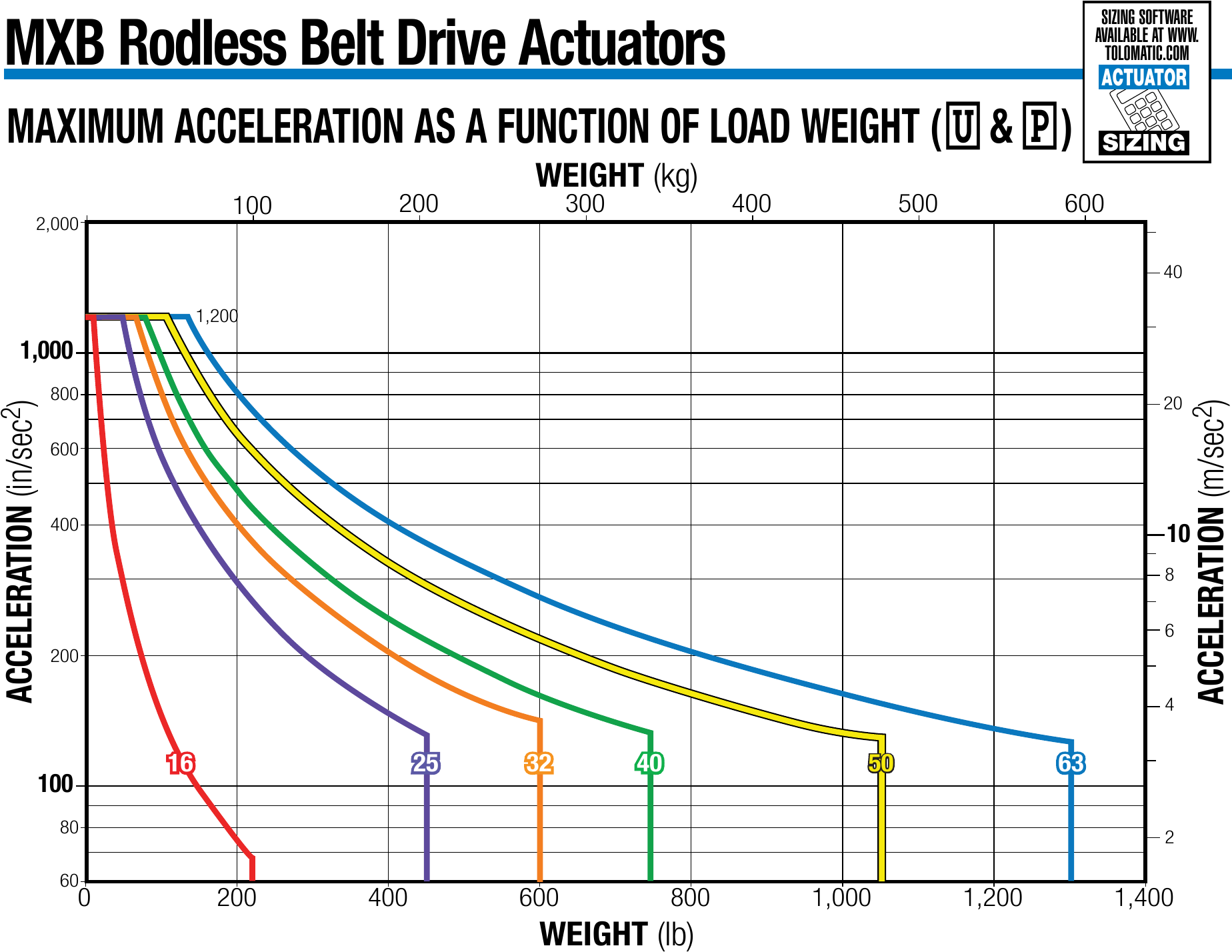

  • High speed and acceleration capabilities up to 1200 in/sec2 (30.5 mm/sec2)
  • 6 body sizes accommodate a wide range of forces and loads
  • Polyurethane belt with steel members resists stretching
  • Excellent repeatability, high duty cycle performance
  • Choose MXB belt drive for longer strokes than screw drive actuators

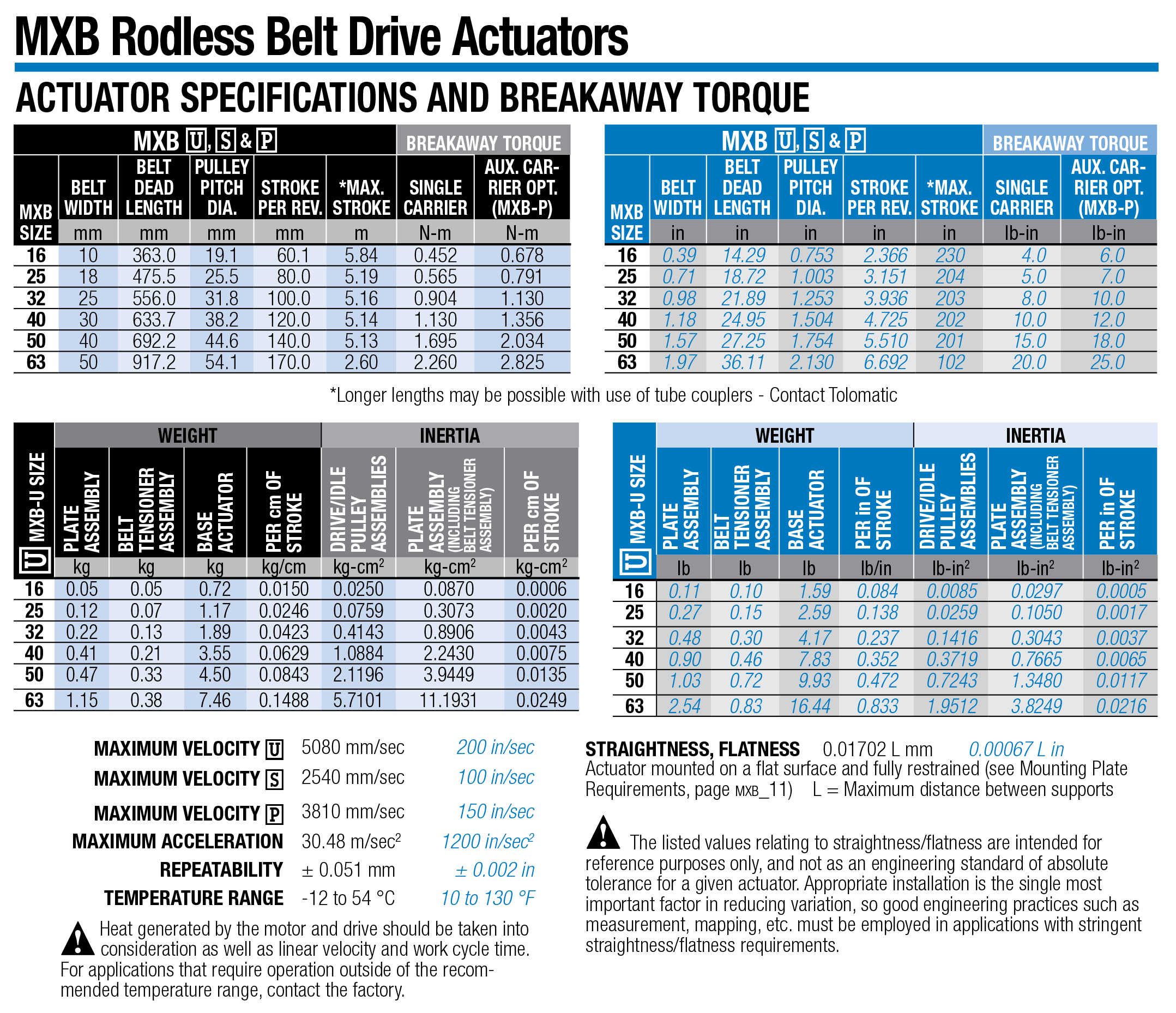

MXB-U Unguided Belt Driven Actuator Max Stroke
Size MXB-U 16 MXB-U 25 MXB-U 32 MXB-U 40 MXB-U 50 MXB-U 63
Standard 200 in 200 in 200 in 200 in 160 in 100 in
Metric 5,080 mm 5,080 mm 5,080 mm 5,080 mm 4,064 mm 2,540 mm

MXB-U Unguided Belt Driven Actuator Max Force
Size MXB-U 16 MXB-U 25 MXB-U 32 MXB-U 40 MXB-U 50 MXB-U 63
Standard 38 lbf 151 lbf 209 lbf 250 lbf 325 lbf 418 lbf
Metric 169 N 672 N 930 N 1,112 N 1,446 N 1,859 N

MXB-U Unguided Belt Driven Actuator Max Speed
Size MXB-U 16 MXB-U 25 MXB-U 32 MXB-U 40 MXB-U 50 MXB-U 63
Standard 200 in/sec 200 in/sec 200 in/sec 200 in/sec 200 in/sec 200 in/sec
Metric 5,080 mm/sec 5,080 mm/sec 5,080 mm/sec 5,080 mm/sec 5,080 mm/sec 5,080 mm/sec

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

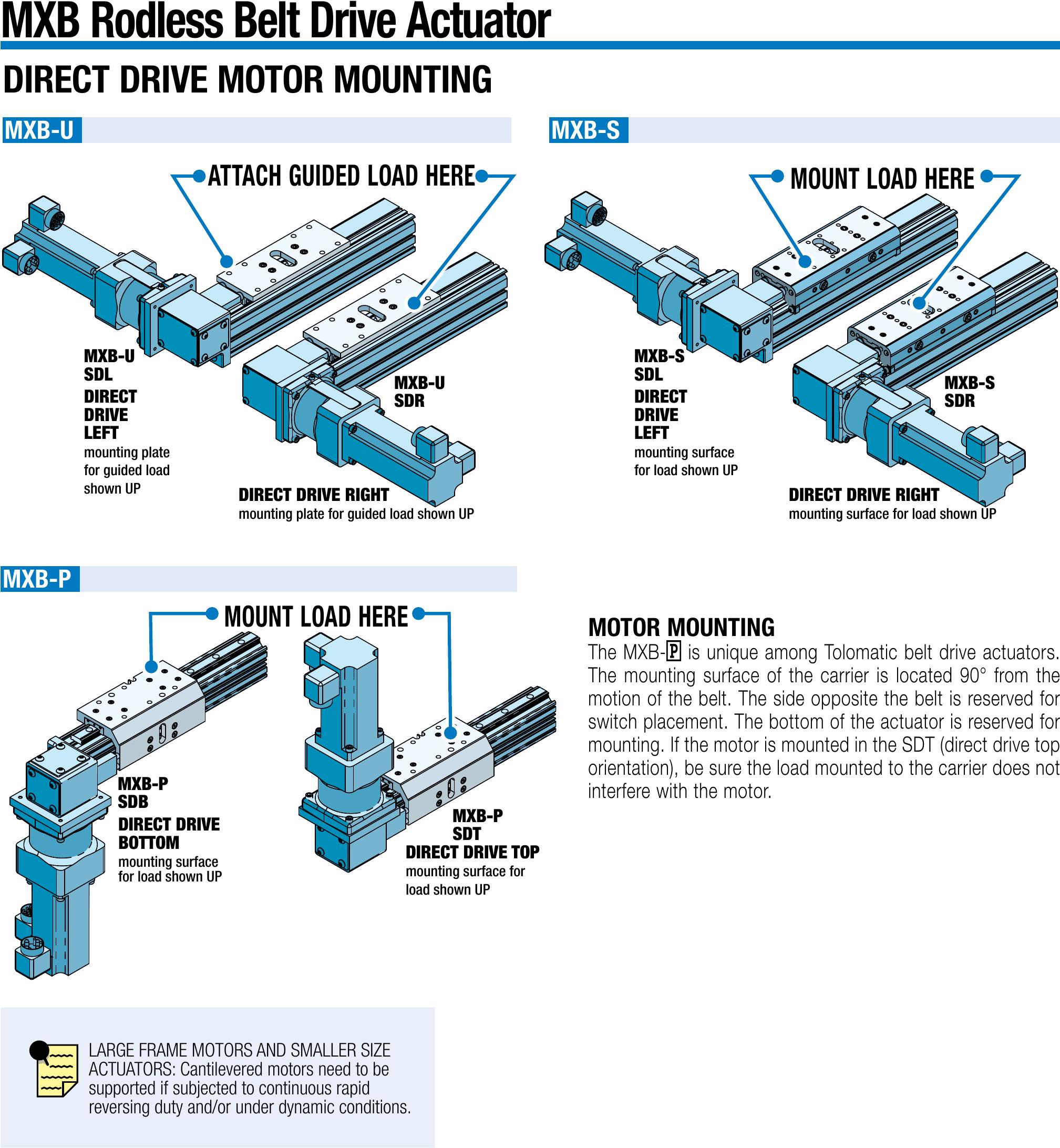

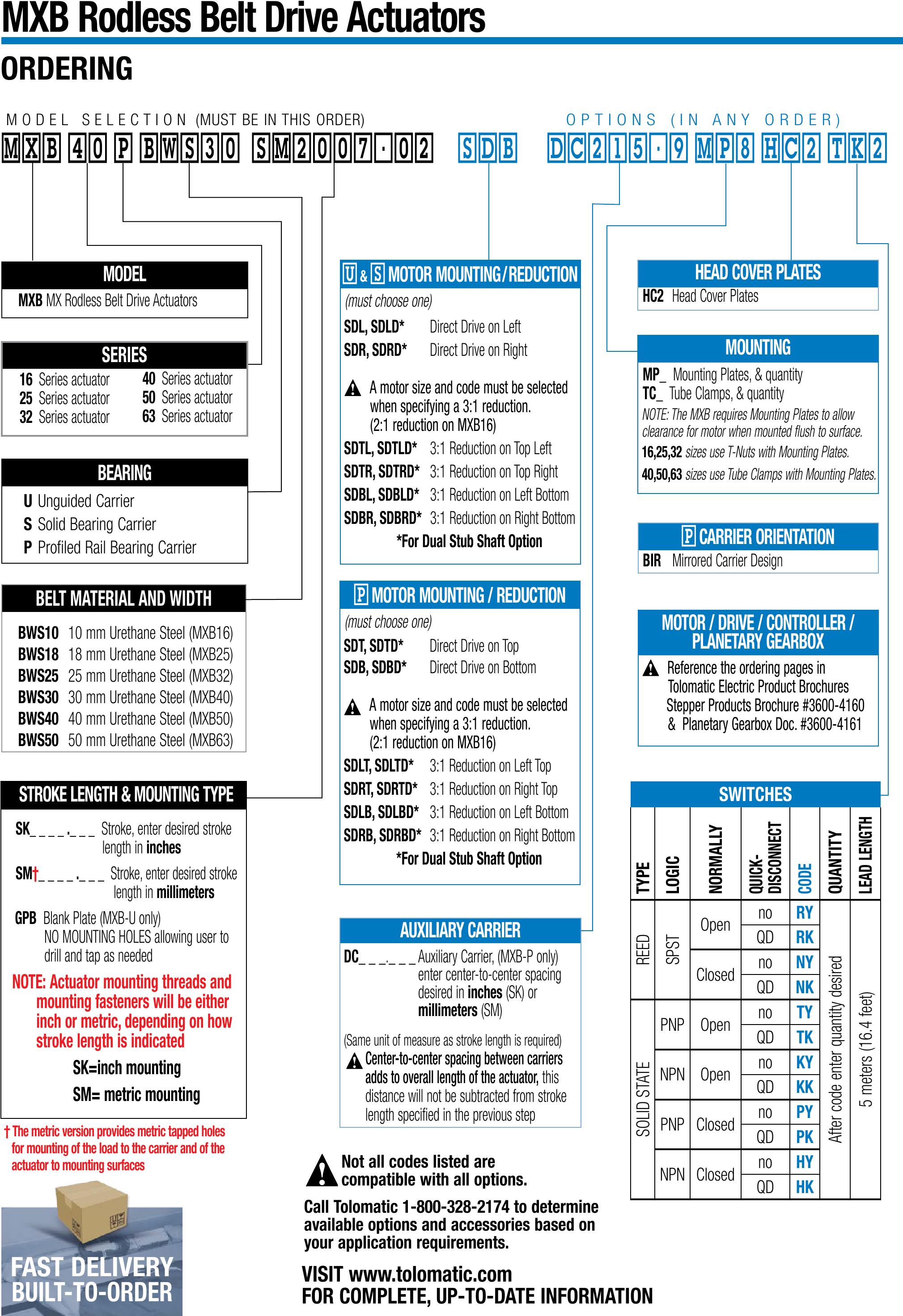

MXB-U Ordering

View and Print

MXB-U Ordering

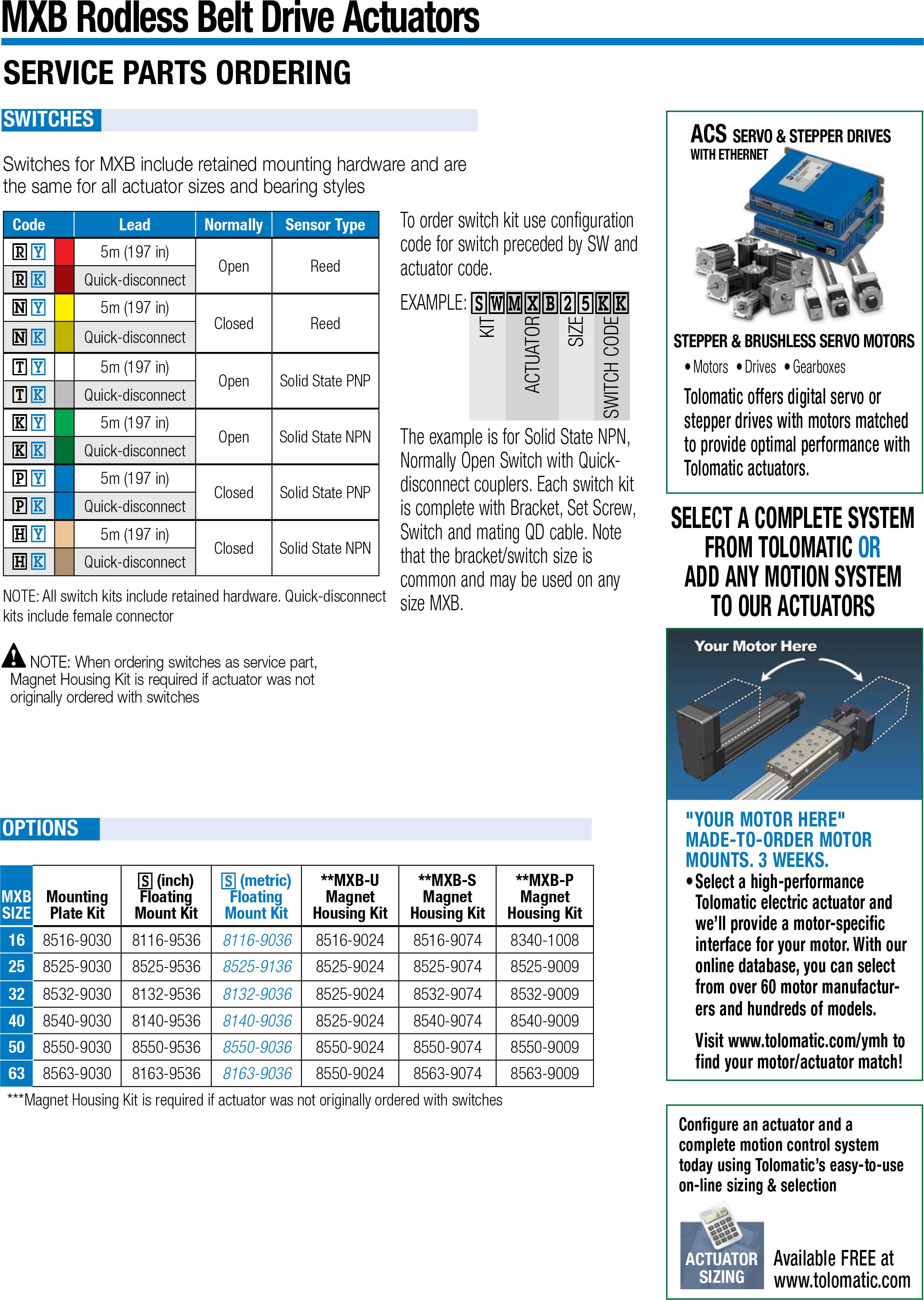

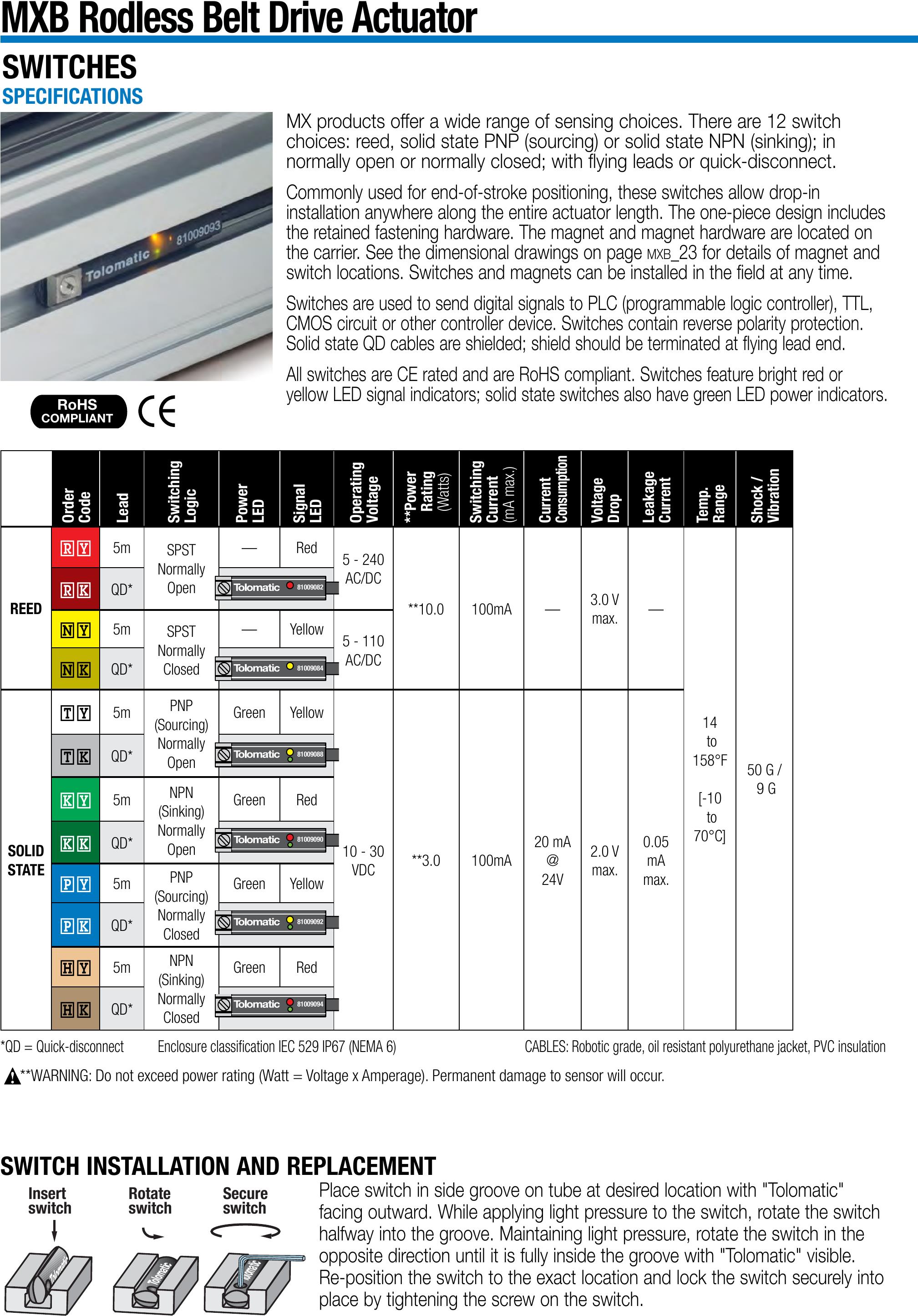

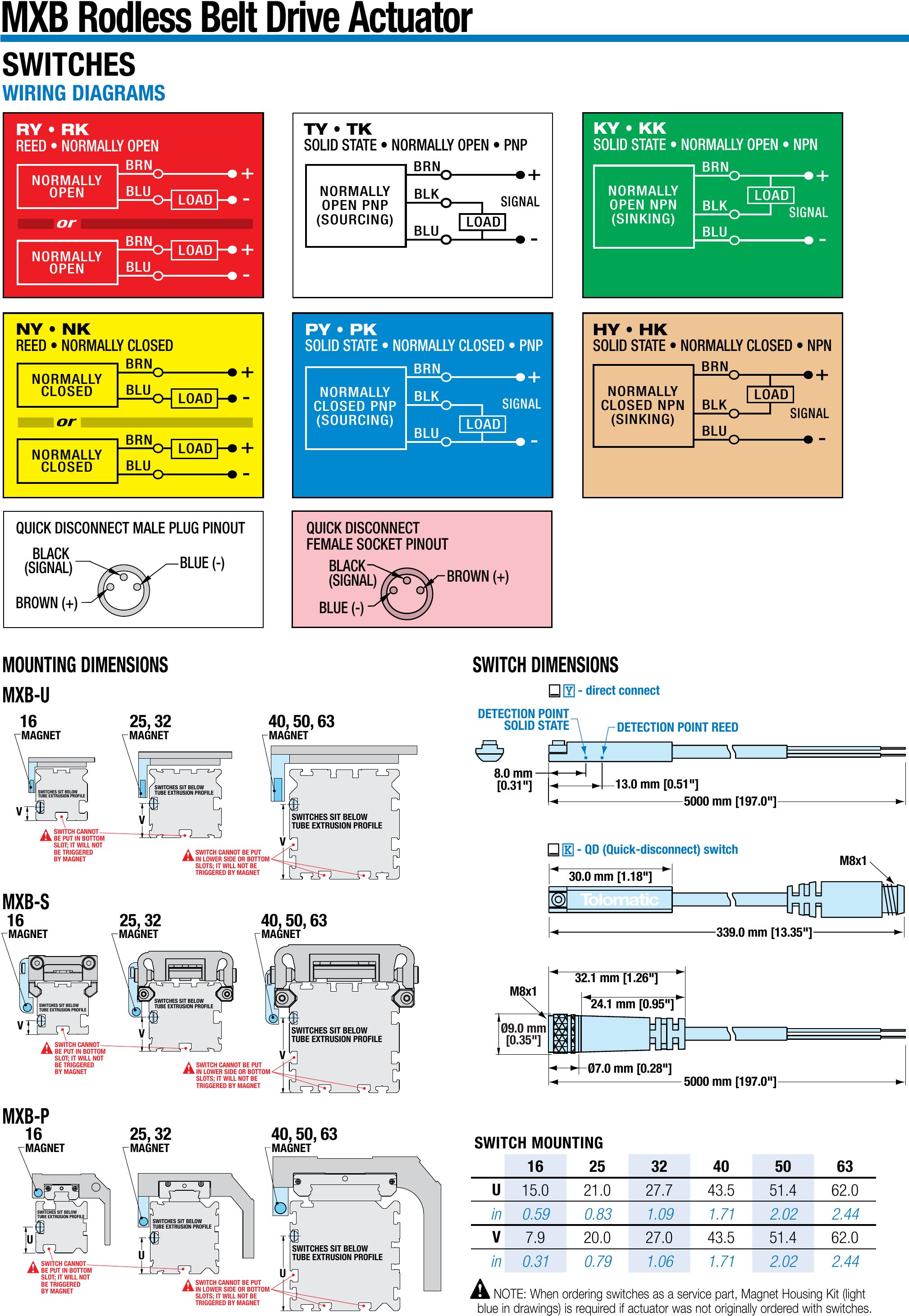

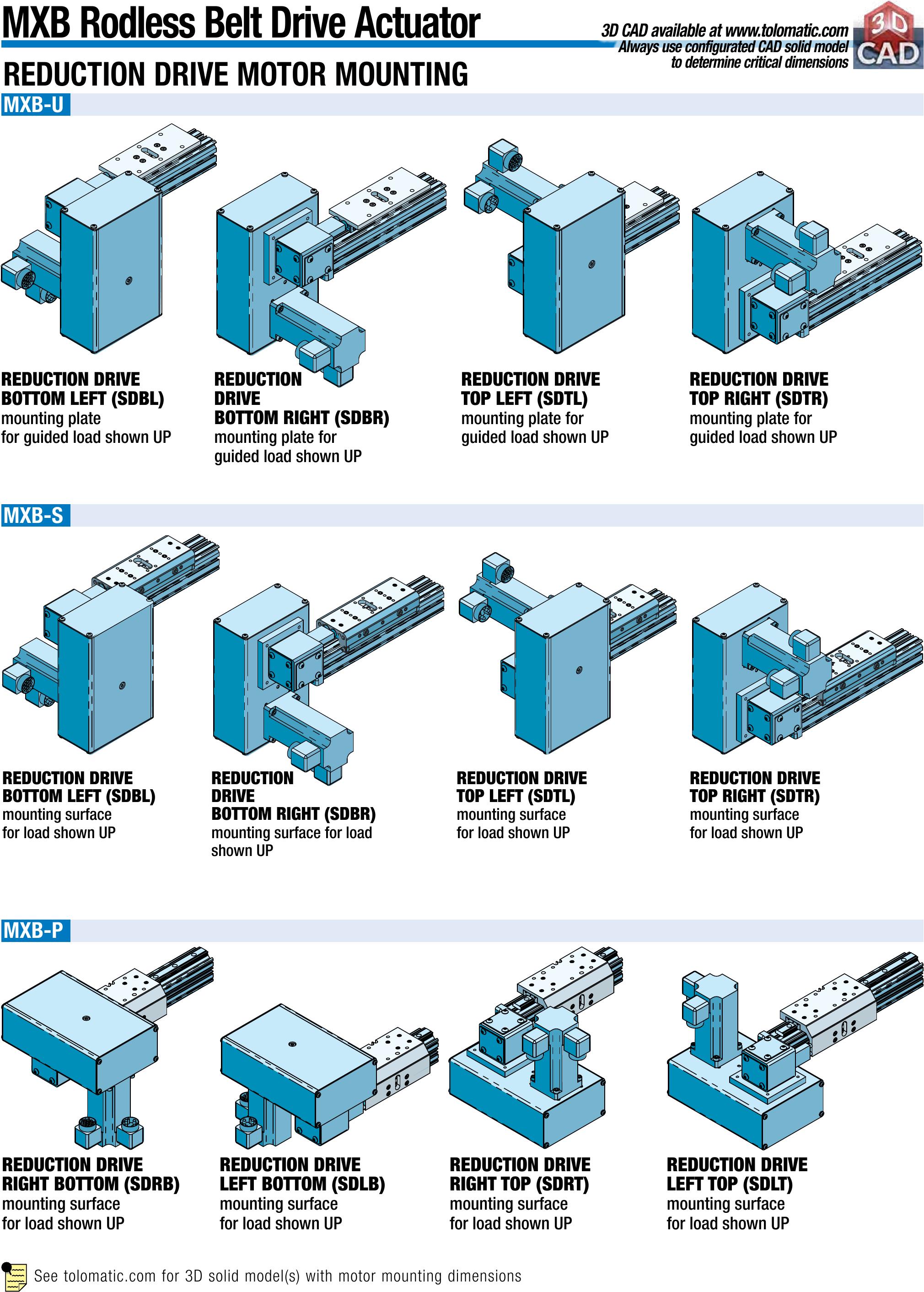

MXB-U Service Parts Ordering

View and Print

MXB-U Service Parts Ordering

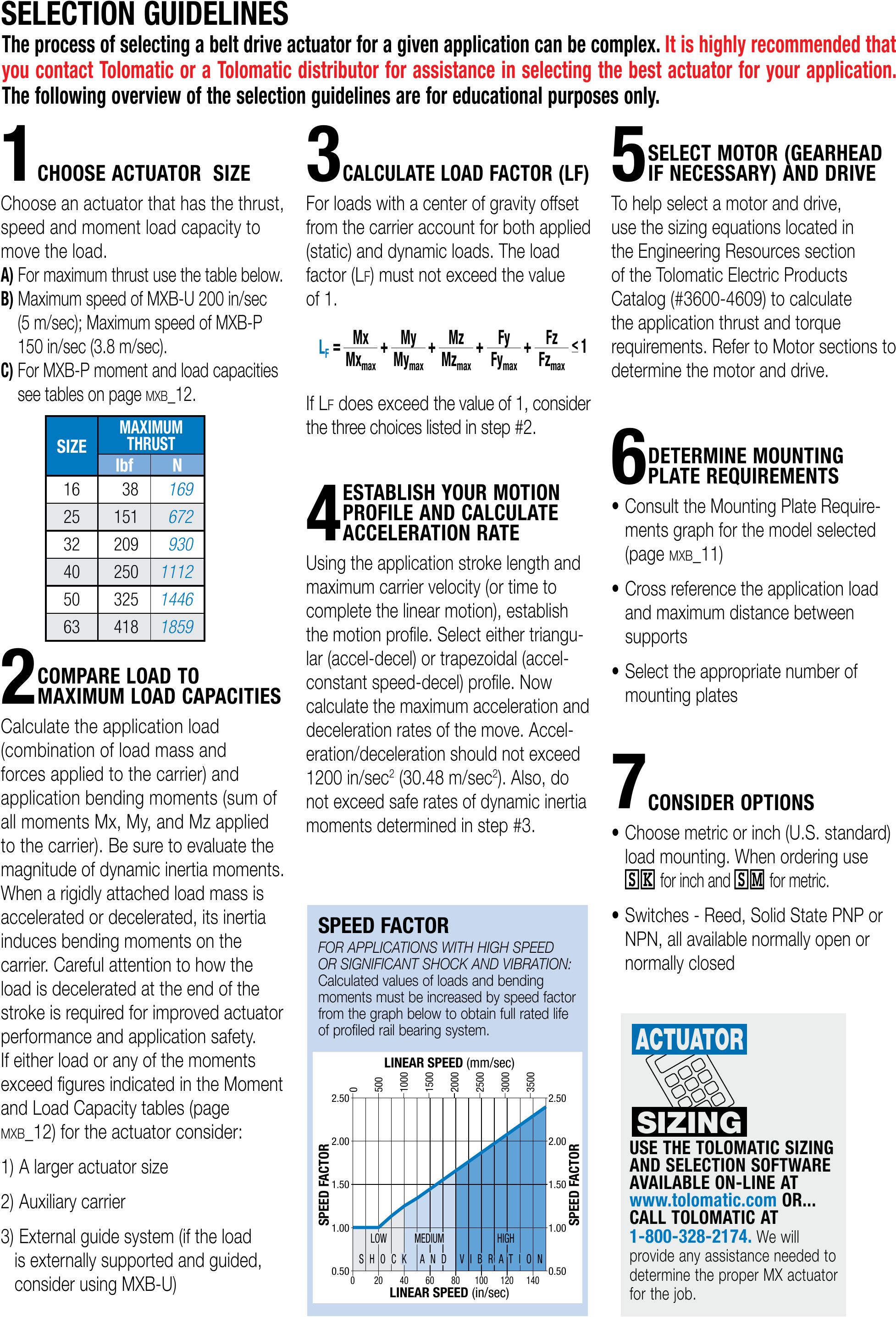

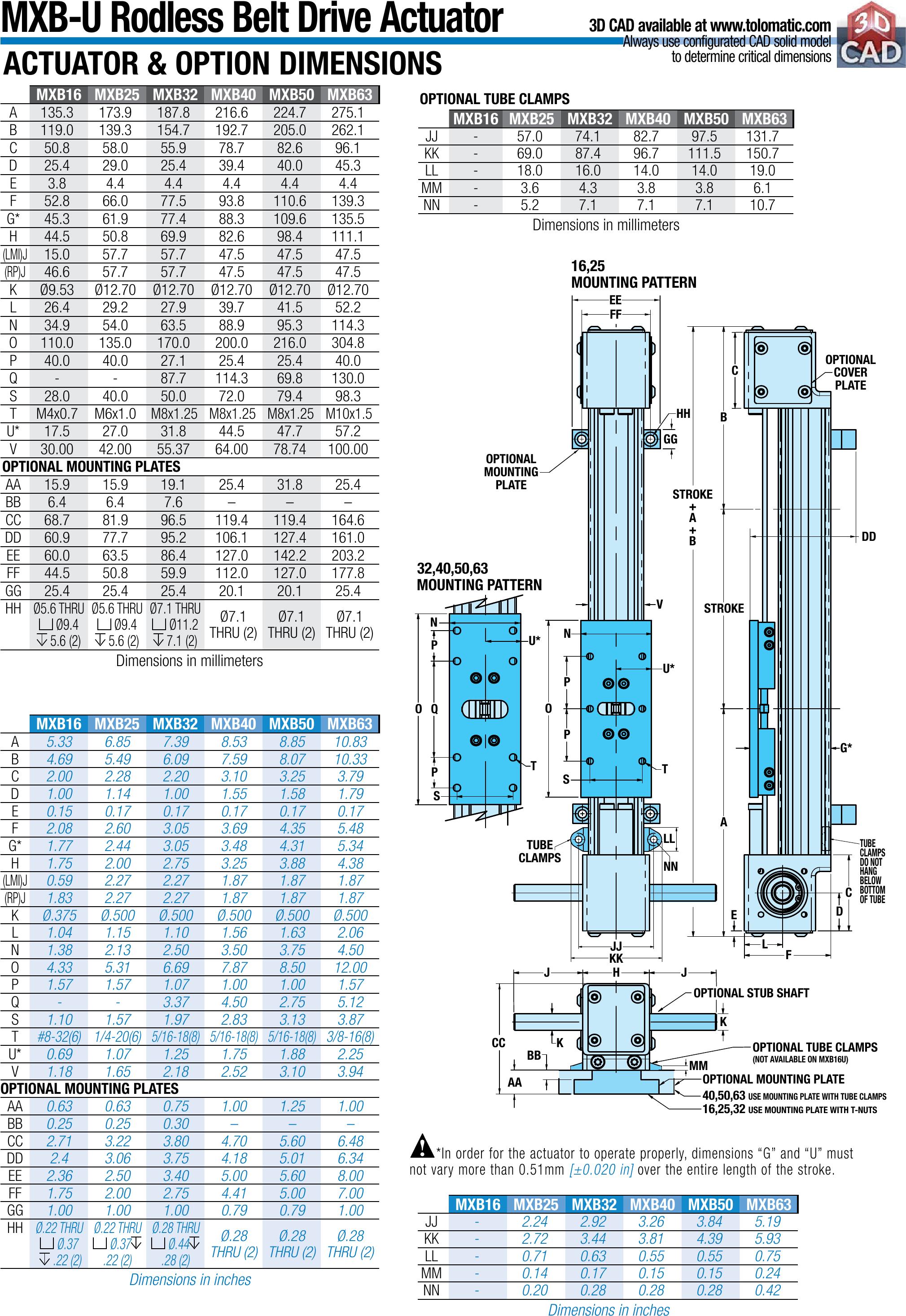

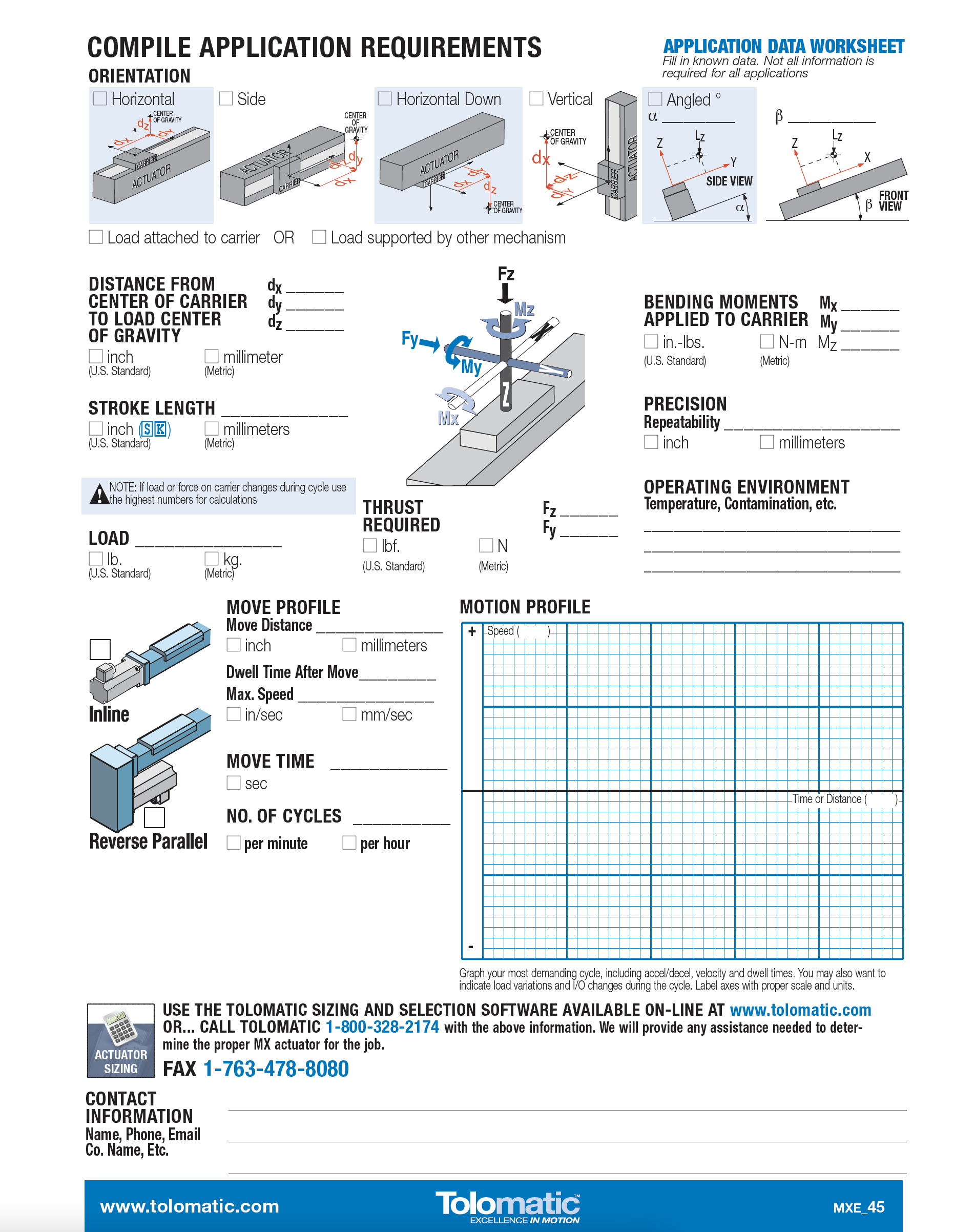

MXB-U Section Guidelines

View and Print

MXB-U Section Guidelines
