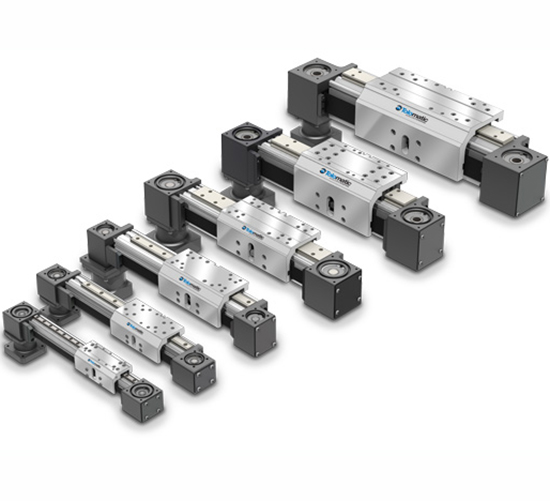

MXB-P Heavy Duty Linear Actuator

MXB-P heavy duty linear actuators with profiled rail bearing support offers high load and bending moment capacities in a low profile package.

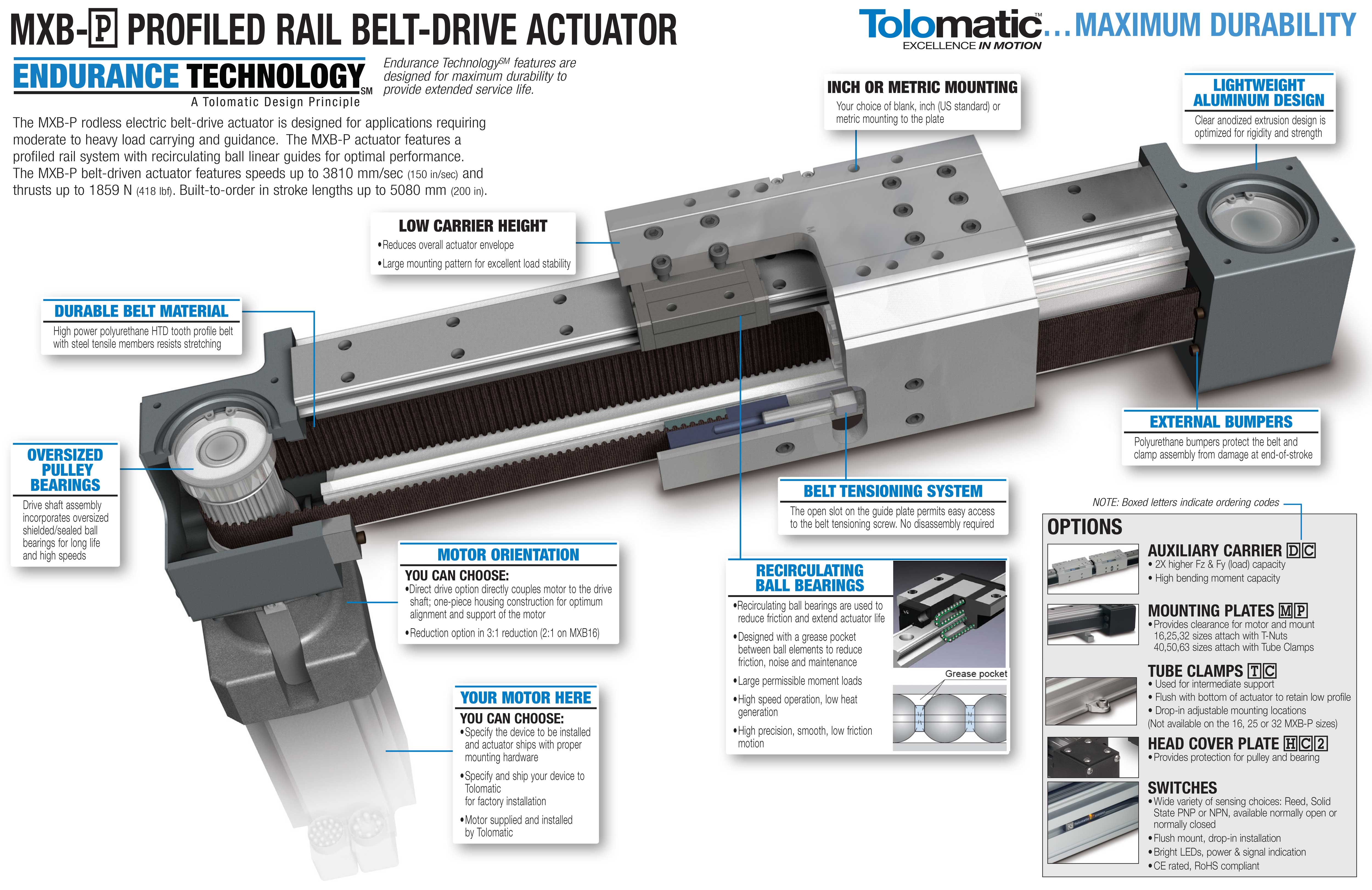

The MXB-P heavy duty linear actuator is designed for applications requiring moderate to heavy load carrying and guidance. The MXB-P actuator features a profiled rail system with recirculating ball linear guides and belt drive train for optimal performance and high speeds.

  • High speed and acceleration capabilities up to 1200 in/sec2 (30.43 m/sec2)
  • 6 body sizes accommodate a wide range of forces and loads
  • Polyurethane belt with steel members resists stretching
  • Excellent repeatability, high duty cycle performance
  • Choose MXB belt drive for longer strokes than screw drive actuators

MXB-P Heavy Duty Linear Actuator Max Stroke
Size MXB-P 16 MXB-P 25 MXB-P 32 MXB-P 40 MXB-P 50 MXB-P 63
Standard 200 in 200 in 200 in 200 in 160 in 100 in
Metric 5,080 mm 5,080 mm 5,080 mm 5,080 mm 4,064 mm 2,540 mm

MXB-P Heavy Duty Linear Actuator Max Force
Size MXB-P 16 MXB-P 25 MXB-P 32 MXB-P 40 MXB-P 50 MXB-P 63
Standard 38 lbf 151 lbf 209 lbf 250 lbf 325 lbf 418 lbf
Metric 169 N 672 N 930 N 1,112 N 1,446 N 1,859 N

MXB-P Heavy Duty Linear Actuator Max Load
Size MXB-P 16 MXB-P 25 MXB-P 32 MXB-P 40 MXB-P 50 MXB-P 63
Standard 217 lbs 449 lbs 569 lbs 736 lbs 1,014 lbs 1,292 lbs
Metric 966 kg 1,996 kg 2,531 kg 3,274 kg 4,510 kg 5,745 kg

MXB-P Heavy Duty Linear Actuator Max Speed
Size MXB-P 16 MXB-P 25 MXB-P 32 MXB-P 40 MXB-P 50 MXB-P 63
Standard 150 in/sec 150 in/sec 150 in/sec 150 in/sec 150 in/sec 150 in/sec
Metric 3,810 mm/sec 3,810 mm/sec 3,810 mm/sec 3,810 mm per sec 3,810 mm/sec 3,810 mm/sec

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

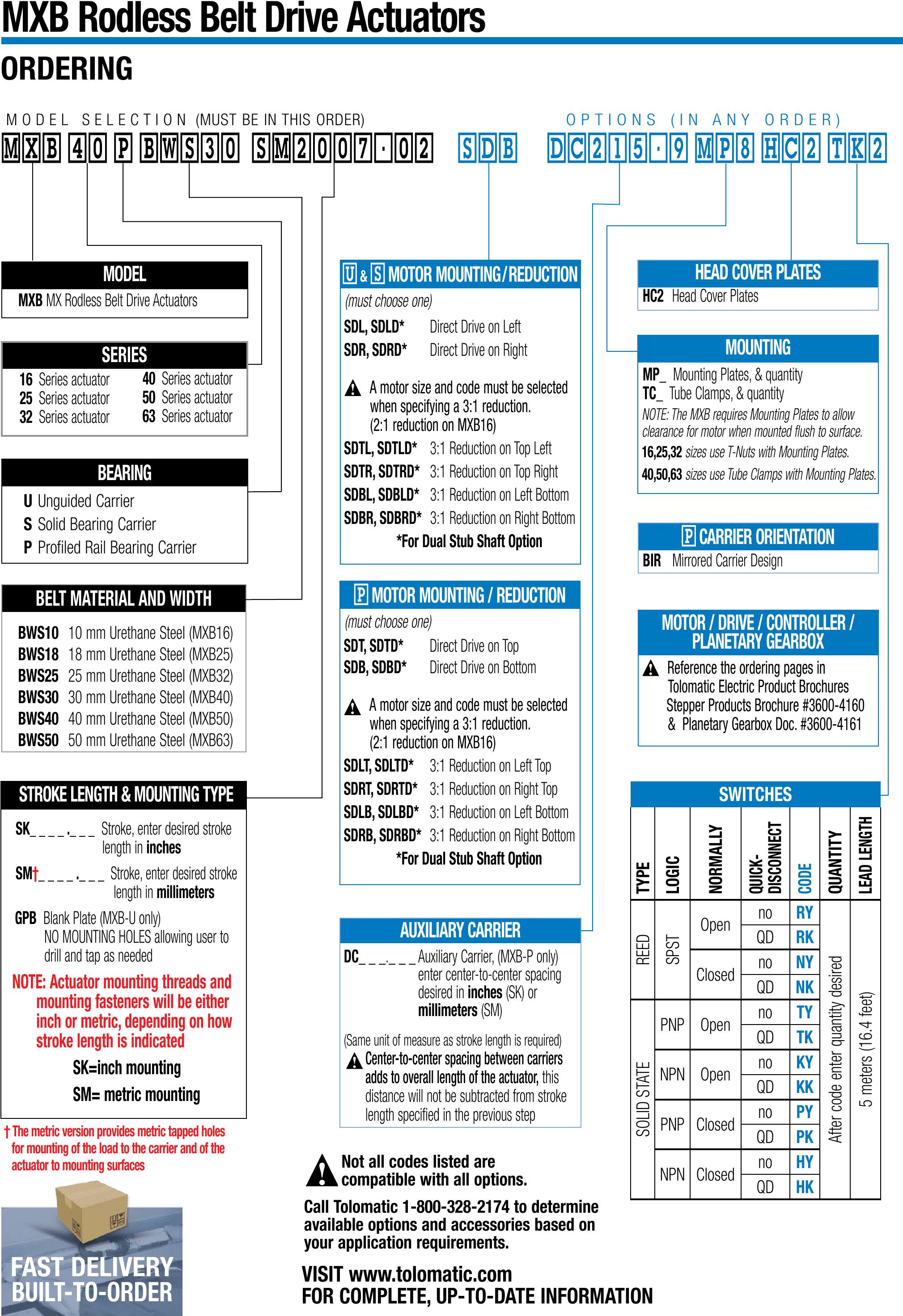

MXB-P Ordering

View and Print

MXB-P Ordering

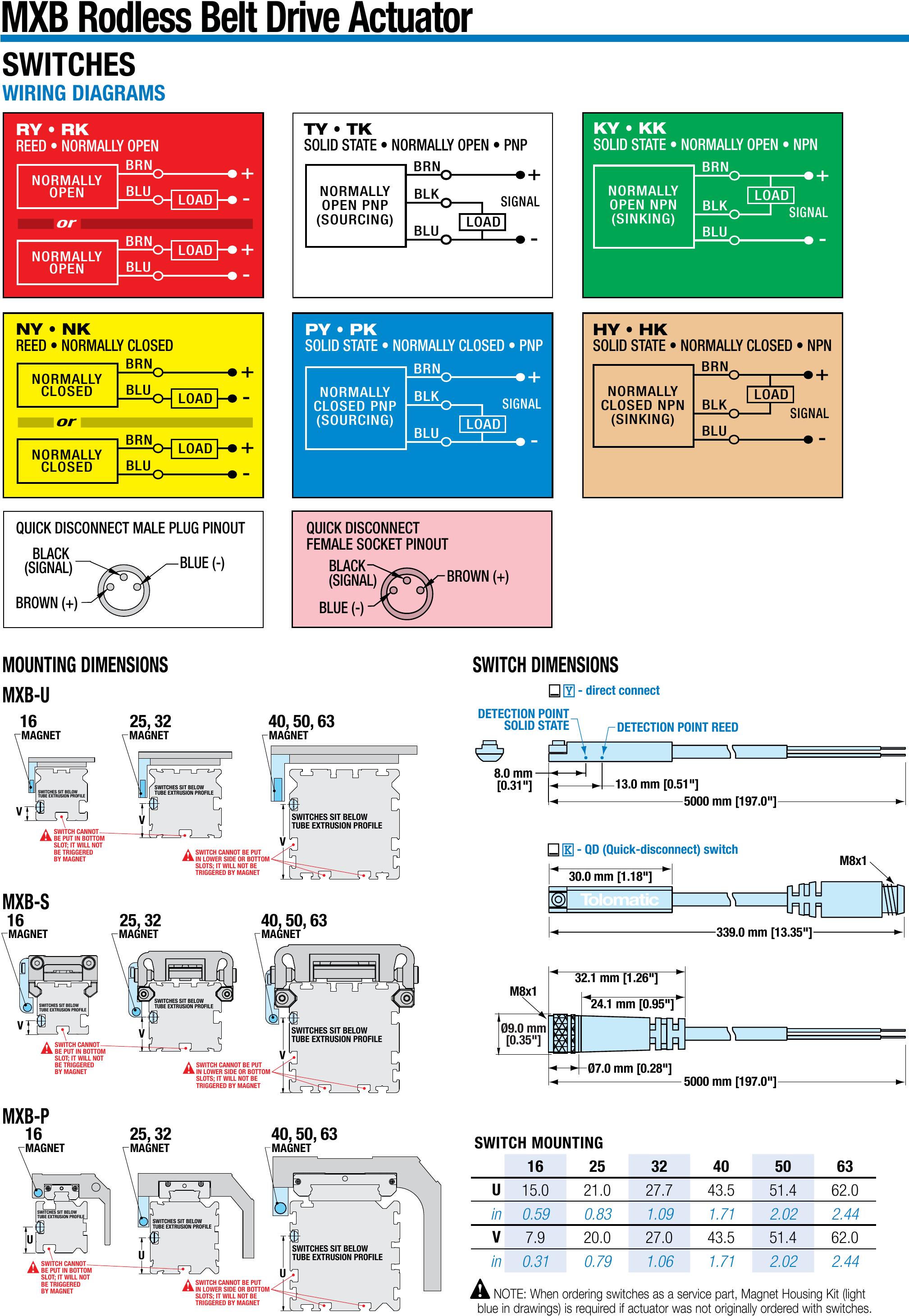

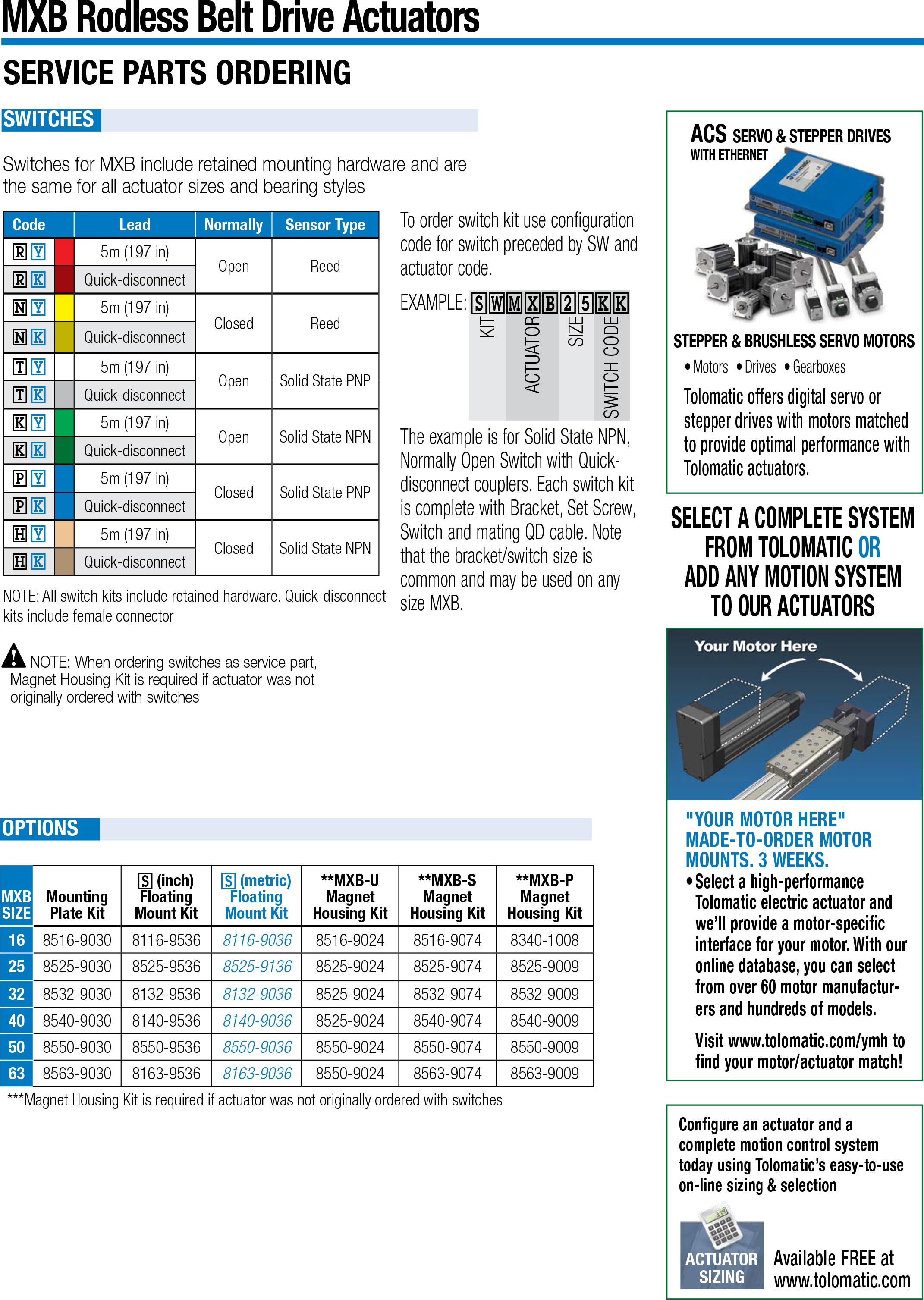

MXB-P Service Parts Ordering

View and Print

MXB-P Service Parts Ordering

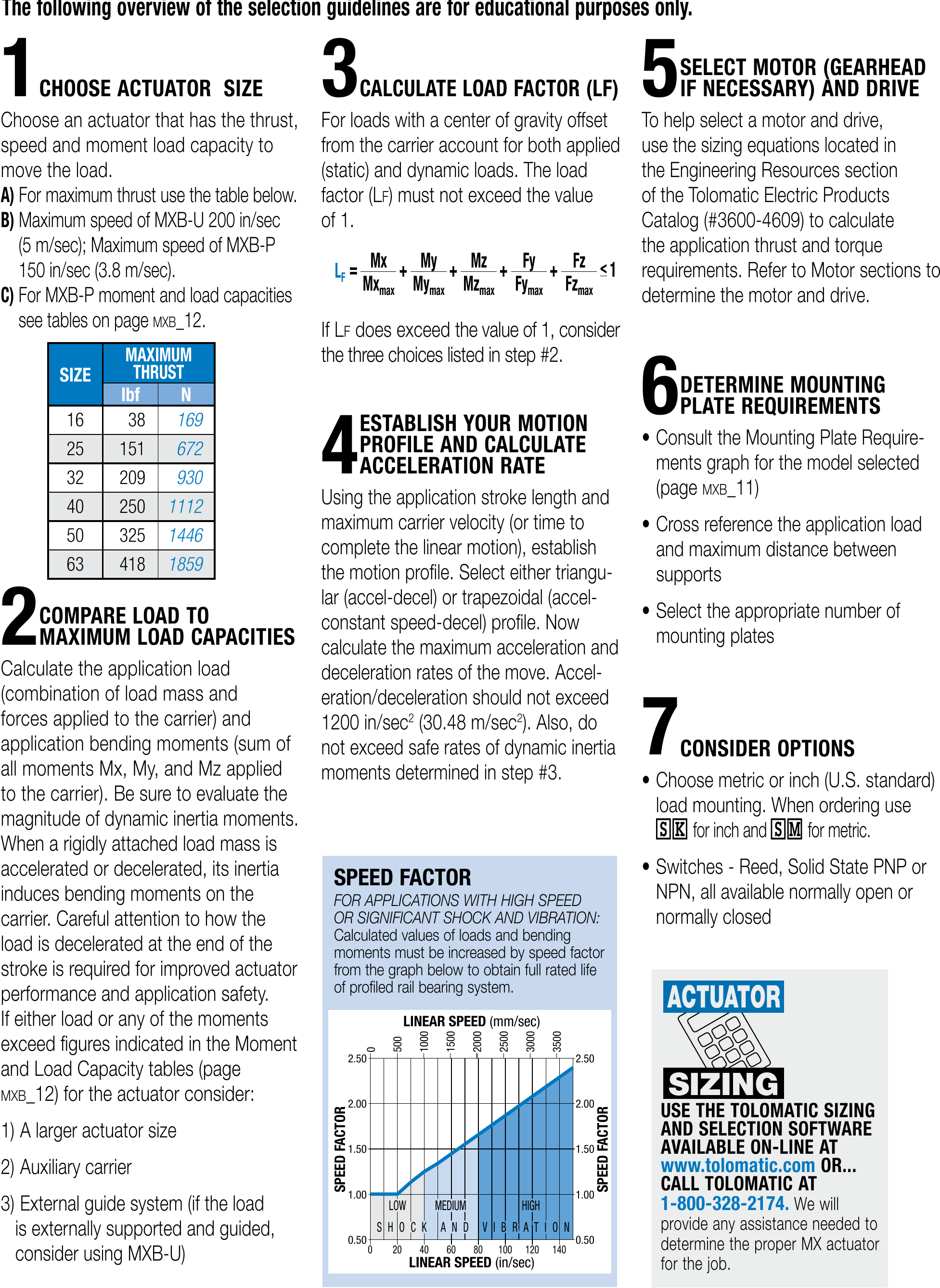

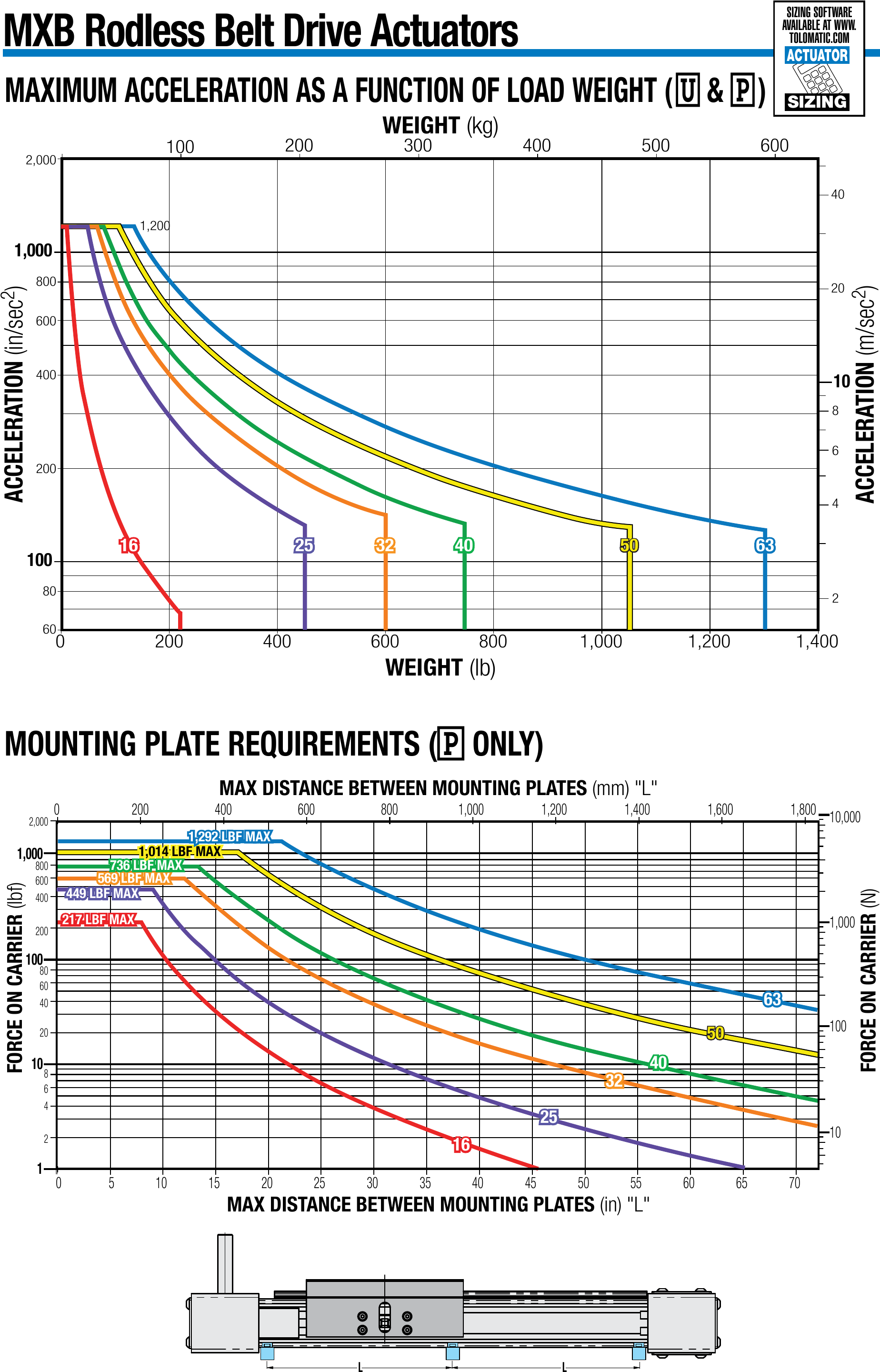

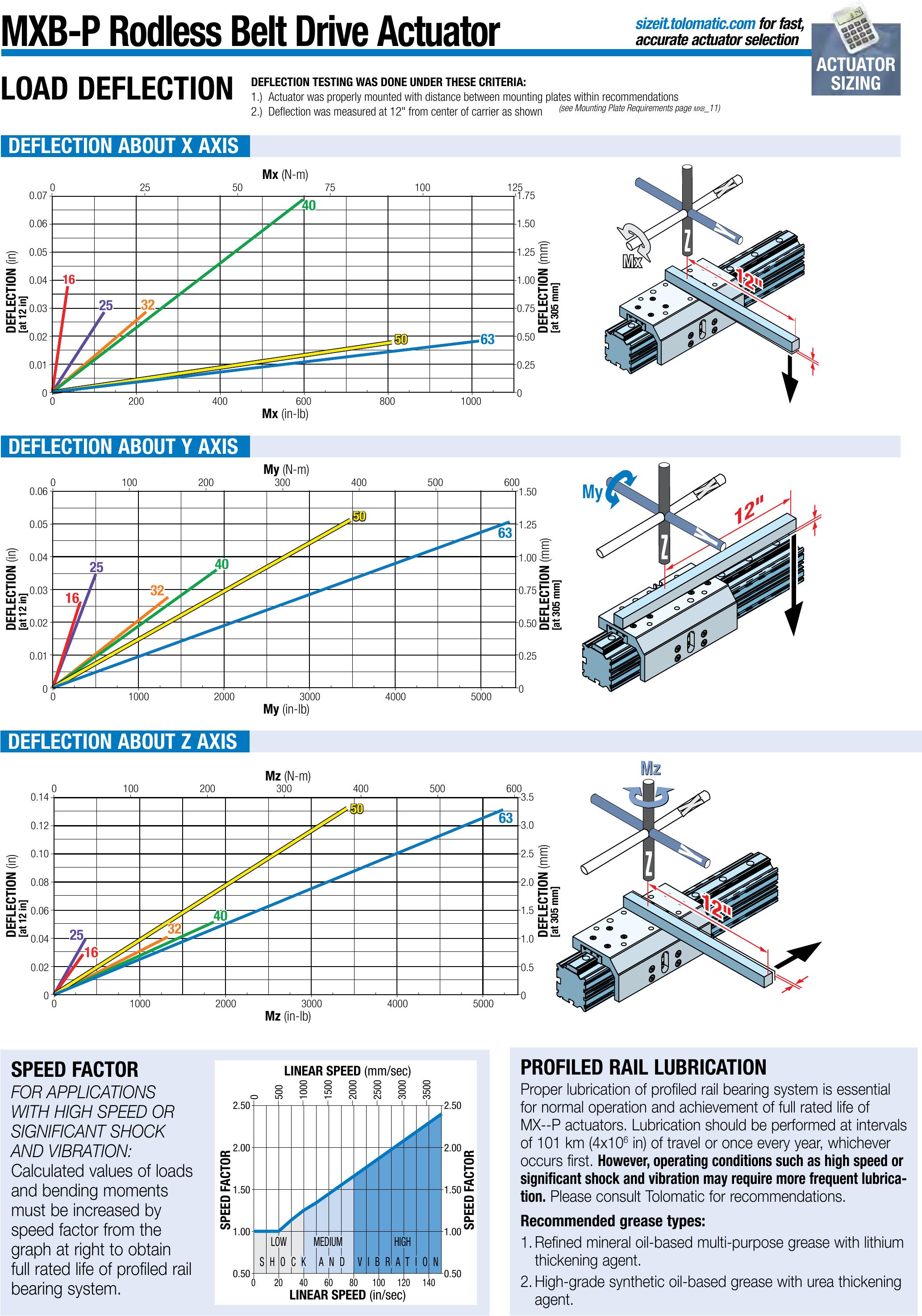

MXB-P Selection Guidelines

View and Print

MXB-P Selection Guidelines
