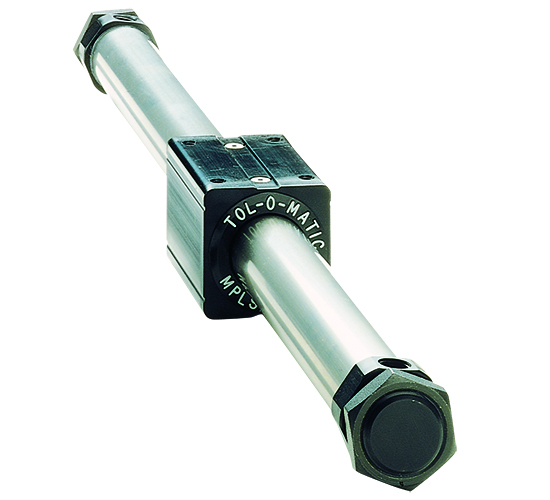

MG Magnetic Linear Cylinders

Magnetic cylinders are an excellent choice for applications with environmental concerns.

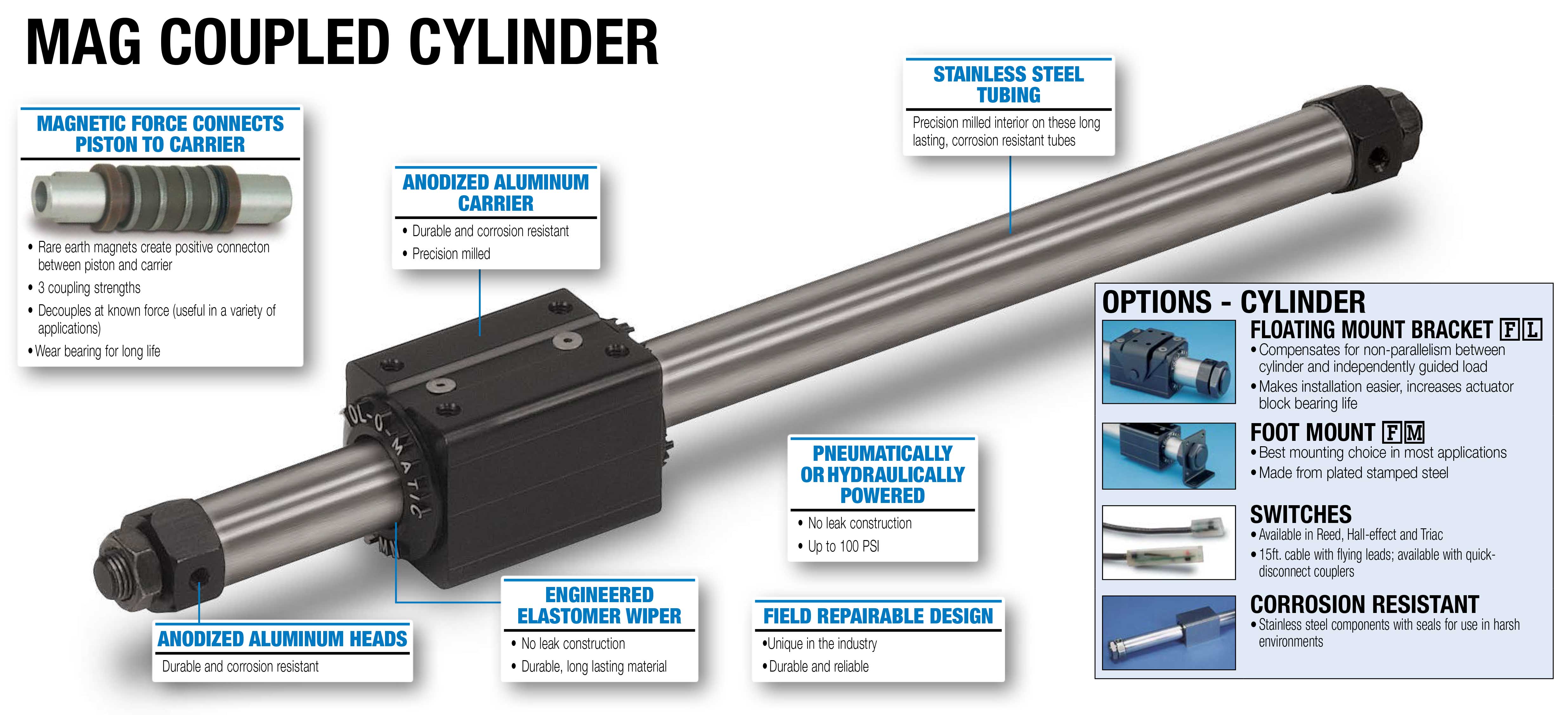

The MG magnetic linear cylinder has no mechanical connection of the carrier to the piston resulting in easy rotation of its mounting block for mounting flexibility.

  • 3 magnetic coupling strengths for a maximum of 100 lbs (45.4 kg)
  • Field repairable design minimizes downtime
  • Fully enclosed actuator body for contaminant prevention

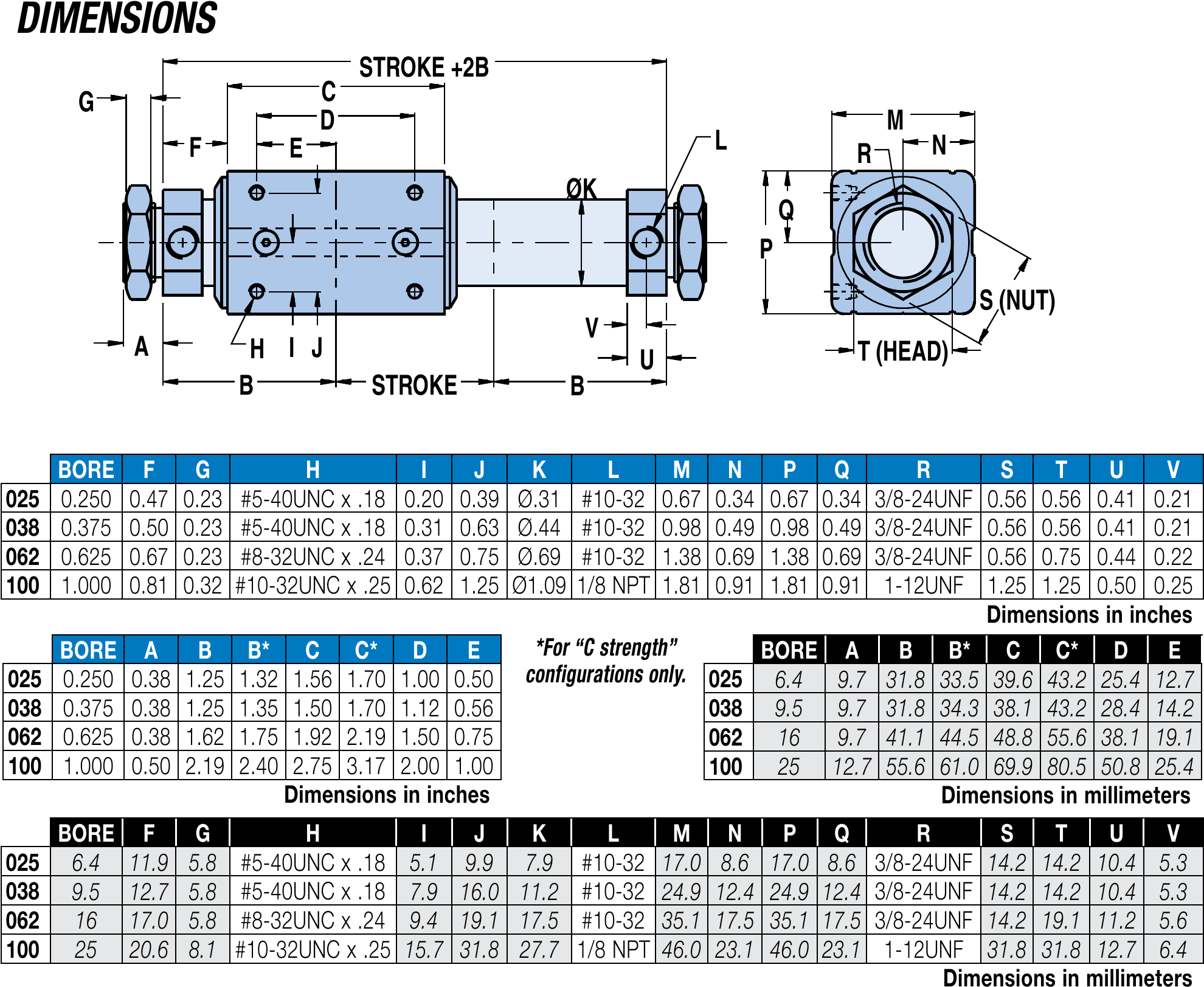

MG Magnetic Linear Cylinder Bore Size
Size MG 025 MG 038 MG 062 MG 100
Standard 0.25 in 0.38 in 0.62 in 1.00 in
Metric 6 mm 10 mm 16 mm 25 mm

MG Magnetic Linear Cylinder Max Stroke
Size MG 025 MG 038 MG 062 MG 100
Standard 26 in 32 in 80 in 80 in
Metric 660 mm 813 mm 2,032 mm 2,032 mm

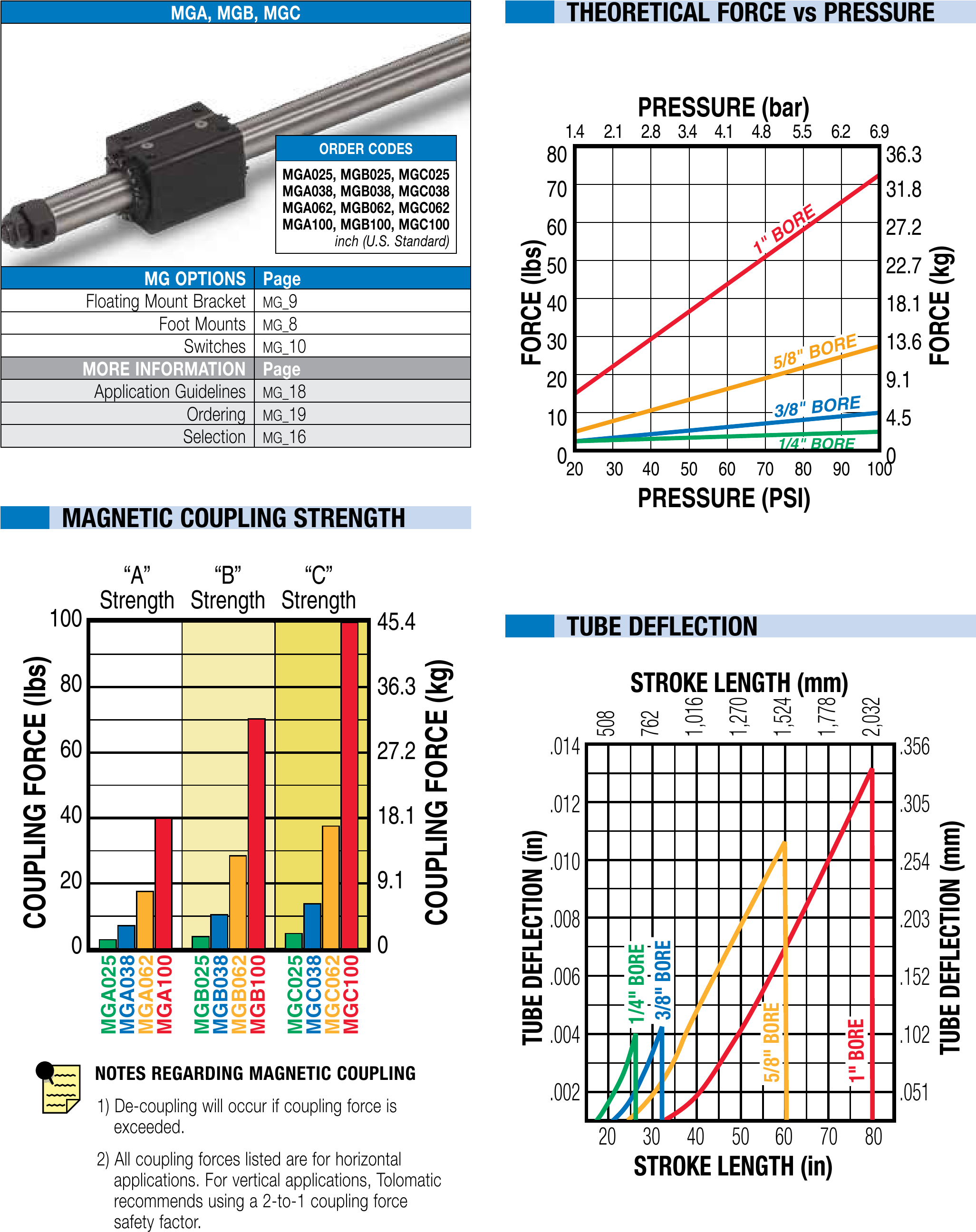

MG Magnetic Linear Cylinder Max Force
Size MG 025 MG 038 MG 062 MG 100
Standard 5 lbf 11 lbf 30 lbf 78 lbf
Metric 22 N 49 N 133 N 347 N

MG Magnetic Linear Cylinder Magnetic Strength
Size MG 025 MG 038 MG 062 MG 100
Standard 5 lb 14 lb 38 lb 100 lb
Metric 22 N 62 N 169 N 445 N

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

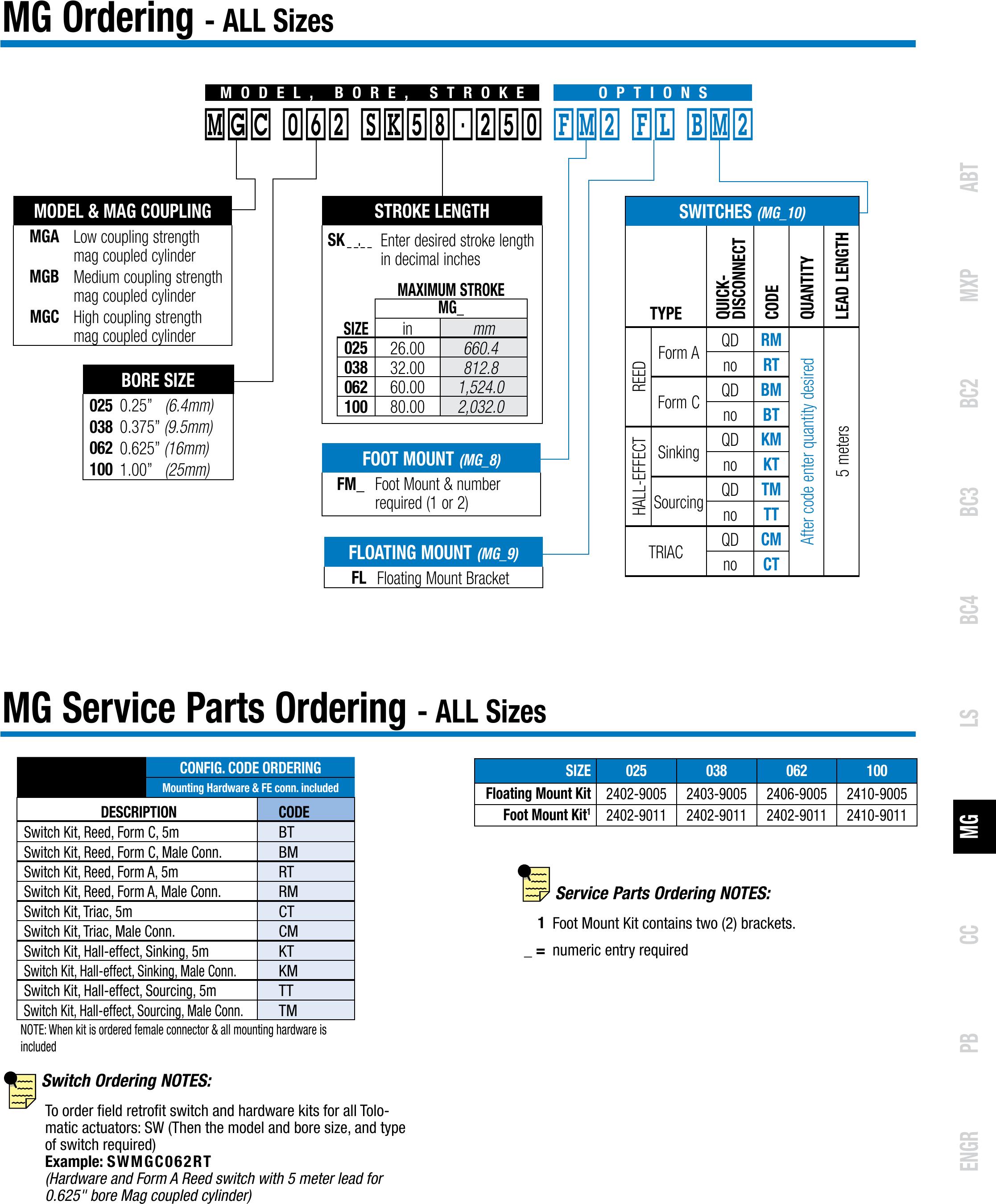

MG Ordering

View and Print

MG Ordering

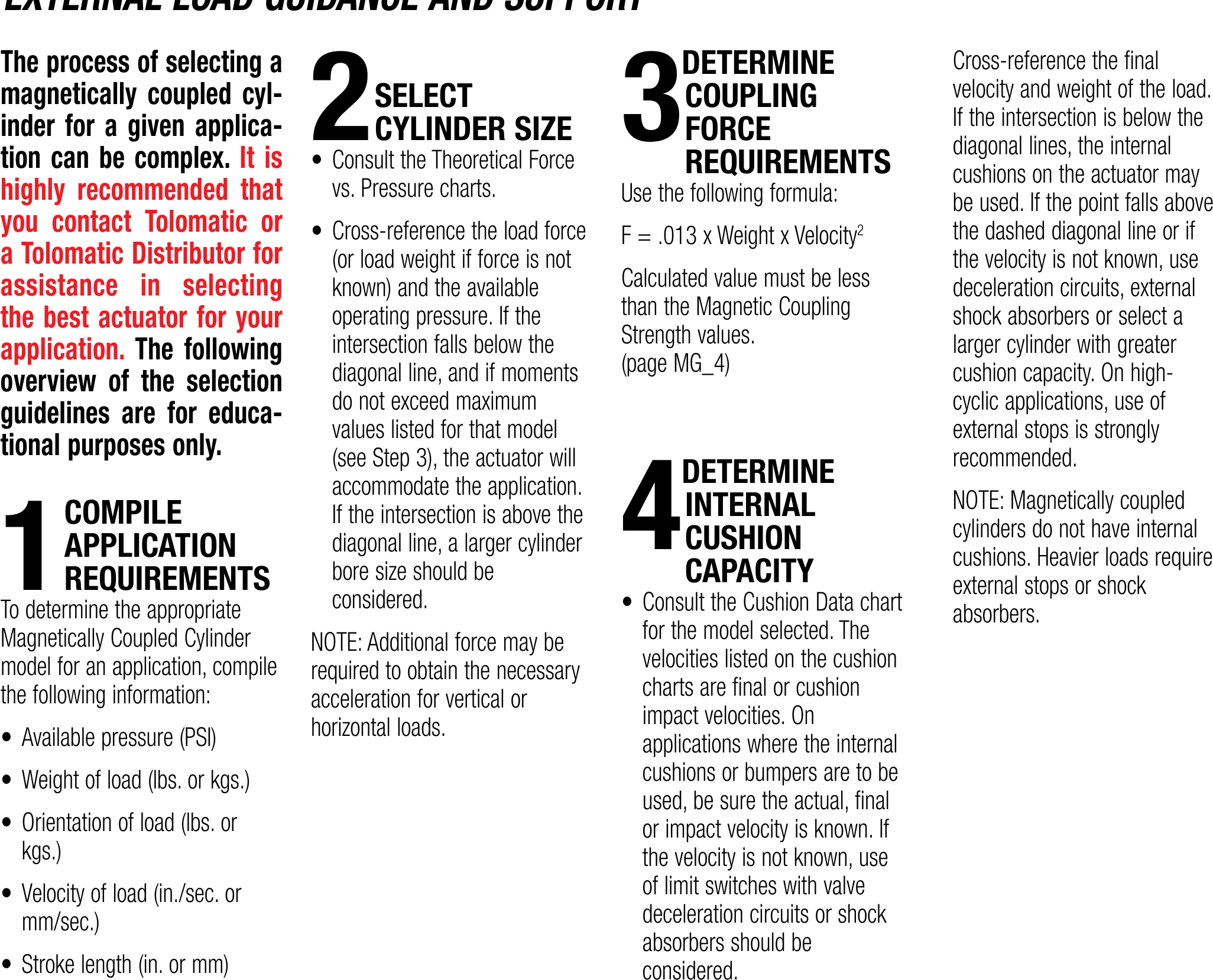

MG Selection Guidelines

View and Print

MG Selection Guidelines
