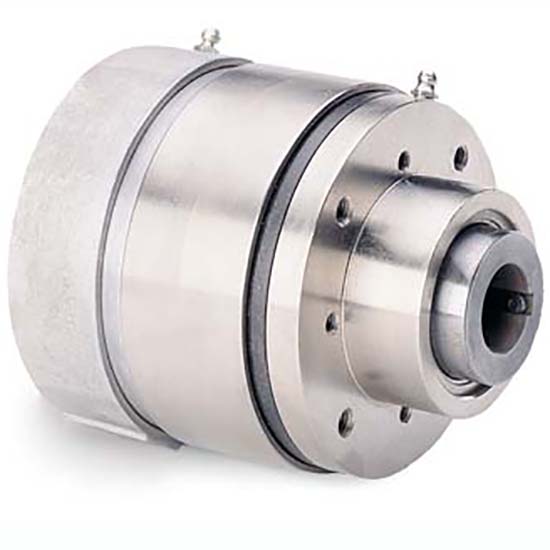

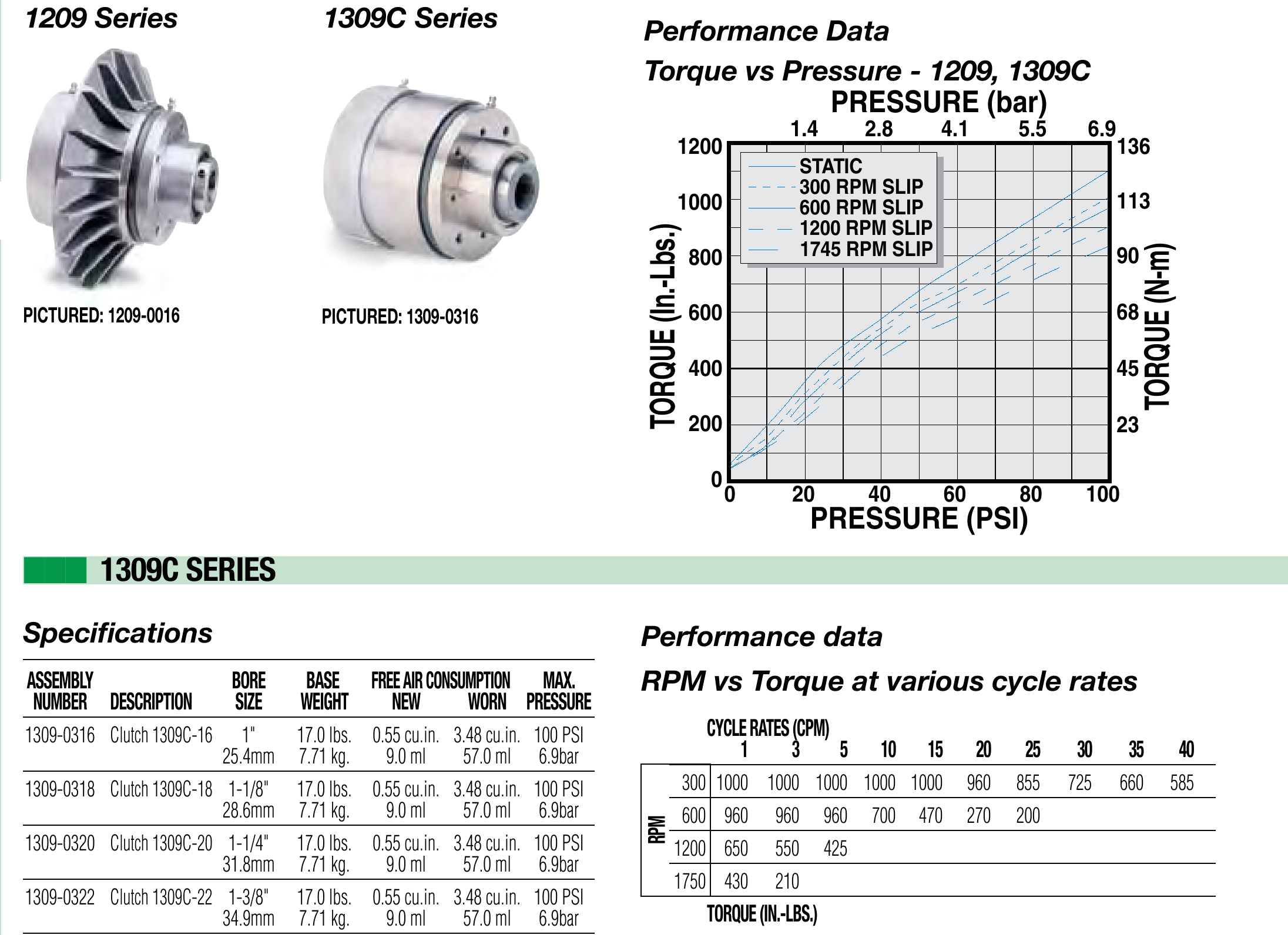

The 1309C series pneumatic cone clutch has a space-saving design that offers torque ranges from 210 to 1000 in-lbs (23.7 to 113 Nm) depending on cycle rate and RPMs.

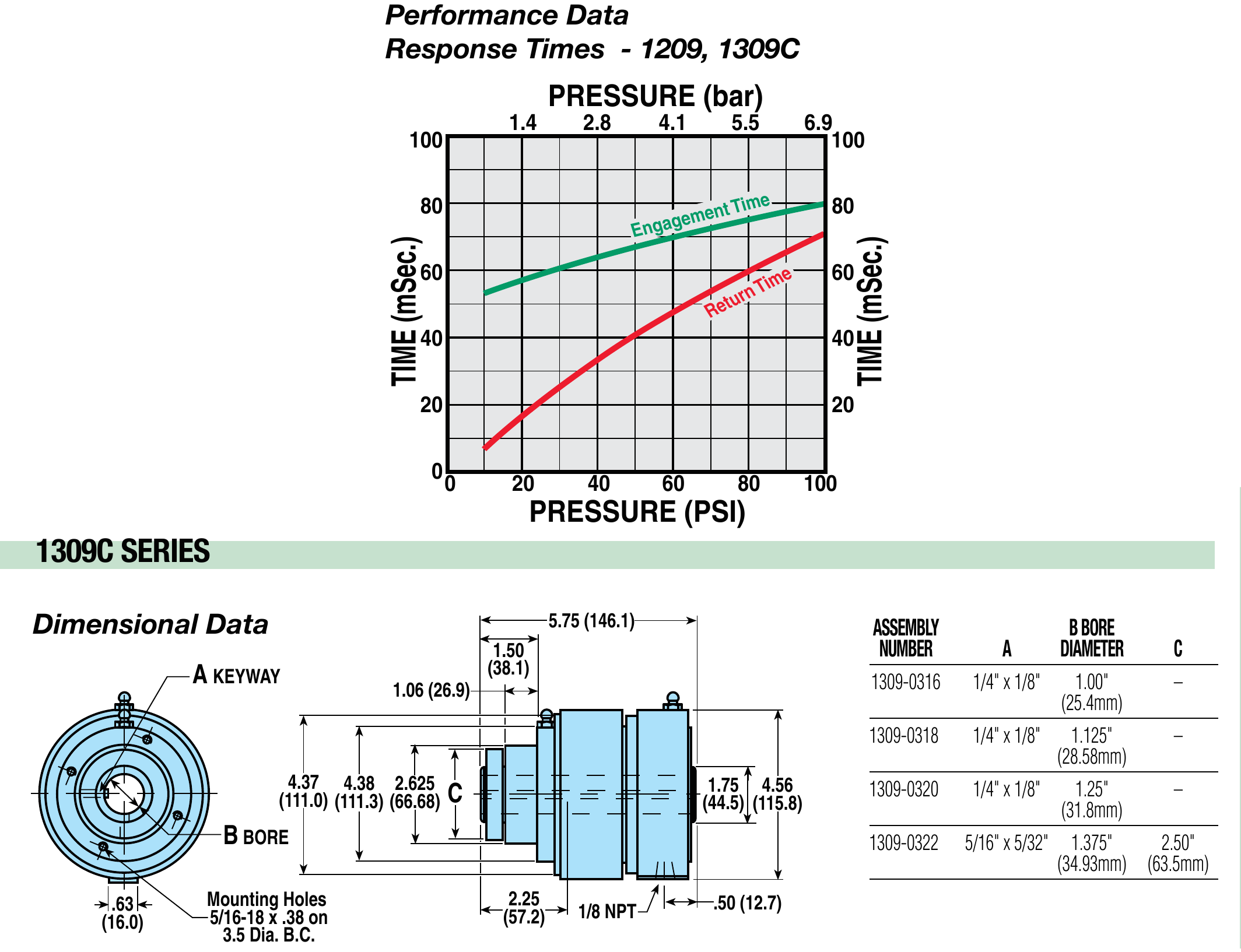

• 1-, 1-1/8-, 1-1/4-, and 1-3/8-inch bore sizes (25.4, 28.6, 31.8 and 34.9 mm)
• High torque with no slippage
• Fast response based on low air consumption
