1307D Series Pneumatic Cone Clutches

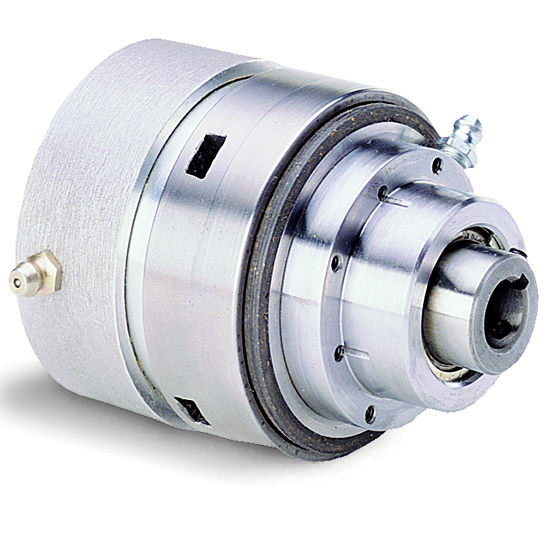

1307D Disc Cone Clutch

1307D Series Pneumatic Cone Clutches

The 1307D series pneumatic cone clutch has a space-saving design that offers high torque in lower cyclic applications.

  • 1/2- and 5/8-inch bore sizes (12.7 and 15.9 mm)
  • High torque with no slippage
  • Fast response based on low air consumption
