1208 Series Pneumatic Cone Clutches

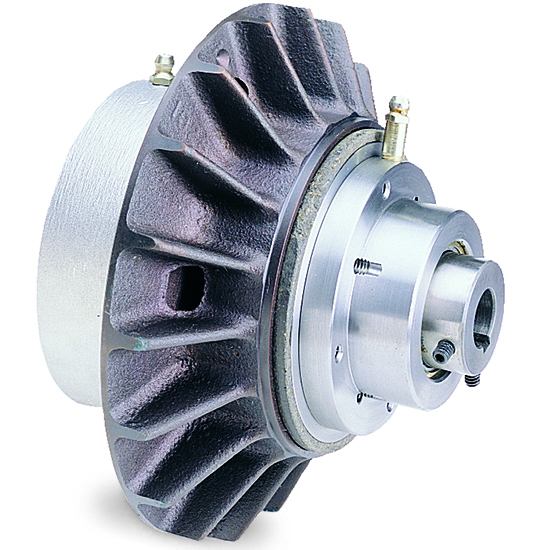

1208 Disc Cone Clutch

1208 Series Pneumatic Cone Clutches

The 1208 series pneumatic cone clutch offers 10 times the heat dissapation as the 1308 series cone clutches with up to 750 BTU/hour at 1800 RPMs.

  • 5/8-, 3/4- and 7/8-inch bore sizes (15.9, 19.1 and 22.2 mm)
  • High torque with no slippage
  • Fast response based on low air consumption
